Overview

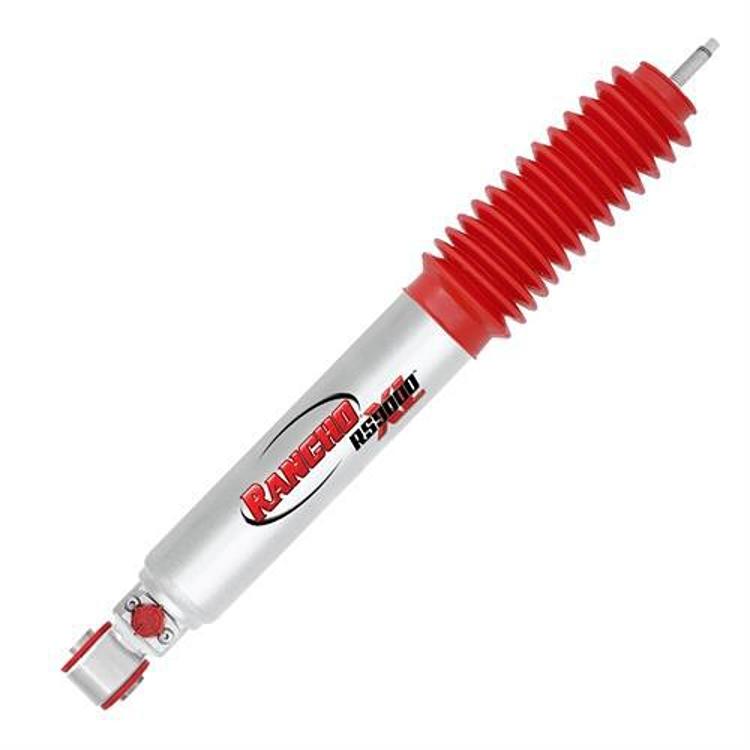

The Rancho RS999042 is a front shock in the RS9000XL Series, labeled Direct Fit and listed at 0 in. lift/drop. It is a nitrogen gas charged shock with an 18mm chrome piston rod, aimed at big trucks.
The 9-position manual or remote myRide tuning lets you adjust the ride. The shock also has a 2.75 in. body, red urethane bushings and a protective boot. A limited lifetime warranty applies to it.
Key features
- Front position
- 9-position manual or remote tuning through myRide
- 18mm chrome piston rod
- 2.75 in. body diameter with liquid metallic finish
- Red urethane bushings
- Protective boot included
Tuning and bushing care
Adjustable damping is most useful when the setting matches how the truck is used. A firmer setting helps control body motion when loaded, while a softer one smooths small bumps on pavement. Change one step at a time and test on a familiar road so the effect is easy to judge.
Red urethane bushings are firmer than rubber and can squeak if they are not lubricated or if the mounting bolt is loose. Check the bushings at each service and replace any that show cracking or looseness. Keep the mounting bolts tightened to the vehicle’s specification.
The protective boot keeps grit off the piston rod and seal. After mud or water crossings, rinse it and look for splits. A damaged boot lets dirt into the shock, which can shorten its life. Note any oil on the body, since that can show the seal is failing.
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS999042 |
| UPC | 10039703090428 |
| Series | RS9000XL Series |
| Position | Front |
| Lift/drop | 0 in. |
| Body diameter | 2.75 in. |
| Piston rod | 18mm chrome |
| Charge type | Gas charged |
| Bushings | Red urethane |
| Finish | Liquid metallic |
| Warranty | Limited lifetime (per Rancho) |
| Fitment label | Direct Fit |
Vehicle fitment
This is a Direct Fit front unit, which still needs a confirmed application. Confirm coverage for your truck’s make, model, year and chassis before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The protective boot is the included item named. No other hardware is described.
