Overview

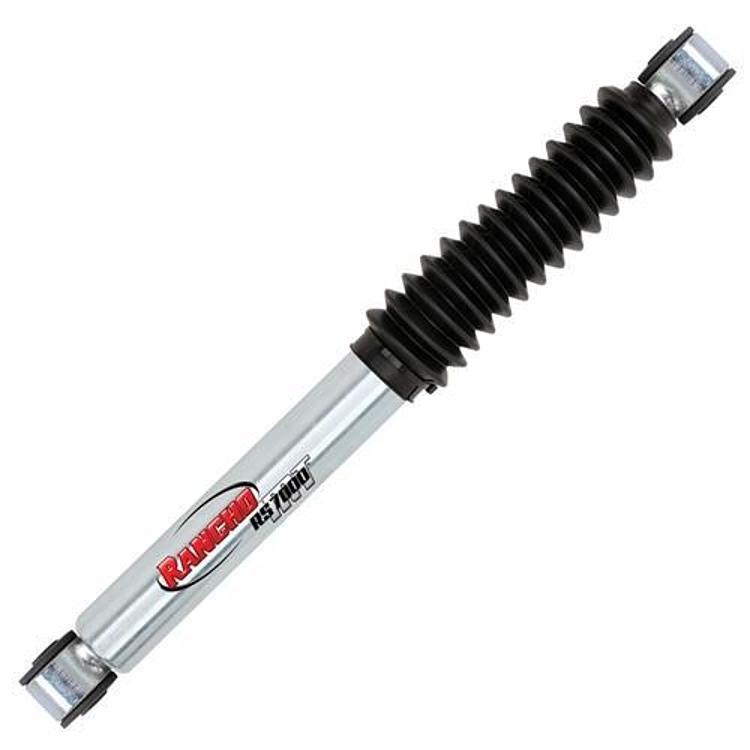

The Rancho RS7274 is a rear RS7000MT Series monotube gas-charged shock absorber. Rancho built the series for off-road use, with ten stage velocity-sensitive valving that reacts to trail obstacles.
The gas-charged monotube design helps dissipate heat and reduce fade, with damping tuned for both ride quality and control.
Key features
- Ten stage velocity-sensitive valving
- Gas-charged monotube design
- 14mm chrome rod
- 1.97 inch (50mm) body diameter
- Black natural rubber bushings
- Brushed-zinc clear coated finish
- Protective boot included
Verifying fit before purchase
Fit for a replacement shock depends on more than the position. Measure the shock eye to eye at ride height and the fully compressed length, then compare those dimensions with the old shock. Stroke, body diameter and mounting style all affect whether a shock will seat without binding.
Check the mounting hardware and bushing sizes before ordering, since they can differ between trims and model years. Pull the old shock and look at the mount design, then match the new unit to that style. Keep the old shock on hand until the new one is confirmed to fit.
For a rear shock, check that both upper and lower mounts line up with the frame and axle brackets, and that the boot does not rub against nearby parts at full travel.
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS7274 |
| UPC | 39703002264 |
| Series | RS7000MT Series |
| Position | Rear |
| Fitment type | Direct fit |
| Lift | w/0 – 4 in. lift |
| Design | Monotube, gas charged |
| Valving | Ten stage velocity-sensitive |
| Rod | 14mm chrome |
| Body diameter | 1.97 inch (50mm) |
| Bushings | Black natural rubber |
| Finish | Brushed-zinc clear coated |
| Made in | America |
Vehicle fitment
The RS7274 is a rear shock with a 0 to 4 in. lift range.
Confirm fit for your vehicle’s year, make, model and trim before ordering.
Installation notes
Gas-charged shocks are pressurized, so wear eye protection and do not heat or puncture the body when removing the old unit. Compare the mounts with the old shock before installing.
What’s included
The key features name a protective boot as included. No other accessories are described.
