Overview
The Rancho RS5214 is a front gas-charged RS5000 Series shock absorber that fits several Acura, Honda, Isuzu and Nissan models from 1987 to 2002. It has a w/0 in. Lift/Drop rating and is a direct fit.
Sold as one shock, it pairs ten-stage velocity sensitive valving with a 5/8-in. (16mm) piston rod and a 1 3/8-in. (35mm) piston, and a red protective boot comes with it. The RS5000 Series is a high-performance light truck shock with a limited lifetime warranty.
Key features
- Front-position, gas-charged shock
- Ten-stage velocity sensitive valving
- 5/8-in. (16mm) diameter piston rod
- 1 3/8-in. (35mm) diameter piston
- Red protective boot included
- Lift rating of w/0 in. Lift/Drop
Front shock care
Front shocks do more than control bounce. They help keep the tires in contact with the road during braking and steering, so wear shows up as light steering, wheel hop over washboard or a nose that dives hard in stops. Look at the upper and lower mounts, the boot and the body for oil. A damaged boot lets grit reach the rod and speeds seal wear.
Front shocks are often replaced with steering and suspension bushings, tie rod ends and ball joints in mind, since worn parts can make a new shock feel loose. Keep the boot clean and avoid high-pressure washing directly at the shaft. Replacing both front units together keeps damping even across the axle.
- Check upper and lower mounting bolts
- Look for oil on the body
- Inspect the boot for cracks
- Test steering play before and after replacement
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS5214 |
| UPC | 10039703521403 |
| Series | RS5000 Series |
| Position | Front |
| Fitment type | Direct Fit |
| Hydraulic / gas charged | Gas charged |
| Valving | Ten-stage velocity sensitive |
| Piston rod diameter | 5/8-in. (16mm) |
| Piston diameter | 1 3/8-in. (35mm) |
| Lift rating | w/0 in. Lift/Drop |
| Boot | Red protective boot, included |
| Sold as | Each |
| Warranty | Limited lifetime (Rancho) |
Vehicle fitment
The manufacturer fitment list covers these vehicles for the RS5214:
- 1996–1999 Acura SLX (Base, Premium)
- 1994–1995 Honda Passport (DX, EX, LX)
- 1989–1994 Isuzu Amigo (S, XS)
- 1989–1995 Isuzu Pickup (LS, S, XS)
- 1991 Isuzu Pickup 1 Ton
- 1991–1995 Isuzu Rodeo (LS, S, XS)
- 1989–2002 Isuzu Trooper (LS, Limited, Ltd, RS, S, SE, XS)
- 1999–2001 Isuzu VehiCROSS (Base)
- 1987–1995 Nissan Pathfinder (E, LE, SE, XE)
Honda Passport years before 1994, Isuzu Pickup years outside 1989–1995 apart from the 1991 1 Ton, and other models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included

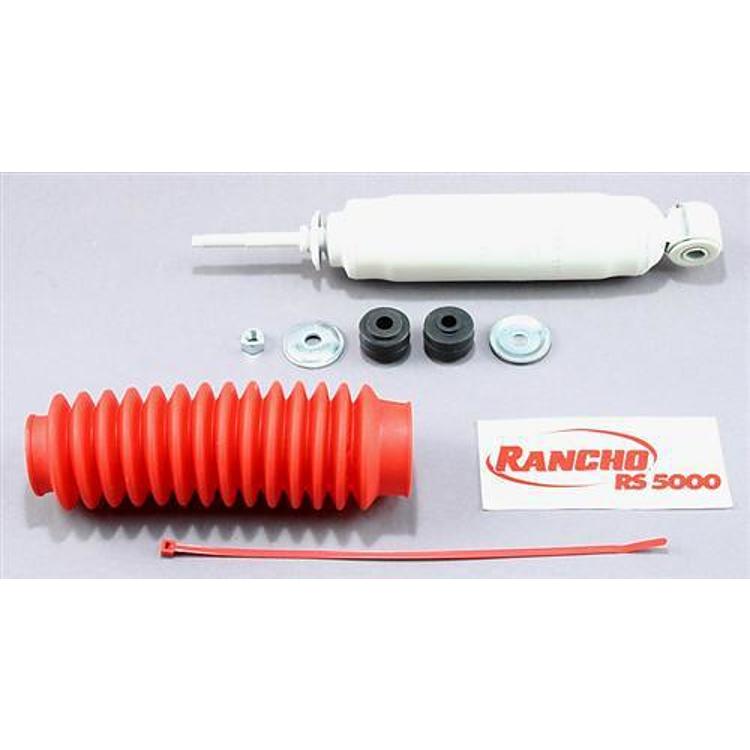

One RS5214 front shock absorber, sold as each, with a red protective boot included. Check the package contents against your installation before starting.
