Overview

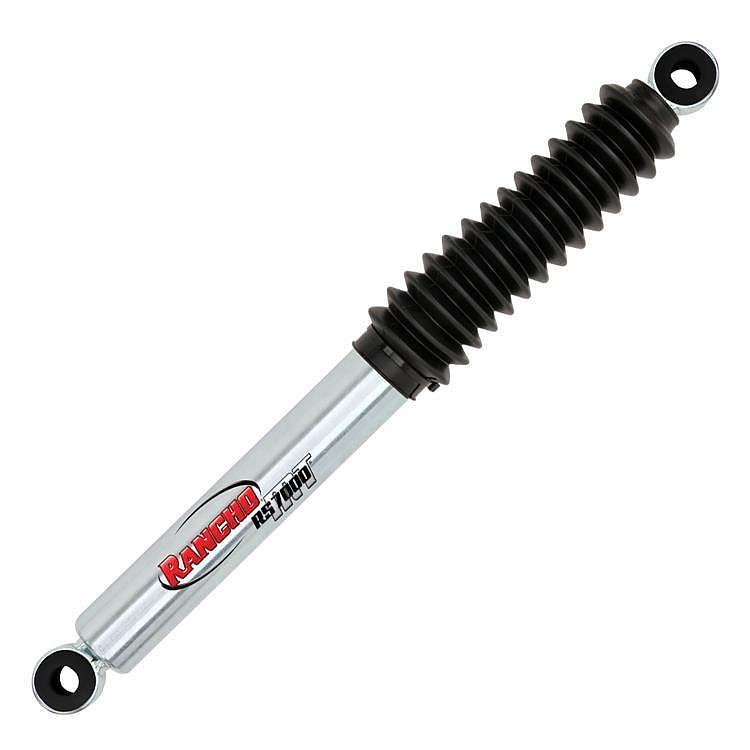

The Rancho RS7118 is a rear monotube shock from the RS7000MT Series, a gas-charged damper for off-road vehicles with a lift. It is rated for a 2 – 4 in. lift and is a direct fit.
The high-pressure gas charge helps dissipate heat, which means less fade and strong damping efficiency. The ten stage velocity-sensitive valving adjusts damping to how quickly the wheel moves over uneven ground. The body is finished in brushed-zinc clear coat and is made in America.
Key features
- Gas charged monotube body for heat dissipation
- Ten stage velocity-sensitive valving
- Black natural rubber bushings
- 14mm chrome rod
- Brushed-zinc clear coated finish
- Protective boot included
Lift height and rear damping
Rear shocks carry more of the load as lift increases, because the axle sits at a different angle and the springs are working at a new height. A shock sized for a 2 – 4 in. lift range is meant to control that extra movement without bottoming out.
If the truck has been lifted with longer springs, the rear shocks may need to be checked for length and mounting position as well. Mismatched geometry can cause binding at full extension, so measure the installed length before ordering.
Consider replacing both rear shocks together to keep the rear end balanced. Signs of wear include oil on the body, a bouncing rear end after dips, and a clunk over bumps when the shock has lost damping. Keep tires at the correct pressure, since an underinflated tire can make the rear end feel softer than the shock alone.
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS7118 |
| UPC | 39703711807 |
| Series | RS7000MT Series |
| Shock type | Monotube, gas charged |
| Position | Rear |
| Body diameter | 1.97 inch (50mm) |
| Rod | 14mm chrome |
| Valving | Ten stage, velocity-sensitive |
| Bushings | Black natural rubber |
| Finish | Brushed-zinc clear coated |
| Lift height rating | 2 – 4 in. Lift |
| Fitment type | Direct fit |
Vehicle fitment
Fitment for this shock is set by its direct fit rating and the 2 – 4 in. lift range. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Check that your suspension falls within the 2 – 4 in. lift range before fitting the rear shock. Check the package contents against your installation before starting.
