Rancho 4.5 Inch Radius Arm Lift Kit – RS66453B

Rancho

Shop Ram 2500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rancho RS66453B 4.5-inch competition radius arm kit for the Ram 2500 4WD diesel
  • Longer radius arms with adjustment tabs for factory cam bolts
  • Designed to work with the factory electronic stability system

Description

Overview

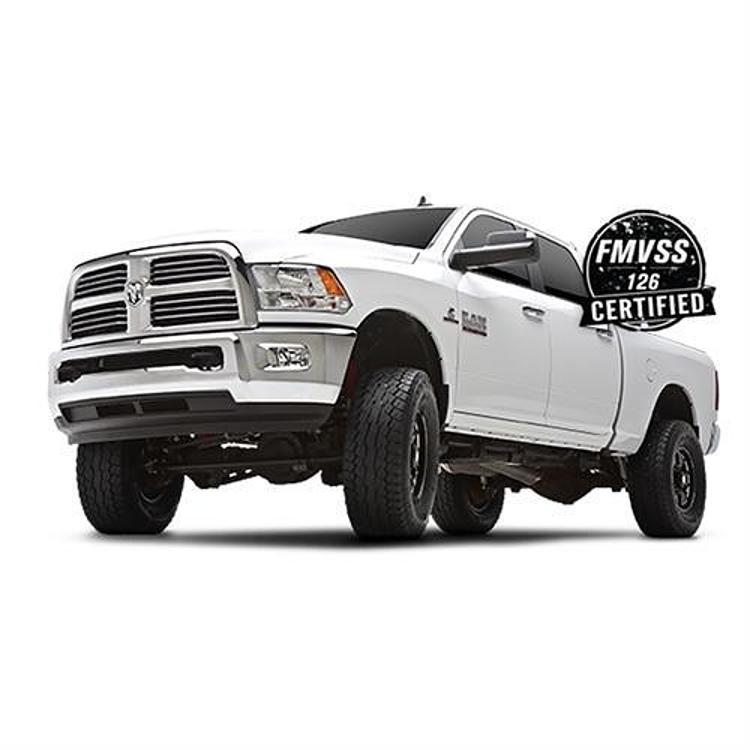

The Rancho 4.5-inch Radius Arm Lift Kit, part number RS66453B, is a competition radius arm kit for the Ram 2500 4WD diesel. It is built for the 2014 Ram 2500, with 37-inch tires on 20-inch wheels and 5.5 inches of backspacing.

The radius arms are longer than stock and have adjustment tabs that let you reuse the factory cam bolts to set caster.

The kit includes front coil springs and progressive rate rear coil springs, sway bar relocation brackets, brake line brackets and bump stops. A forged pitman arm is included for the steering linkage at the new height.

The kit is precision engineered to be 100 percent compatible with the factory electronic stability system, and it is FMVSS126 certified. The radius arms are longer than stock, which is why the adjustment tabs and factory cam bolts are used to set caster.

Key features

  • 4.5-inch lift
  • Competition style radius arms
  • Adjustment tabs for reusing factory cam bolts
  • Front coil springs and progressive rate rear coil springs
  • Forged pitman arm
  • Track bar brackets and sway bar relocation brackets
  • FMVSS126 certified, and designed for compatibility with the factory electronic stability system

Caster and alignment after the lift

Radius arm kits change caster, which affects how the truck tracks and how the steering feels at speed. The adjustment tabs let the caster be set back toward the factory cam bolt range, so the alignment shop should start from the caster setting recorded after installation. A competition style radius arm carries more load through the bushings than a stock arm, so bushing condition matters more on this kind of setup.

Progressive rate rear springs and the bump stops work together on the rear, so check that the bump stops clear the axle at full compression. Sway bar relocation brackets and brake line brackets should be checked for clearance after the first drive. Re-torque hardware after the first week of driving, as lifted geometry can settle the joints.

  • Set caster with the adjustment tabs
  • Check bump stop clearance at full compression
  • Re-torque fasteners after the first week

Specifications

Brand Rancho
Part number RS66453B
UPC 70000708463
Lift height 4.5 inches
Lift height range 3 to 4.99 inches
Suspension type Radius arm
Rear lift method Coil springs
Design tire size 37 inches
Design wheel 20 inches, 5.5-inch backspacing
Shocks Not included

Vehicle fitment

It fits the 2014 Ram 2500 in several equipment packages.

Other Ram models and years are not covered by this fitment. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Radius arm kits change caster, so set the caster with the adjustment tabs and check the alignment after installation. The kit also needs shocks, which are not included.

What’s included

Competition radius arms, track bar bracket, sway bar relocation brackets, brake line brackets, bump stops, a forged pitman arm, front coil springs, rear progressive rate coil springs, and sway bar drop brackets. Not included: shocks.

SKU: RANRS66453B Category:

Specification

Shipping weight 254.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ram 25002014Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, Outdoorsman, SLT, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RS66453B fit a 2014 Ram 2500 diesel?

Yes. The kit fits the 2014 Ram 2500, and it is built for the 4WD diesel version. Check your year, drivetrain and engine before installing.

What wheel and tire size was the kit designed for?

It was designed for 37-inch tires on 20-inch wheels with 5.5 inches of backspacing. Those are the design figures for the kit.

Does the RS66453B work with the factory stability control?

Yes. The kit is engineered to be 100 percent compatible with the factory electronic stability system and is FMVSS126 certified.

How often should radius arm bushings be inspected?

Inspect the bushings during every alignment check and after any hard off-road use. Cracked rubber, play at the axle end and clunking under braking are the signs that a bushing needs replacing before it affects steering.
