Overview

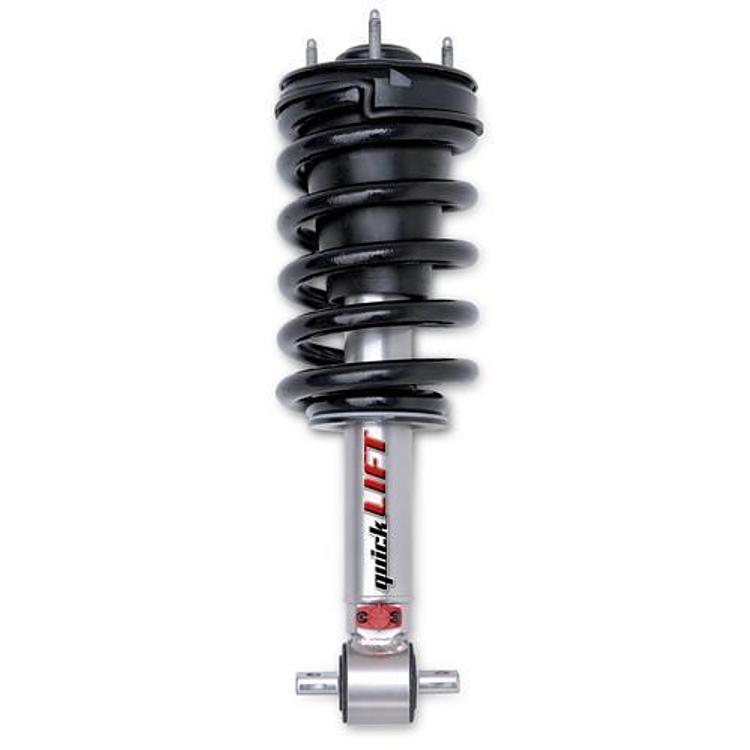

The Rancho RS999920 is a 2.25 inch Loaded QuickLIFT front right quick-strut for the 2007–2018 Toyota Tundra. It combines a gas charged strut, coil spring and upper mount in one assembly, built to raise the front end and remove the factory nose-down rake on a pickup or SUV.
The unit arrives fully assembled, so installation is a strut replacement rather than a fabrication job. The added height makes room for larger tires, up to 35 inches depending on application, and the 9-position adjustment lets you set ride quality to suit how you drive.
Key features
- Complete quick-strut with coil spring and upper mount
- 9 adjustment positions
- Compatible with the Rancho myRIDE Wireless Controller for changes from the driver seat
- Gas charged damper
- Front right mounting position
Choosing a strut for a Tundra
A complete strut assembly is often the simplest way to replace worn front suspension on a Tundra. Because the spring and upper mount come with the strut, the upper mount bearing and spring seat are fresh when the truck goes back on the road. This can save time compared with rebuilding a worn strut from separate parts.
When choosing, think about the kind of driving you do. Highway use favors a firmer, controlled damper, while off-road work may call for a setting that soaks up larger bumps. The adjustment positions let you move between these two uses without changing parts.
- Replace the upper mount when the strut is changed
- Check the front sway bar end links
- Inspect the front wheel bearings during install
- Recheck alignment after the first drives
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS999920 |
| Lift height | 2.25 inch |
| Position | Front right |
| Shock series | QuickLIFT Series |
| Damper type | Gas charged |
| Adjustment positions | 9 |
| Tire size allowance | Up to 35 inches, depending on application |
Vehicle fitment
It fits the 2007–2018 Toyota Tundra in the 1794 Edition, Base, Limited, Platinum, SR and SR5 trims.
Other Tundra generations and other Toyota models are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the strut arrives assembled, the job centers on removing the factory unit and fitting this one. A 2.25 inch rise changes front geometry, so plan an alignment afterward and check the front driveline angles.
What’s included
The kit includes the strut, coil spring and upper mount.
Not included: The myRIDE Wireless Controller is compatible with this strut but is not part of the kit.
