Overview

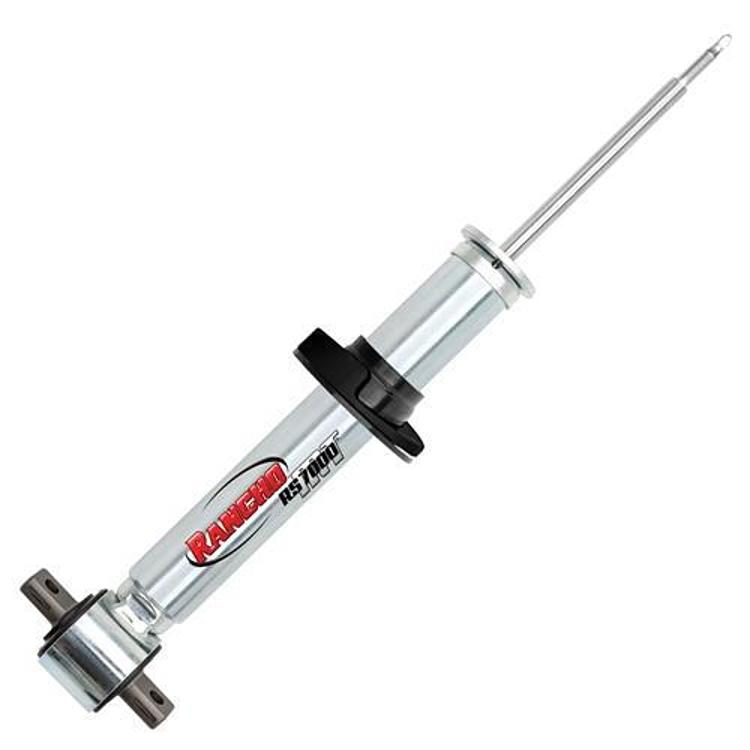

The Rancho RS7784 is a front shock absorber from the RS7000MT Series, with a gas charged monotube design, a 14mm chrome rod and ten stage velocity-sensitive valving. It is a direct fit part for the front position with a 0 in. lift/drop rating.
RS7000MT Series shocks are high-pressure gas charged units built to dissipate heat, which helps reduce fade. Their damping is sensitive, reacting to a wide range of off-road obstacles. The valving is tuned to the application, and the shocks are made in America.
Key features
- Monotube, gas charged design built for heat dissipation
- Ten stage velocity-sensitive valving
- 14mm chrome rod
- Black natural rubber bushings
- Protective boot included
- Brushed-zinc clear coated finish
Choosing a direct fit shock
Direct fit shocks are designed to install in the original mounting points, so the main job is confirming the match rather than modifying the truck. Start with the year, make, model and trim, then compare the mounting style and length with the shock you are removing. The RS7000MT name tells you the family and design, not the vehicle it belongs on.
Front position matters because the front shock affects steering feel, braking stance and tire wear. Gas charged monotube shocks are often chosen for heat control on long descents and repeated use. Before installation, inspect the old shock for leaks and worn bushings, since a loose, worn mount can leave a new unit working out of place.
- Verify fitment before the parts arrive
- Compare length and mounting style with the old shock
- Replace front shocks as a pair when possible
- Support the vehicle securely before removing the old unit
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS7784 |
| UPC | 10039703003596 |
| Series | RS7000MT |
| Shock design | Monotube, gas charged |
| Body diameter | 1.97 inch (50mm) |
| Rod | 14mm chrome |
| Valving | Ten stage velocity-sensitive |
| Bushings | Black natural rubber |
| Position | Front |
| Lift height | 0 in. lift/drop |
| Finish | Brushed-zinc clear coated |
Vehicle fitment
This shock is a direct fit for the front position. Before ordering, confirm your vehicle’s year, make, model and trim, since the RS7000MT name alone does not identify a vehicle.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
A protective boot is included with the shock.
