Pro Comp Uniball Upper A Arm with Billet Dust Cap – 51035B

Pro Comp Suspension

Shop Pro Comp Suspension Control Arms on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • For 2007–2014 GM 1500 2WD and 4WD trucks
  • Stainless steel FK Uniball joints on a 1.25-inch chromoly arm
  • Large PTMEG pivot bushings with a grease fitting
  • Reinforced pivot bushing mount and black powder coat finish
  • Billet dust cap included; sold as a pair

Description

Overview

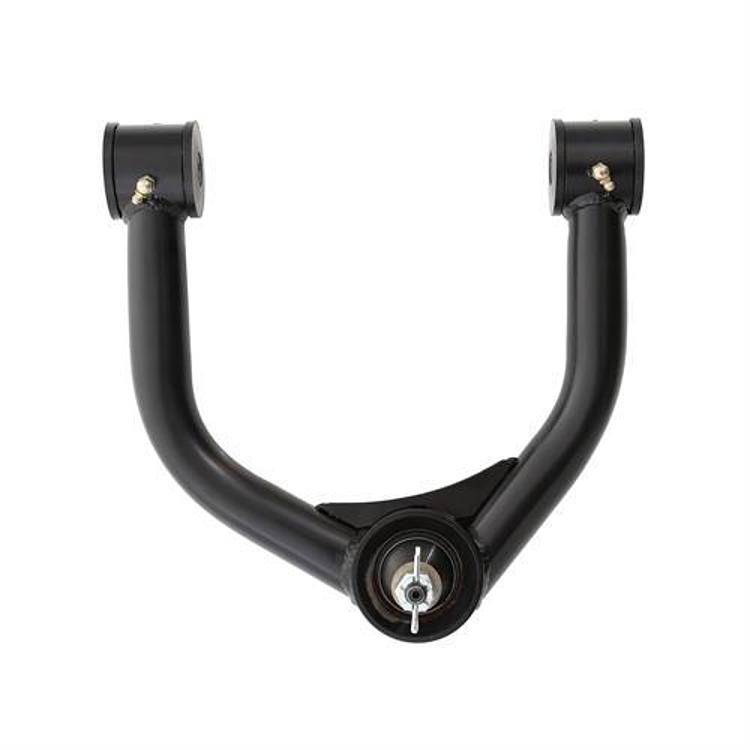

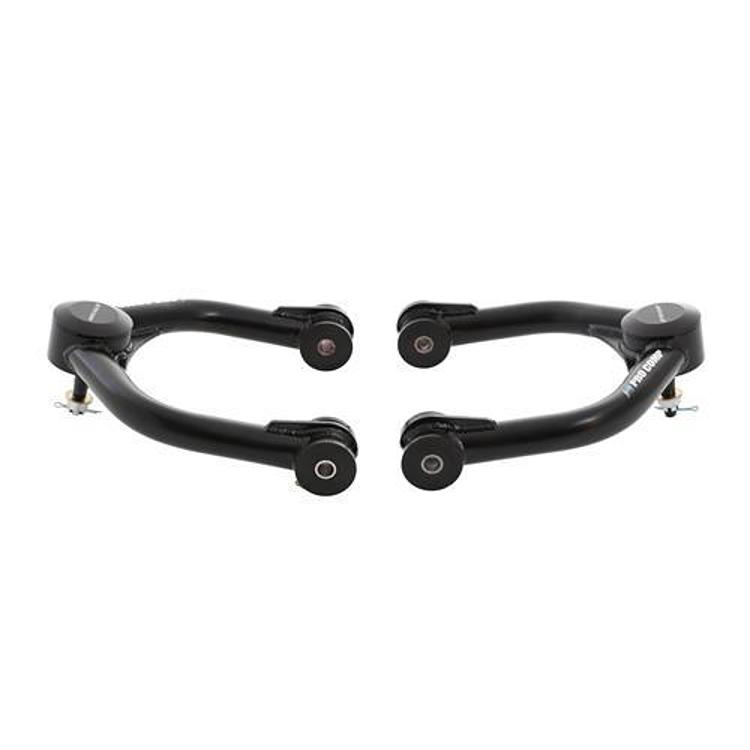

The Pro Comp 51035B is a front upper control arm with stainless steel Uniball joints and a billet dust cap, sold as a pair for 2007–2014 GM 1500 2WD and 4WD trucks. Pro Comp built the Pro Runner arm to replace factory upper control arms, which the company says have weak ball joints and stamped steel construction that is not designed for off-road use.

The arm is made from 1.25-inch chromoly tubing with reinforced pivot bushing mounts. Pro Comp says those mounts eliminate flex and handle the added load from extreme suspension cycling. The arm is intended for lifted, leveled or stock trucks, and it is finished in black powder coat.

Key features

  • Stainless steel FK Uniball joints in place of factory ball joints
  • 1.25-inch chromoly tubular construction
  • Large PTMEG pivot bushings for quiet operation

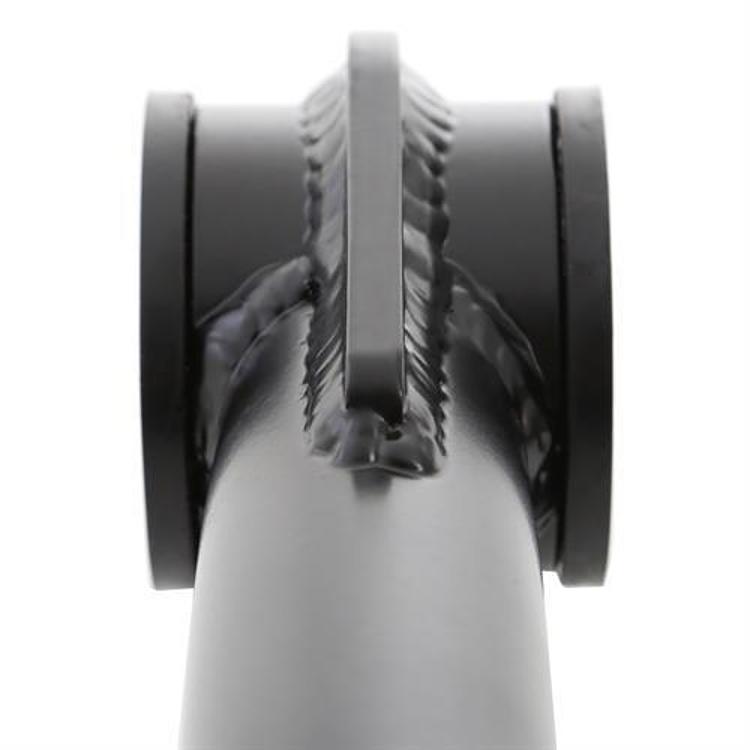

  • Reinforced pivot bushing mount to resist flex

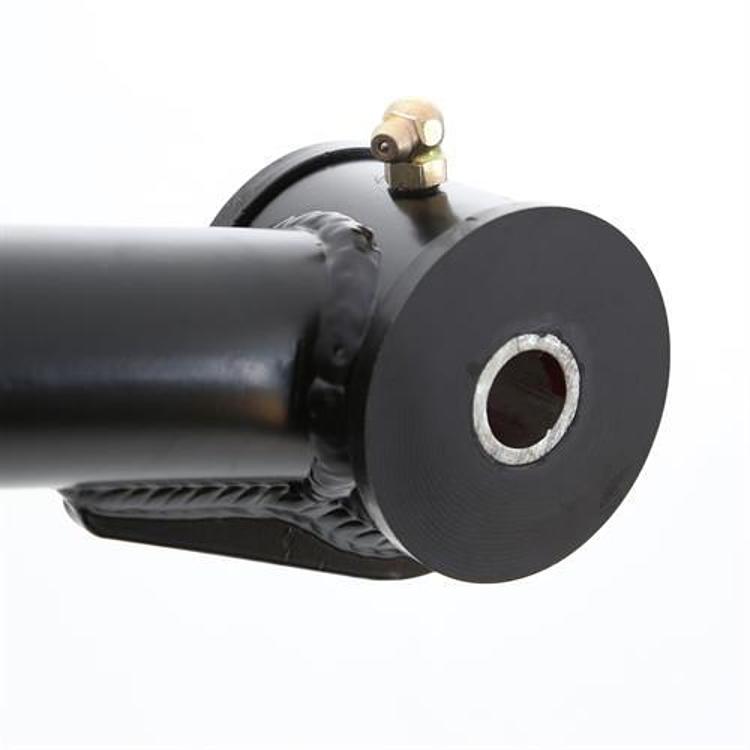

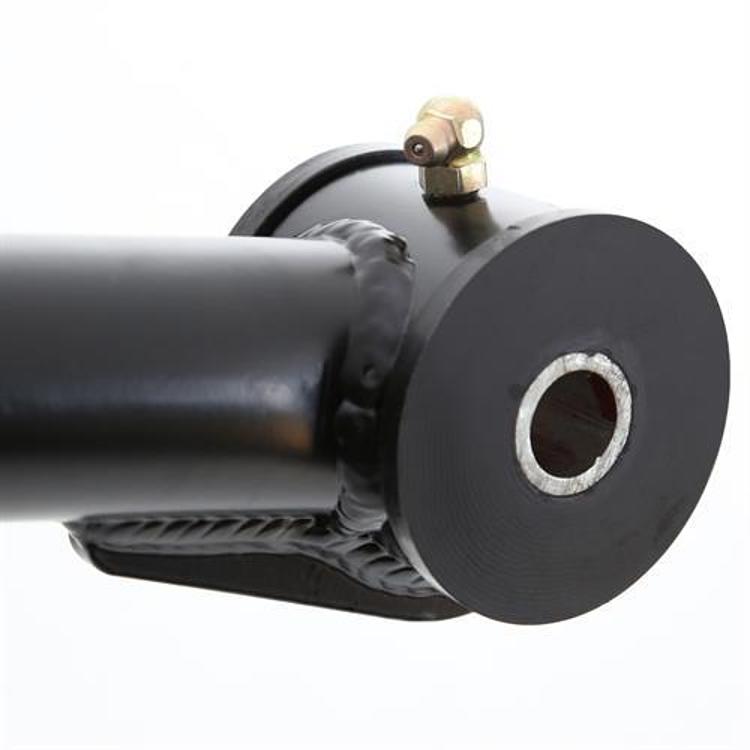

  • Zerk grease fitting on the pivot bushings for easy service
  • Billet machined dust cap keeps dirt and debris out of the Uniball
  • Black powder coat finish

Choosing the right upper arm

Upper control arms are the top link of the front suspension, and their ball joints take the steering and suspension loads as the wheel moves. On a lifted or off-road truck, the joints and pivot bushings see more angle and more load than factory parts were designed for, which is why many owners replace the arms as a set.

When choosing arms, match the model years first, then compare the joint size, tubing and pivot design with the factory parts. Arms sold as a pair keep both sides consistent, which helps the truck track straight after the alignment.

Upper arm replacement often calls for new bushings, a lower ball joint check and a full alignment. Grease the zerk fittings at the recommended interval and inspect the dust caps for tears, since a damaged cap lets grit wear the joint.

  • Match the model years before buying
  • Replace bushings and inspect the lower joint together
  • Align the front end after installation

Specifications

Brand Pro Comp Suspension
Part number 51035B
UPC 614901273601
Position Front upper
Tubing 1.25-inch chromoly, tubular
Ball joints Stainless steel FK Uniball
Bushings PTMEG pivot bushings with zerk fittings
Dust cap Billet machined
Finish Black powder coat
Sold as Pair

Vehicle fitment

The arms are made for 2007 to 2014 GM 1500 2WD and 4WD trucks. Confirm that your truck is a GM 1500 from those years before ordering.

Model years 2014 and newer are not covered by this part. Pro Comp lists its 51036B arm for 2014 and newer GM 1500 trucks, which use a different upper arm. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Upper control arms set caster, camber and steering geometry, so have the front end aligned after the arms are installed. The pivot bushings have zerk fittings, so grease them once the arms are in place.

What’s included

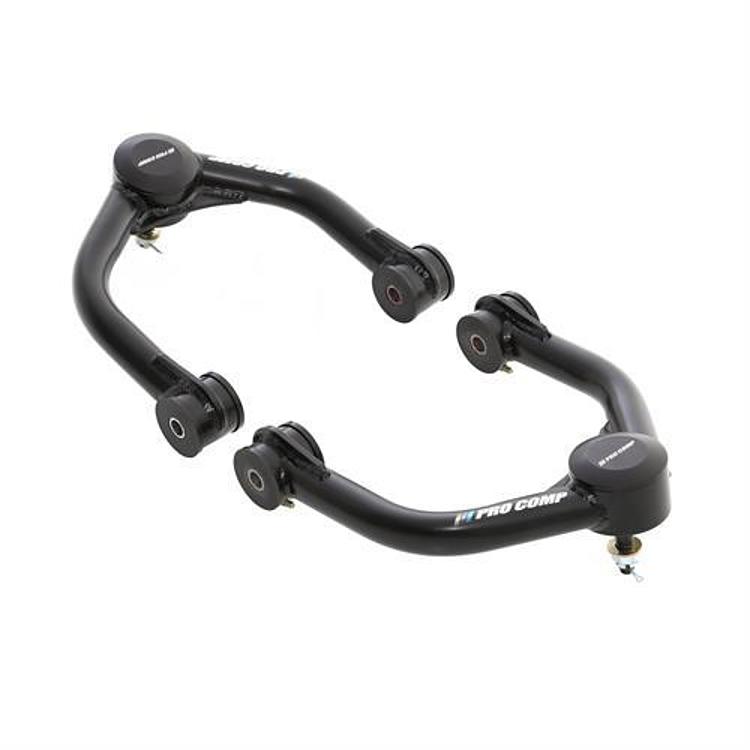

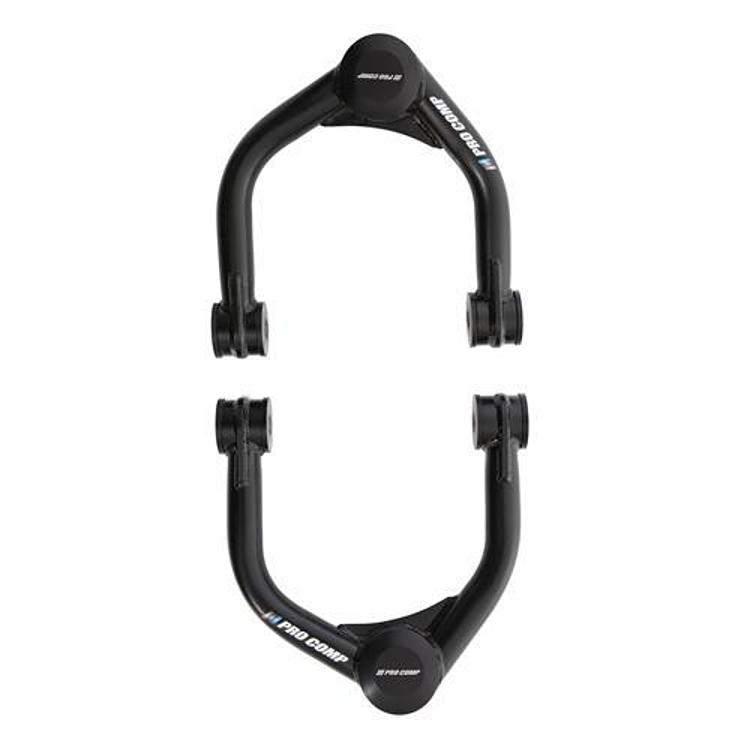

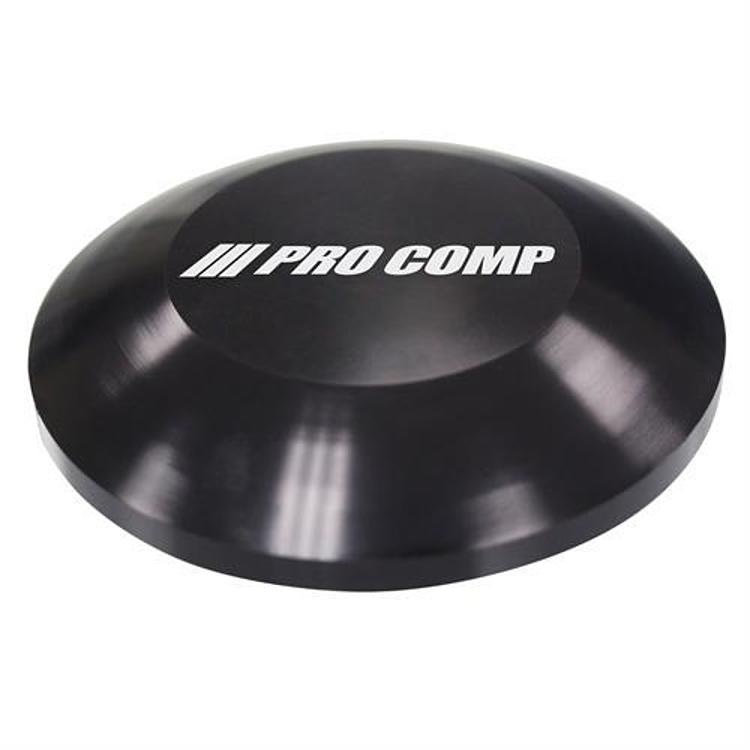

Two upper control arms, sold as a pair. Each arm comes with a billet machined dust cap that keeps dirt and debris out of the Uniball joint.

SKU: EXP51035B Category:

Specification

Shipping weight 18.00 lbs
Package dimensions 15.00 × 14.30 × 6.30 in
brands

Questions & Answers

Will the Pro Comp 51035B fit a 2007 to 2014 GM 1500 truck?

Yes. The arms fit 2007 to 2014 GM 1500 2WD and 4WD trucks. Model years 2014 and newer use the 51036B arm instead, so check your year before ordering.

Does the 51035B come with dust caps?

Yes. Each arm includes a billet machined dust cap that keeps dirt and debris out of the Uniball joint. The arms are sold as a pair, so one purchase covers both sides of the truck.

What makes these arms stronger than factory upper arms?

Pro Comp says factory upper arms have weak ball joints and stamped steel construction. These arms use oversized stainless steel FK Uniball joints and 1.25-inch chromoly tubing, which the company says handles off-road loads better.

Do upper control arms affect steering?

Yes. The upper arm sets the top of the steering geometry, so a worn joint or a changed arm angle can cause wander, tire wear or a loose feel. Any change should be followed by an alignment check.

How do I tell if the ball joints are worn?

Look for play when the wheel is lifted, torn dust caps, and clicking or popping over bumps. Any of these signs means the joint should be inspected and replaced if it is loose.
