Overview
The Pro Comp ZX3012 is a Black Series 2.0 rear shock absorber for a lift range of 0 to 1.5 inches. It is a nitrogen gas charged monotube with a clear coated zinc finish, sold individually. The lift range is the main sizing guide for this rear shock.
The 2.0 line is hand assembled to exact specifications and tuned for specific applications. It has custom tuned coils and precision valving for controlled handling, and it pairs with the Pro Runner 2.0C family for a tuned ride.

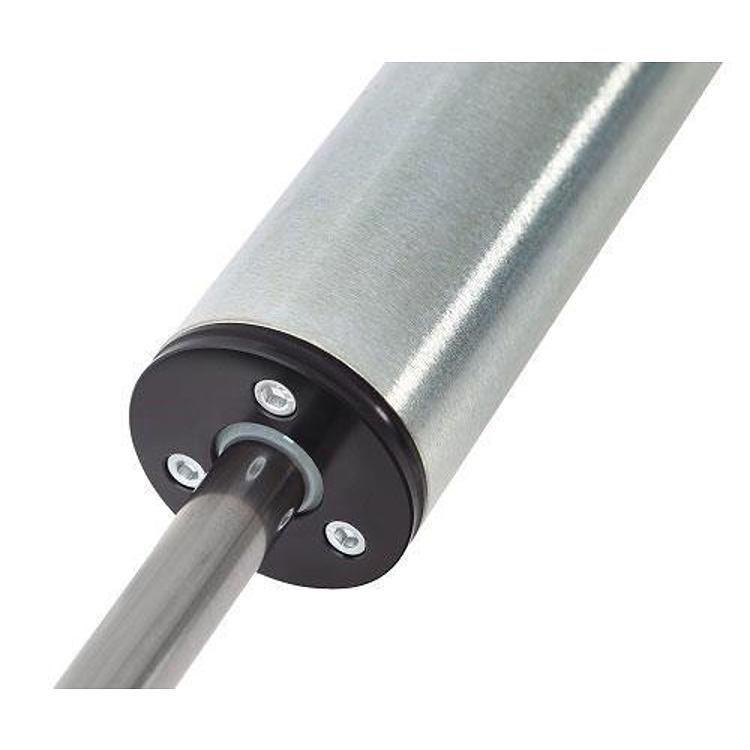

The 2 inch diameter body is zinc plated and finished with black anodized ends. Viton seals guard against leaks.
Key features
- Rear position
- Nitrogen gas charged monotube
- Custom tuned coils and precision valving.
- Viton seals
- 2 inch zinc plated body with black anodized ends
Sizing a rear shock
Rear shock sizing starts with the distance between the mounting points at the truck’s normal ride height. Measure both the compressed and extended lengths if possible, then compare them with the lift range before buying. A shock that is too short or too long can bottom out or run out of travel on rough ground.
Damping style matters as much as length. A monotube design with a nitrogen charge is often chosen for consistent control, while the rebound setting affects how quickly the rear settles after a bump. Replacing a worn rear shock usually restores that control, and checking the bushings and mount bolts at the same time keeps the new unit working as intended.
- Measure eye-to-eye length at ride height
- Compare measurements against the lift range
- Check bushings and mount bolts at installation
- Replace shocks in matched sets when possible
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | ZX3012 |
| UPC | 614901220124 |
| Shock series | 2.0 Black Series |
| Lift height | 0 to 1.5 in. |
| Body diameter | 2 in |
| Charge | Nitrogen, gas charged |
| Design | Mono tube |
| Finish | Clear coated zinc |
| Sold as | Individually |
Vehicle fitment
Confirm fit for the rear suspension’s year, model and trim before ordering, and match it to a 0 to 1.5 inch lift range.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One Black Series 2.0 rear shock, sold individually.
