Pro Comp 97 Series Rock Crawler, 15x10 Wheel with 5 on 4.5 Bolt Pattern – Flat Black – 97-5165F

Pro Comp Steel Wheels

Shop Pro Comp Steel Wheels 15x10 5x4.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 97 Series Rock Crawler, 15×10 inch steel wheel in flat black, part number PCW97-5165F
  • 5 on 4.5 bolt pattern, 83 center bore, -22 offset, 3.75 backspacing
  • Holes-style face with a powder coat finish
  • Center cap and lug nuts sold separately

Description

Overview

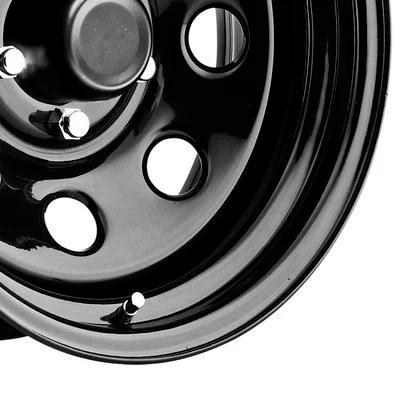

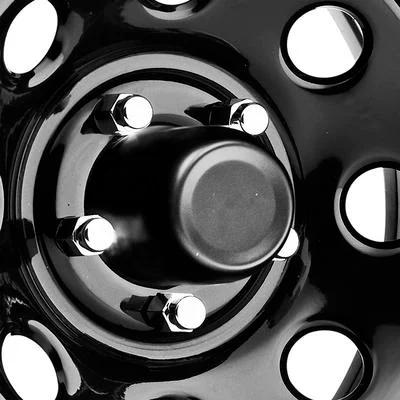

The Pro Comp 97 Series Rock Crawler is a 15×10 inch steel wheel in flat black, part number PCW97-5165F, drilled for a 5 on 4.5 bolt pattern. It is a wide 15 inch wheel from Pro Comp Steel Wheels’ Rock Crawler Series 97, a design for off-road builds that want a steel wheel with a holes-style face.

The -22 offset places the mounting face behind the centerline and pushes the wheel outward from the hub. The 3.75 backspacing measures the distance from the mounting face to the back edge of the rim. The 83 center bore centers the wheel on the hub. The steel is coated with a powder finish.

Key features

  • Steel wheel with a flat black powder coat
  • 15 inch diameter and 10 inch width
  • 5 on 4.5 bolt pattern
  • 83 center bore
  • -22 offset and 3.75 backspacing
  • Holes-style face from the 97 Series

Wide wheels and tire wear

A wider rim changes how the tread meets the road. Tire wear can be uneven if the tire is mounted too far inboard or outboard, so a camber check after installation is worth the time. Negative offset combined with a wide rim moves the load line outward, which can change steering feel on highway runs.

When choosing a tire for a wide rim, match the tire’s recommended width range to the rim width. Too narrow a tire on a wide rim can bulge and flex at the sidewall, while too wide a tire can rub at full steering lock. Check the tire’s load rating for the vehicle, since a wide rim does not change the weight the tire must carry.

  • Confirm the tire width range matches the rim.
  • Check camber and toe after installation.
  • Inspect the sidewalls for bulges after rough trail runs.

Specifications

Brand Pro Comp Steel Wheels
Part number PCW97-5165F
Series 97 Series Rock Crawler
Construction Steel
Style Holes
Finish Flat black powder coat (the spec sheet says black)
Diameter 15 inches
Width 10 inches
Bolt pattern 5 on 4.5
Center bore 83
Offset -22
Backspacing 3.75

Vehicle fitment

No model years or chassis code are confirmed for this 10 inch wide wheel. Match the 5 on 4.5 bolt pattern and 83 center bore to the hub, and check the -22 offset against the fender and steering components of your vehicle. Confirm your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 10 inch rim with negative offset widens the stance, so inspect the tire’s position at full lock and under compression. Use lug nuts that seat correctly on the wheel and avoid mounting it on a hub that shows wear.

What’s included

The package is the 15×10 wheel alone (PCW97-5165F). No center cap is included.

Not included: Center cap and lug nuts for part PCW97-5165F, which are sold separately.

SKU: PCW97-5165F Categories: ,

Questions & Answers

Is the Pro Comp PCW97-5165F wheel a flat black finish?

Flat black. The finish is a flat black powder coat on a steel wheel, so the surface has a matte look rather than a gloss shine.

What is the bolt pattern of this 15x10 steel wheel?

It has a 5 on 4.5 bolt pattern with an 83 center bore. Check both against the hub on your vehicle, since the wheel will not mount on a different lug layout.

What offset does this wheel have?

It has a -22 offset, which places the mounting face behind the centerline. The wheel therefore sits farther out from the hub, and the 3.75 backspacing should be checked against the brake clearance.

Does a flat black powder coat need extra care?

Flat finishes show scuffs and dirt more easily than gloss finishes, so clean them with mild soap and a soft brush. Avoid abrasive pads, which can polish the surface unevenly and leave shiny spots. Touch up chips promptly to keep the finish uniform.
