Overview
The Pro Comp K4176M is a 6-inch stage 2 lift kit with PRO-M front and rear shocks for the 2011–2016 Ford F-250 Super Duty. The lift height range is 6 to 7 inches, and the shocks are included with the kit.
Pro Comp’s description says its systems for the 2011 and newer Super Duty F-250 use laser cut brackets and a drop pitman arm to hold suspension and steering geometry. Specific rate coil springs raise ride height and improve ride quality. The stage 2 systems add replacement radius arms made from 4130 Chromoly tubing and 3/16-inch thick steel plate, which Pro Comp says adds performance beyond the factory ride quality.
Key features
- Replacement radius arms of 4130 Chromoly tubing
- Radius arm components built from 3/16-inch thick steel plate
- Laser cut brackets for suspension geometry
- Drop pitman arm for steering geometry

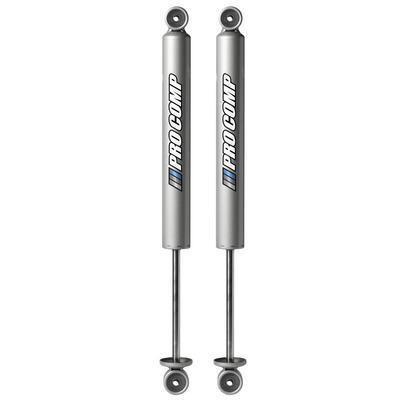

- PRO-M front and rear shocks, included
Radius arms and alignment
Radius arms locate the axle fore and aft and resist the twisting forces created by acceleration and braking. Replacement arms of heavier steel plate and chromoly tubing keep the axle in position under load, which helps the stage 2 geometry stay consistent over time. Because the arms connect to the frame and axle through bushings, their condition shapes how the truck tracks and how the rear feels under braking.
Inspect the bushings, brackets and welds at regular service intervals and after any hard off-road run. Look for cracks around weld points, play at the bushing ends and any change in axle position. Because the drop pitman arm affects steering, include the steering linkage in the same check, and have the alignment verified once the arms are in place.
- Look for cracks near weld points and brackets
- Check bushings for play or torn rubber
- Recheck alignment after any arm replacement
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4176M |
| Suspension type | Lift kit, 6-inch stage 2 |
| Lift height | 6 inches, listed range 6–7 inches |
| Front shocks | PRO-M |
| Rear shocks | PRO-M, included |
| Radius arms | Replacement, 4130 Chromoly tubing and 3/16-inch steel plate |
| Rear lift method | Block/spacer with block and U-bolt and add-a-leaf |
| Shocks included | Yes |
Vehicle fitment
It fits the 2011–2016 Ford F-250 Super Duty in the King Ranch, Lariat, Platinum, XL and XLT versions.
Fitment ends with the 2016 model year and covers the F-250 Super Duty only. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Replacement radius arms change the rear axle location, so the driveline angles and the alignment should be checked once the stage 2 kit is installed. The steering setup uses the drop pitman arm, so include the steering in that check.

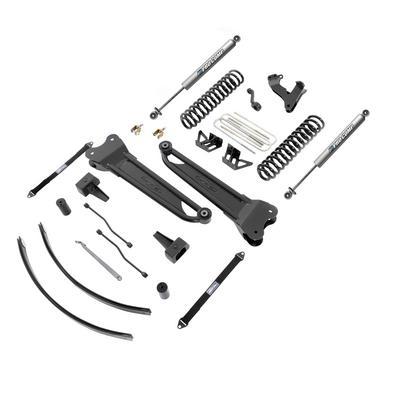

What’s included
Replacement radius arms, laser cut brackets, the drop pitman arm, specific rate coil springs and PRO-M front and rear shocks.
