Pro Comp 2.5 Inch Rear Lift Block – 95-254F

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 2.5-inch rear lift block for leaf spring trucks
  • Sold in pairs, one set for both rear springs
  • Tapered for driveshaft angles
  • Universal fit, no vehicle listed
  • Part number 95-254F

Description

Overview

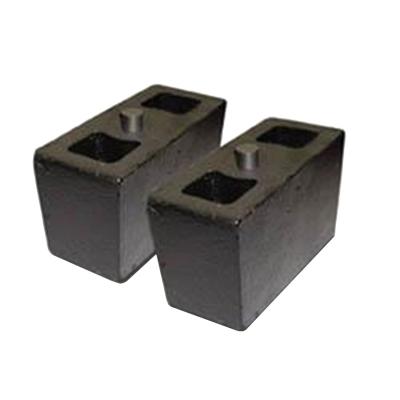

The 95-254F is a 2.5-inch rear lift block for leaf spring trucks, sold in pairs so one set covers both rear springs. Riser blocks are for the rear only and should never be used on the front of any vehicle.

The rear block raises the axle by its thickness between the leaf spring and the axle housing. The taper of the block is meant to keep the driveshaft angle in a usable range, and the 2.5-inch height is listed in the specifications as a single lift measurement.

Confirm the fit against your truck’s leaf spring rear suspension and U-bolts before ordering. Check the driveshaft angles after installation.

Key features

  • 2.5-inch rear lift
  • Sold in pairs
  • Tapered block design
  • For rear use only

Rear lift blocks and driveline angles

A leaf spring rear lift block raises the axle relative to the springs, which changes the angle of the driveshaft. Too much angle can wear the u-joints quickly and cause vibration at highway speed, so the taper of a block is meant to keep the angle workable. Once the block is in place, the pinion angle and driveline length should be checked before the truck is driven normally.

Leaf spring trucks often need longer U-bolts, and the shock absorber mounts may sit at a different angle after the lift. Inspect the spring pad, the center bolt and the axle seat for wear, since the block sits between parts that were not separated before. Retighten the U-bolts after the first drive and again after a short run, because the nuts can settle.

Specifications

Brand Pro Comp Suspension
Part number 95-254F
Position Rear
Lift 2.5 in
Quantity Pair

Vehicle fitment

Confirm fit for your vehicle’s year, model and rear suspension before ordering.

A rear lift block is sized for a specific leaf spring setup, so do not assume fit from the part name. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Install the blocks at the rear only. Check the driveshaft angles after installation and confirm the U-bolts are long enough for the 2.5-inch height.

What’s included

A pair of rear lift blocks, as the product is sold in pairs.

Not included: U-bolts and hardware.

Questions & Answers

Is the 95-254F sold as one block or a pair?

The 95-254F is sold as a pair, so one set provides two blocks for the rear springs. It is not a single block.

Can the 95-254F be used on the front?

No. This block is for rear use only, since a riser block should never be used on the front of any vehicle, and it should not be fitted at the front.

What lift does the 95-254F give?

The specifications list a 2.5-inch lift. Check your truck's driveshaft angles and U-bolt length after installation to confirm the height suits the vehicle.

Do lift blocks affect brake lines or shocks?

They can. Raising the axle changes the angle and length of brake lines and shock mounts, so check both after installation. Longer U-bolts may also be needed to hold the axle at the new height.
