Power Trax Dana 30 27 Spline Lock Right Locker – 2210-LR

Power Trax

$252.64In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 6:00 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Power Trax 2210-LR, right lock automatic locker
  • For 27 spline Dana 30 axles
  • Dana 30 Reverse, TJ and Standard axle types listed
  • Front or rear axle locations; no vehicle named

Description

Overview

The Power Trax 2210-LR is a right lock automatic locker for 27 spline Dana 30 axles. It fits Dana 30 Reverse, Dana 30 TJ and Dana 30 Standard axle types, for front or rear locations.

The locker adds locking traction without a complete differential case replacement, and the ring and pinion setup stays as it is. The unit uses a rugged design intended for Dana 30 axles.

Key features

  • Automatic locker design
  • Built for 27 spline Dana 30 axles
  • Dana 30 Reverse, TJ and Standard types listed
  • Ring and pinion setup left unaltered
  • Front or rear installation listed

Dana 30 axle types explained

Dana 30 axles come in several types, and the differences matter when you buy a locker. Axle type, spline count and housing layout each affect whether a unit seats correctly and how the carrier lines up. Matching these details before ordering helps prevent a mismatch on installation day.

Automatic lockers are common on trail rigs because they engage on their own when one wheel slips. On the road they feel close to an open differential, though some owners notice a light clunk on tight turns. Front and rear positions may call for different setups, so check each axle separately.

  • Count the splines on the axle shaft
  • Note whether the axle is front or rear
  • Inspect bearings and seals during the rebuild
  • Use gear oil suited to locking differentials

Specifications

Brand Power Trax
Part number 2210-LR
UPC 698231805695
Locker type Automatic locker
Lock side Right
Axle spline count 27 splines
Axle types Dana 30 Reverse, Dana 30 TJ, Dana 30 Standard
Axle location Front or rear
Popular axle manufacturer Dana
Fitment field Universal Fit

Vehicle fitment

Fitment is not tied to a specific vehicle. Confirm the Dana 30 axle type matches your axle, and make sure the fit lines up with your vehicle’s year, model and trim before ordering.

Axles that are not Dana 30 or have a different spline count are outside these figures. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The carrier is reused and ring and pinion geometry is not altered. A qualified differential technician should confirm which Dana 30 type your axle is before installing the locker.

What’s included

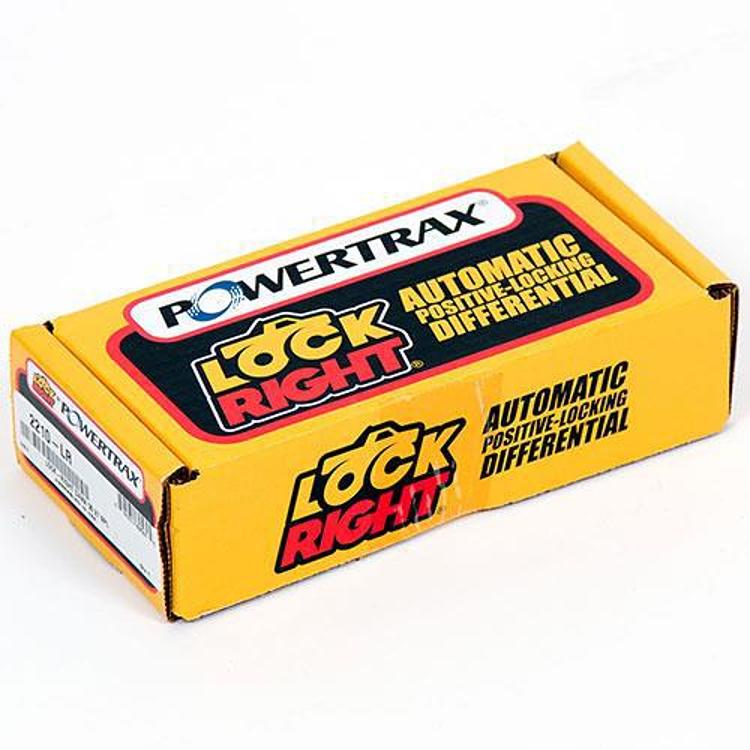

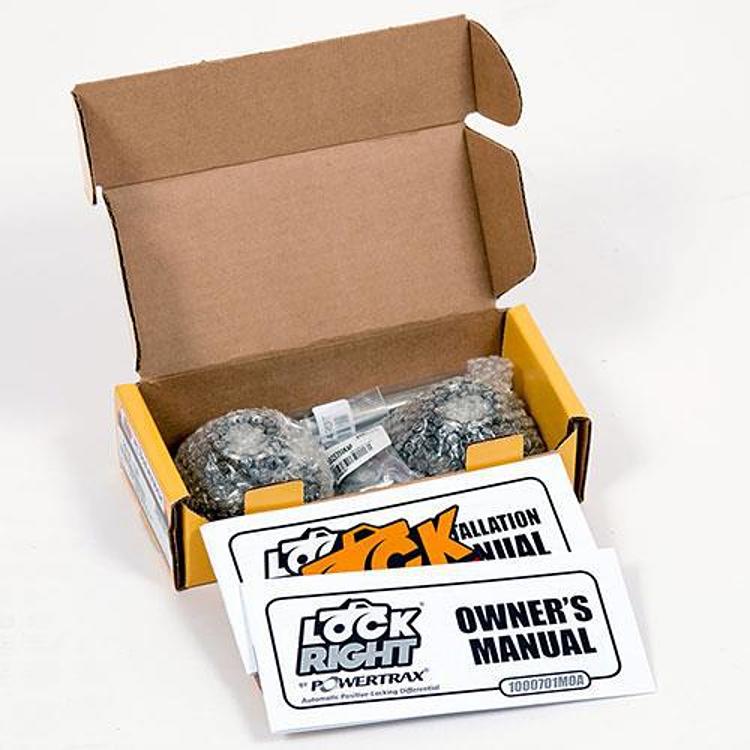

The package covers the Power Trax 2210-LR right lock automatic locker.

Not included: Hardware and couplers are not included.

SKU: PTX2210-LR Category:

Specification

Shipping weight 3.90 lbs
Package dimensions 9.00 × 4.30 × 2.30 in
brands

Questions & Answers

Does the 2210-LR fit Dana 30 axles?

The 2210-LR fits 27 spline Dana 30 axles in the Reverse, TJ and Standard types, for front or rear locations. Confirm your axle type and spline count before ordering, along with your vehicle's year, model and trim.

Is the 2210-LR a right lock or left lock unit?

It is a right lock automatic locker, so confirm which side your axle needs before choosing this unit for the installation.

What is the part number and UPC for the 2210-LR?

The part number is 2210-LR and the UPC is 698231805695. The locker type is automatic, and it works in a front or rear axle location.

How do I tell if a Dana 30 axle is a TJ or Standard type?

Start by checking the axle tag and the carrier casting, which often show the axle type. Measure the spline count and compare it with your vehicle's records. If the markings are unclear, have a qualified axle technician identify the type before ordering.

Should I replace the axle seals during a locker install?

Yes, it is a good time to replace them. Pulling the cover exposes the seals and bearings, and worn seals can leak gear oil onto the brake parts. Replacing them while the axle is open avoids a second teardown later.
