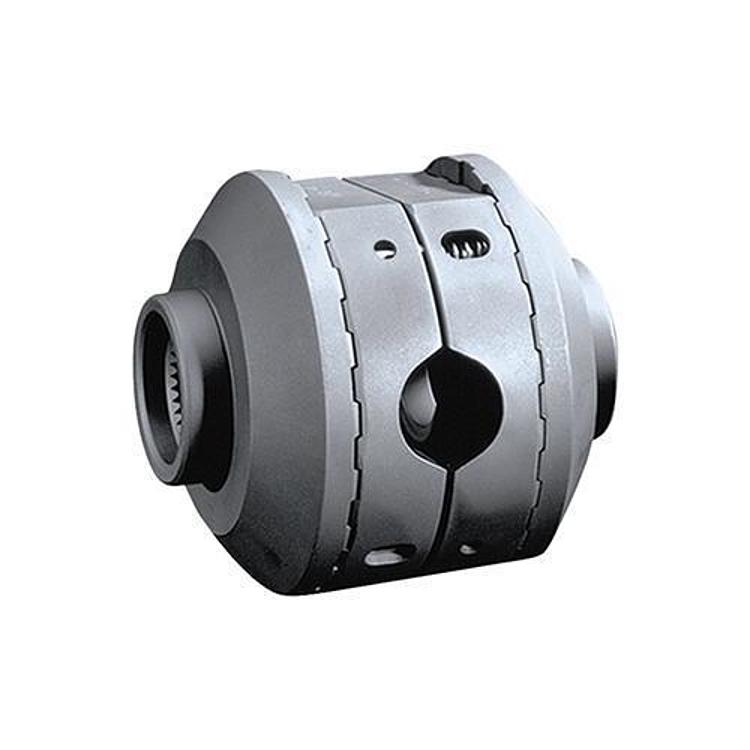

Power Trax Chrysler 8.25 Inch 27 Spline Lock Right Locker – 1230-LR

Power Trax

$403.52In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 9:10 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Automatic locker for Chrysler 8.25 Inch axles, 27 splines
  • Complete differential case replacement per description
  • Part number 1230-LR, UPC 698231805503
  • Fitment not listed; ring and pinion setup not altered

Description

Overview

The Power Trax 1230-LR is a Lock Right automatic locker for Chrysler 8.25 Inch rear axles with 27 splines. It replaces the differential case as a complete unit, and the ring and pinion setup stays unchanged.

The locker is built for rugged applications and installs easily in the front, rear or both positions. Part number 1230-LR and UPC 698231805503 identify this unit.

Key features

  • Automatic locker for Chrysler 8.25 Inch axle types
  • Complete replacement of the differential case
  • Ring and pinion setup is not altered
  • Installs in front, rear or both positions

Before you install

A locker changes how torque splits between the two wheels on an axle. With an automatic locker, the wheel with more grip receives drive when the other wheel slips, which helps on loose surfaces, climbs and uneven terrain. Smooth street driving can feel different with a locker, especially on tight turns, so many owners get used to the change over a few drives before judging it.

Because the differential case is replaced rather than the gears, bearing preload and case fit matter more than gear mesh. Tire size, gearing and axle width all shape how a locker behaves, so review those before the install. Worn bearings, leaking seals or a noisy carrier are signs to address before adding a locker to the axle.

Specifications

Brand Power Trax
Part number 1230-LR
UPC 698231805503
Axle location Rear
Axle type Chrysler 8.25 Inches
Axle spline count 27 splines
Differential type Automatic locker
Title designation Lock Right Locker
Popular axle manufacturer Chrysler

Vehicle fitment

The axle type is Chrysler 8.25 Inches with 27 splines. Match the spline count and housing to your vehicle before choosing this locker, and confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the ring and pinion setup is unchanged, the work centers on the case replacement. A shop that handles locker installs should still recheck bearing preload and confirm the case fits your housing.

What’s included

The package covers the locker case assembly for part number 1230-LR. Check the package contents against your installation before starting.

SKU: PTX1230-LR Category:

Specification

Shipping weight 7.20 lbs
Package dimensions 9.00 × 4.30 × 2.30 in
brands

Questions & Answers

Is the Power Trax 1230-LR an automatic locker?

Yes. It is an automatic locker. Power Trax builds it as a complete replacement of the differential case, with the ring and pinion setup left unchanged.

Does the 1230-LR fit front and rear?

It installs in the front, rear or both positions. The axle type is a rear Chrysler 8.25 Inch unit, so confirm your axle size and 27 spline count first.

What axle size is the 1230-LR for?

It is built for Chrysler 8.25 Inch axles with 27 splines. Match your housing and spline count to that type before installing this unit, and confirm fit for your vehicle's year, model and trim before ordering.

How can I tell if the axle needs service before a locker install?

Look for leaks at the carrier and axle seals, metal shavings in the gear oil, and bearing noise when the vehicle rolls. Address any of those first, since a locker adds load to the same parts.
