Overview

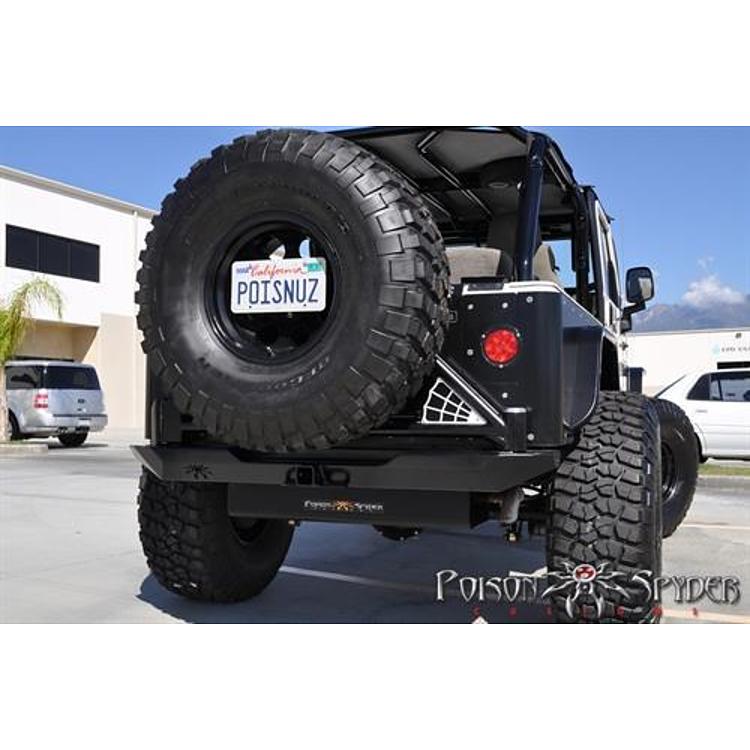

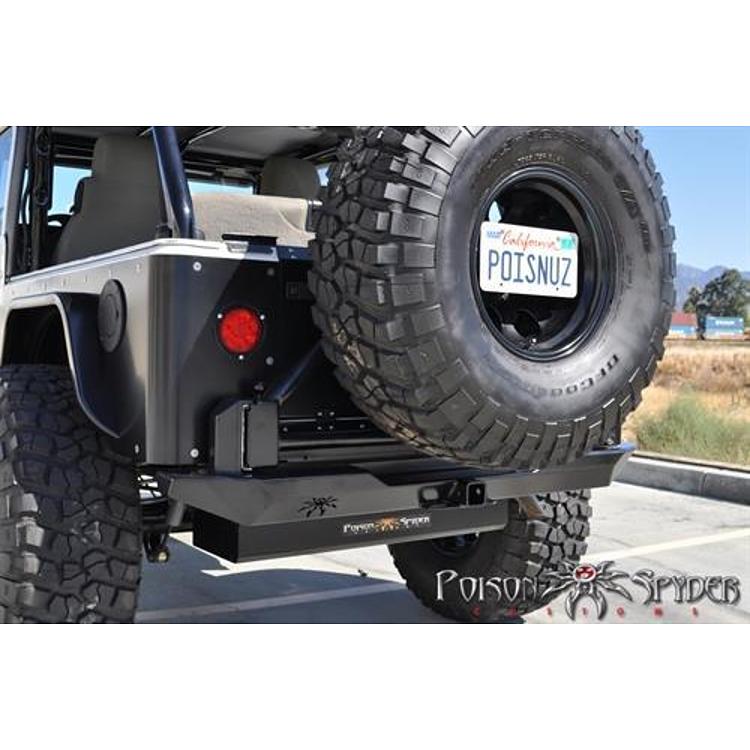

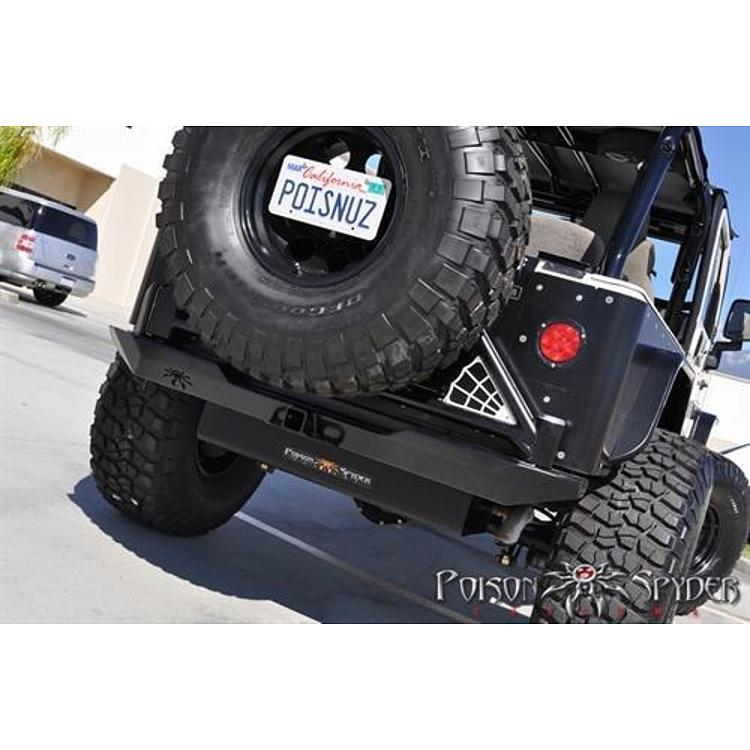

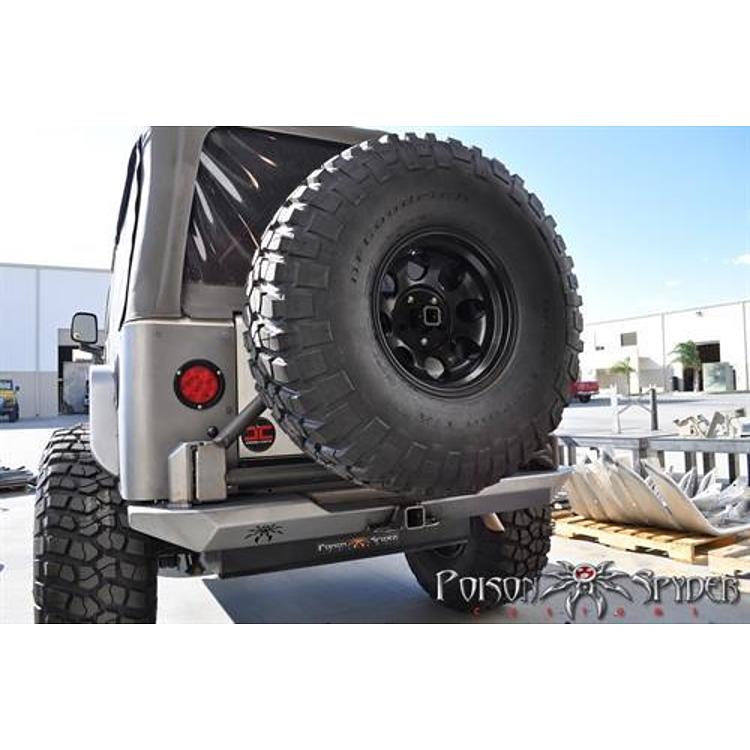

The Poison Spyder RockBrawler Rear Bumper with Tire Carrier in bare steel, part number 14-61-020, is a 3/16″ plate steel rear bumper with an adjustable swing-out tire carrier and an integrated receiver hitch. Its universal mounting system comes with captured hardware for the TJ/LJ, YJ and CJ.

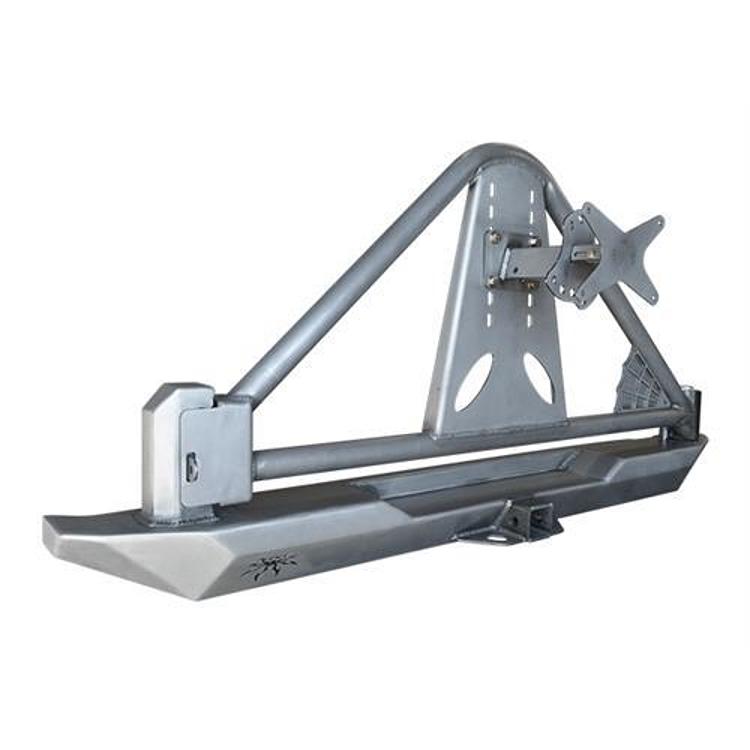

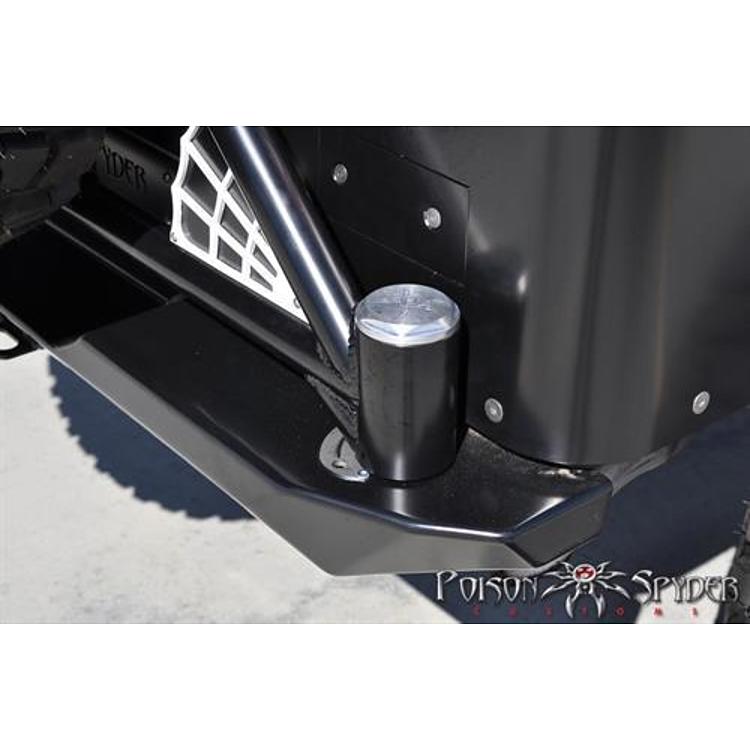

The tire carrier is made of bent DOM tubing and laser-cut plate steel. The hinge has a CNC machined spindle and housing with a pair of Timken tapered roller bearings, and a spring-loaded pin-lock with stainless steel slider plate holds the carrier open for tailgate access. The tire mount adjusts up and down and in and out for tires up to 40″, and a license plate mount that centers the plate on the spare is included.
The integrated hitch receiver is tucked high into the bumper for better clearance and is not rated for towing. This version does not include shackle tabs. The bumper mounts without cutting the Jeep’s frame rails and uses Grade 8 hardware.
Key features
- 3/16″ CNC laser-cut plate steel bumper, bare
- Adjustable swing-out tire carrier for tires up to 40″
- Timken tapered roller bearings in the hinge

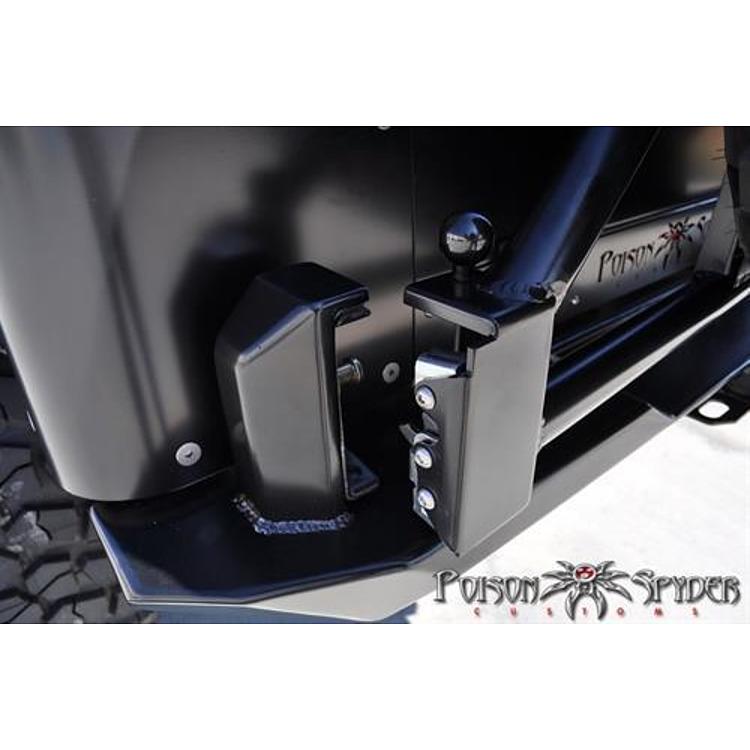

- Spring-loaded pin-lock with stainless steel slider plate
- Integrated receiver hitch, recovery use only
- License plate mount included
- Grade 8 mounting hardware
- Universal mounting for TJ/LJ, YJ and CJ
Carrier setup and handling
A rear bumper with a tire carrier moves weight to the back of the vehicle, and that changes how it handles on steep climbs, side slopes and tight turns. The spare’s height and distance from the body matter as much as its size. Setting the tire low and close to the vehicle keeps the load easier to control and reduces leverage on the hinge.
Before each trip, check the hinge hardware, the pin-lock and the carrier arm for play. A loose carrier will rattle and can wear the bearings faster than expected. Keep the tailgate path clear so the carrier can swing open fully when you need the rear hatch.
If the spare is heavier than the carrier was set up for, or if you change to a larger tire, recheck clearance against the body and the bumper before heading out. Wheel offset and backspacing affect clearance as well, so measure before you mount.
- Check hinge bolts after the first few trail runs
- Re-test pin-lock engagement before each trip
- Confirm clearance after any tire size change
Specifications
| Brand | Poison Spyder Customs |
|---|---|
| Part number | 14-61-020 |
| UPC | 614901726190 |
| Part type | Rear bumper with tire carrier |
| Material | 3/16″ plate steel, DOM tubing carrier |
| Finish | Bare steel |
| Tire carrier | Included, up to 40″ tires |
| Carrier bearings | Pair of Timken tapered roller bearings |
| Receiver | Integrated, not rated for towing |
| Shackle tabs | Not included |
| Mounting hardware | Grade 8 |
| License plate mount | Included |
Vehicle fitment
It fits the TJ/LJ, YJ and CJ Wrangler mounting range: the 1997–2006 Wrangler (TJ), 2004–2006 Wrangler (LJ) and 1987–1995 Wrangler (YJ), plus the CJ.
The tire carrier does not fit stock Jeep wheels, AEV wheels, or wheels with a center hole smaller than 2″ or more than 4-1/2″ of backspacing. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Measure your wheel for compatibility before choosing this carrier. The bumper arrives as bare steel for you to paint or powder coat in your own color.
What’s included
- Rear bumper
- Swing-out tire carrier
- License plate mount
- Grade 8 mounting hardware
Not included: shackle tabs.
