Overview

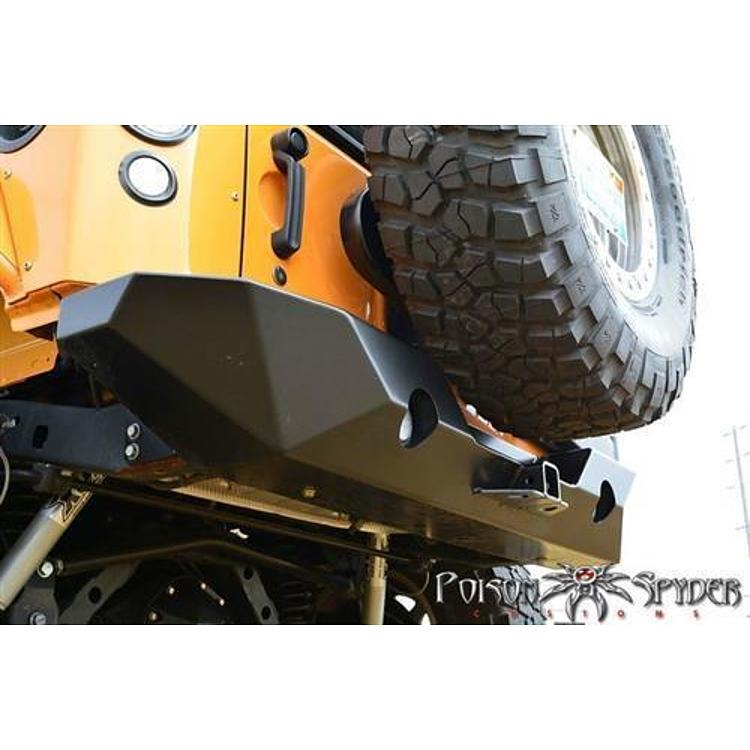

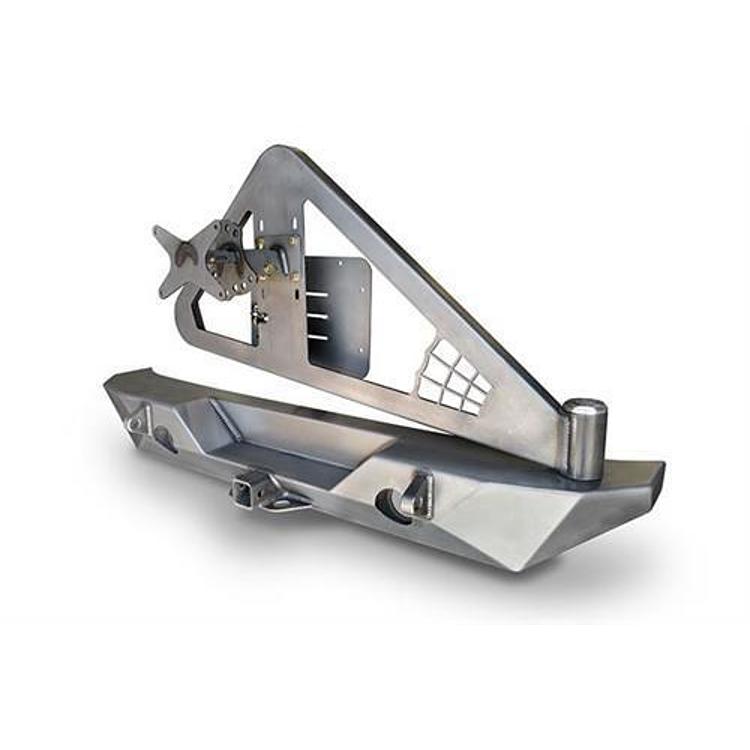

The Poison Spyder RockBrawler II rear bumper 17-62-020 is a bare-steel JK rear bumper with an integrated single-action tire carrier, made for the 2007–2016 Jeep Wrangler JK in 2-door and 4-door bodies. It is the newer evolution of the original RockBrawler.

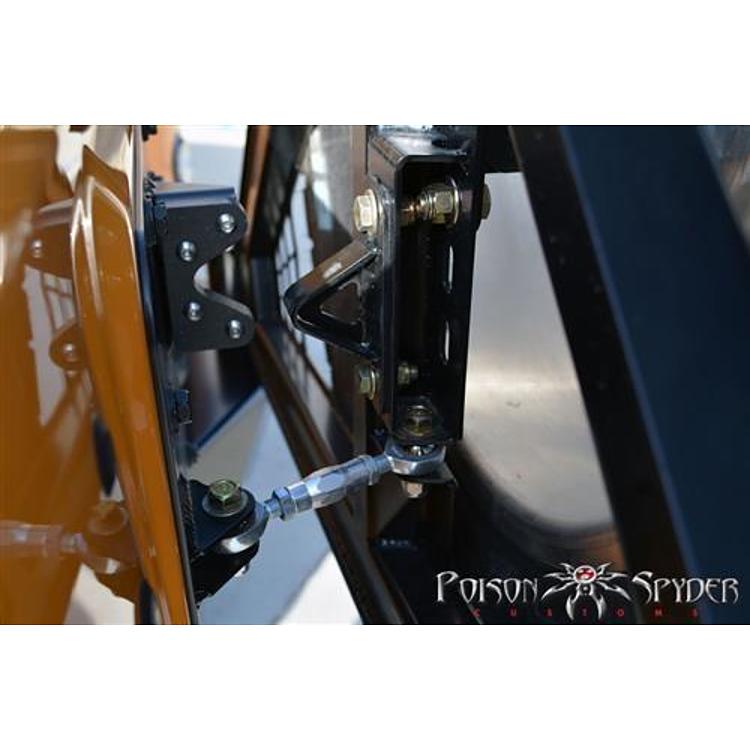

Rather than latching to itself, the tire carrier is tethered to the tailgate so the two open and close together. The bumper is slightly wider and deeper than the original RockBrawler for added corner protection, has an integrated hitch, and is made of 3/16 inch plate steel. Its recessed light buckets accept 2-1/2″ round clear LED lamps, which are not included.
The recessed light buckets protect lamps from rocks and aim the light rearward rather than into the bumper interior. Few JK rear bumpers offer backup lamp provisions, and fewer accept low-power LED lamps.
Key features
- Integrated single-action tire carrier tethered to the tailgate
- Integrated 2 inch receiver
- Built-in step/recess for rear cargo access
- Provisions for recessed backup lamps that accept 2-1/2″ round clear LED lamps
- 3/16 inch plate steel in bare finish
- Slightly wider and deeper than the original RockBrawler
Living with a rear tire carrier
A rear bumper with an integrated tire carrier adds weight at the back of the vehicle, which affects the tailgate, the hinges and the rear suspension over time. Check the tailgate hinges and latch after the first few trips, and confirm that the tire is secured on the carrier before driving on rough roads.
A tethered carrier means one action opens the tailgate and carrier together, but it also ties the tire and tailgate movement together. Keep the tire at the correct pressure, and keep the carrier’s pivot points clean and lubricated so the swing stays smooth. Water and grit can build up in the tire area over time.
- Check tailgate hinges and latch after the first trips
- Secure the spare before driving rough roads
- Lubricate the carrier pivot points
Specifications
| Brand | Poison Spyder Customs |
|---|---|
| Part number | 17-62-020 |
| UPC | 614901727364 |
| Product type | Rear bumper with integrated tire carrier |
| Material | 3/16 inch plate steel |
| Finish | Bare steel |
| Receiver hitch | Integrated 2 inch |
| Tire carrier | Yes, single-action |
| D-ring mount | Included |
| Backup lamps | Recessed buckets for 2-1/2″ round LED lamps; lamps not included |
| Fit type | Direct fit |
| Body styles | 2-door and 4-door |
Vehicle fitment
It fits the 2007–2016 Jeep Wrangler (JK), 2-door and 4-door.
Confirm fit for your vehicle’s year, model and trim before ordering, since the 2017–2018 Wrangler JK and other Wrangler generations fall outside this range.
Installation notes
The bumper arrives as bare steel and needs painting or powder coating before final installation; Poison Spyder does not offer a powder coat option for this version. The LED lamps can be wired into the reverse light circuit or to a separate dash switch.
What’s included
One RockBrawler II rear bumper with the integrated tire carrier, built-in receiver and D-ring mounts.
Not included: The LED lamps, part number PSC41-04-300, and paint or powder coat.
