Poison Spyder RockBrawler II Rear Bumper with Integrated Single-Action Tire Carrier (Black) – 17-62-020P1

Poison Spyder Customs

Shop Jeep Wrangler JK Rear Bumpers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2007–2016 Jeep Wrangler JK, 2-door and 4-door
  • Black powder-coated 3/16 inch plate steel
  • Tailgate-tethered single-action tire carrier and 2 inch receiver

Description

Overview

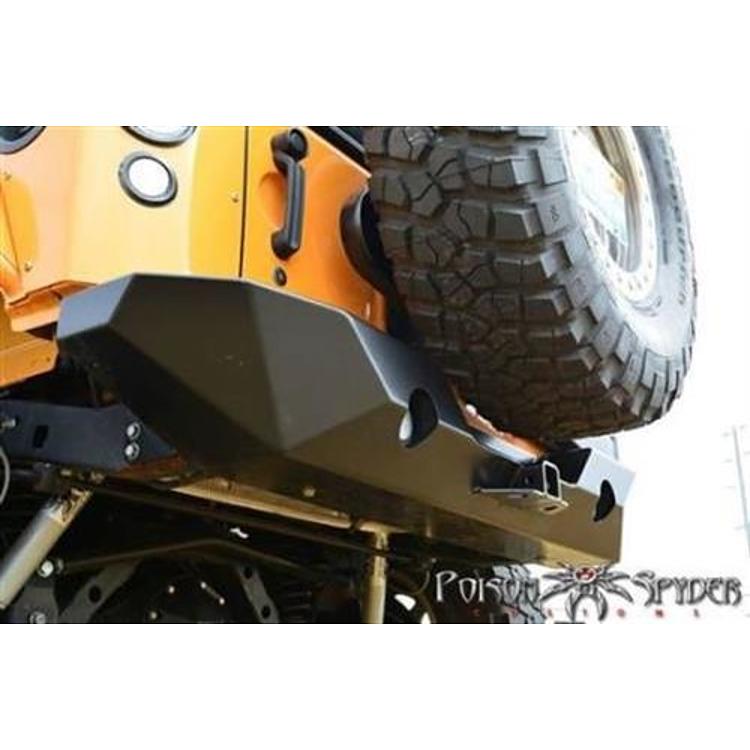

The Poison Spyder RockBrawler II rear bumper 17-62-020P1 is a black powder-coated JK rear bumper with an integrated single-action tire carrier. It fits 2007–2016 Jeep Wrangler JK models in 2-door and 4-door bodies. It is the powder-coated version of part 17-62-020.

The carrier connects to the tailgate for single-action opening. The bumper is slightly wider and deeper than the original RockBrawler. It is made from 3/16 inch plate steel, includes an integrated hitch, and has a step/recess for access to the cargo area.

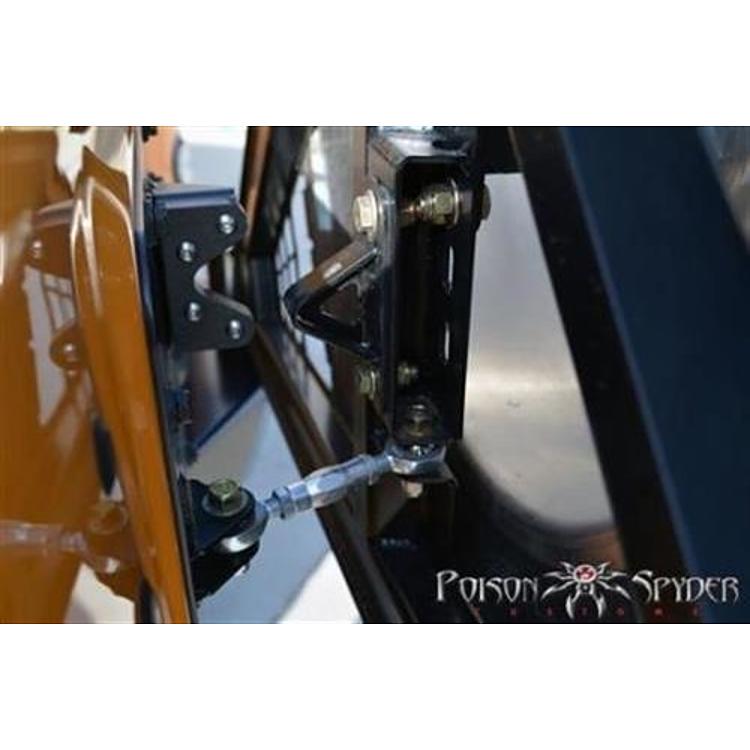

The RockBrawler II is the latest evolution in JK rear bumpers, with features added in response to owner requests and refinements from real-world use of the original RockBrawler. The tire carrier is tethered to the tailgate with a custom tie-rod assembly, a bumper mechanism and the Tramp Stamp, which keep both pieces aligned when open and tight and rattle-free when closed. The tailgate and carrier can be opened one-handed. The recessed light buckets protect the LED lamps from rocks and aim the light rearward.

Key features

  • Black powder-coat finish
  • Integrated single-action tire carrier that connects to the tailgate
  • Integrated 2 inch receiver
  • Built-in step/recess for cargo access
  • Provisions for recessed backup lamps
  • 3/16 inch plate steel construction

Keeping the tailgate hinge sound

A rear bumper with a swing-out tire carrier does more work than a plain bumper. The carrier’s weight is carried by the tailgate hinge and the tie-rod linkage, so both are loaded every time the tailgate opens. Over time, pivot bushings and bolts can loosen, and the carrier may begin to sag or rattle. Checking the pivot points every few months keeps the assembly tight and the tailgate aligned.

Tire size matters with any swing-out carrier. A heavier or larger spare puts more load on the hinge than a light one, so consider the carrier’s limits before mounting a larger tire. Rear bumpers also take the most abuse from brush, rocks and tree strikes on the trail, so inspect the welds and the plate steel after hard runs.

  • Check pivot bolts and tie-rod fasteners after the first few trail trips
  • Look for cracks around the tailgate mounting points
  • Wipe mud from the light buckets so the lamps stay visible
  • Touch up any chips in the powder coat promptly

Specifications

Brand Poison Spyder Customs
Part number 17-62-020P1
UPC 614901751628
Product type Rear bumper with integrated tire carrier
Material 3/16 inch plate steel
Finish Black powder coat
Receiver hitch Integrated 2 inch
Tire carrier Yes, single-action
D-ring mount Included
Fit type Direct fit
Body styles 2-door and 4-door

Vehicle fitment

It fits the 2007–2016 Jeep Wrangler (JK) in 2-door and 4-door form.

Fit covers 2007–2016 Wrangler JK models only. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

The recessed buckets accept 2-1/2″ round clear LED lamps, which are not included. They can be wired into the reverse light circuit or to a separate dash switch for use as a loading or utility light.

What’s included

One RockBrawler II rear bumper with integrated tire carrier and D-ring mounts, finished in black powder coat.

Not included: The LED lamps, which carry part number PSC41-04-300.

SKU: PSC17-62-020P1 Category:

Specification

Shipping weight 158.00 lbs
Package dimensions 68.00 × 25.00 × 19.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201670th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is the difference between the 17-62-020 and 17-62-020P1?

The 17-62-020P1 has a black powder coat finish, while the 17-62-020 is bare steel. Both are RockBrawler II bumpers with the integrated tire carrier.

Does the RockBrawler II 17-62-020P1 include backup lamps?

No. The LED lamps do not come with the bumper and must be purchased separately, part number PSC41-04-300. The bumper has recessed buckets that accept them.

Which Wranglers does the 17-62-020P1 fit?

It fits the 2007–2016 Jeep Wrangler JK, in both 2-door and 4-door Unlimited models. Confirm fit for your vehicle's year, model and trim before ordering.

How do I know if the tailgate carrier linkage needs attention?

Look for looseness, rattling or sagging when the tailgate opens. Tighten the fasteners first. If the carrier still moves out of line, check the tie-rod and pivot points for wear before continuing to use it on rough terrain.
