Poison Spyder Cage Web Gusset – 43-43-014-W

Poison Spyder Customs

Shop Poison Spyder Customs Gussets Tabs on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Cage web gusset, 3-1/2 by 3-1/2 inches, cut from 3/16 inch steel
  • Designed for a 100 degree tubing joint
  • Spyder web design; sold as a pair

Description

Overview

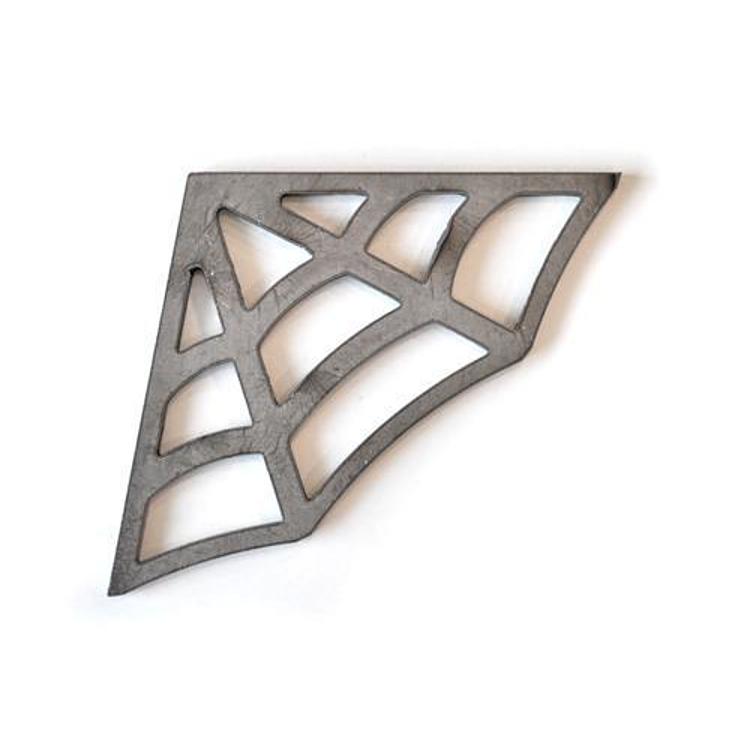

The Poison Spyder cage web gusset (part number 43-43-014-W) adds strength to a roll cage at a tube joint, and it carries the Spyder web design. The gussets are CNC laser cut from 3/16 inch plate steel and measure 3.5 inches by 3.5 inches.

This part number is for gussets that fit a 100 degree tubing joint. Two gussets are included, so the pair covers two joints. The gussets are welded into the cage.

Key features

  • CNC laser cut 3/16 inch plate steel
  • 3.5 inches by 3.5 inches
  • Spyder web design
  • For a 100 degree tubing joint
  • Two gussets per set

Fitting gussets to the cage

Cage gussets stiffen a tube joint by spreading load across a larger area of steel, so the joint is less likely to flex under hard trail use. The gusset works best when the tubes are cleanly coped and fully seated against the plate before any weld is made. Gaps at the joint are the most common reason a gusset sits poorly, so fit it dry first.

Weld in short passes and let the joint cool between them to limit distortion of the cage. Gussets on both sides of a joint should be welded evenly so the tubes do not pull out of square. After welding, check that the cage still lines up with the mounting points before the seats and body are fitted.

  • Fit dry before welding
  • Tack each side, then finish welds evenly
  • Check the cage for square after cooling
  • Inspect welds for cracks after early trail use

Specifications

Brand Poison Spyder Customs
Part number 43-43-014-W
UPC 614901728484
Type Cage gusset
Material 3/16 inch plate steel
Size 3.5 inches by 3.5 inches
Angle 100 degree tubing joint
Quantity Two gussets, sold as a pair

Vehicle fitment

Fit depends on the joint angle rather than the vehicle. The gussets are sized for a 100 degree tubing joint in a cage, so the angle of your joint has to match before welding.

Installation notes

The gussets are welded into the cage at the tube joint. Test the fit to the joint before welding, since the angle has to match the tubing.

What’s included

Two CNC laser cut 3/16 inch steel gussets for 100 degree tubing joints.

SKU: PSC43-43-014-W Category:

Specification

Shipping weight 5.00 lbs
Package dimensions 12.00 × 8.00 × 8.00 in
brands

Questions & Answers

What angle joint are these gussets for?

They are for a 100 degree tubing joint. Check the joint angle of your cage before ordering, since the angle has to match the tubing.

How big are the gussets?

Each gusset measures 3.5 inches by 3.5 inches and is cut from 3/16 inch plate steel. The gussets are CNC laser cut and carry the Spyder web design.

How many come in a set?

Two gussets are included, sold as a pair, and this part number is for a 100 degree tubing joint. Check the joint angle before ordering.

Can gussets be added to a cage that is already welded in place?

Yes, but it is harder. Grinding and fit-up are awkward once the cage is installed, so access to the joint and the surrounding tubes needs checking first. Remove the paint at the joint so the new weld has clean steel to bond to.
