Overview

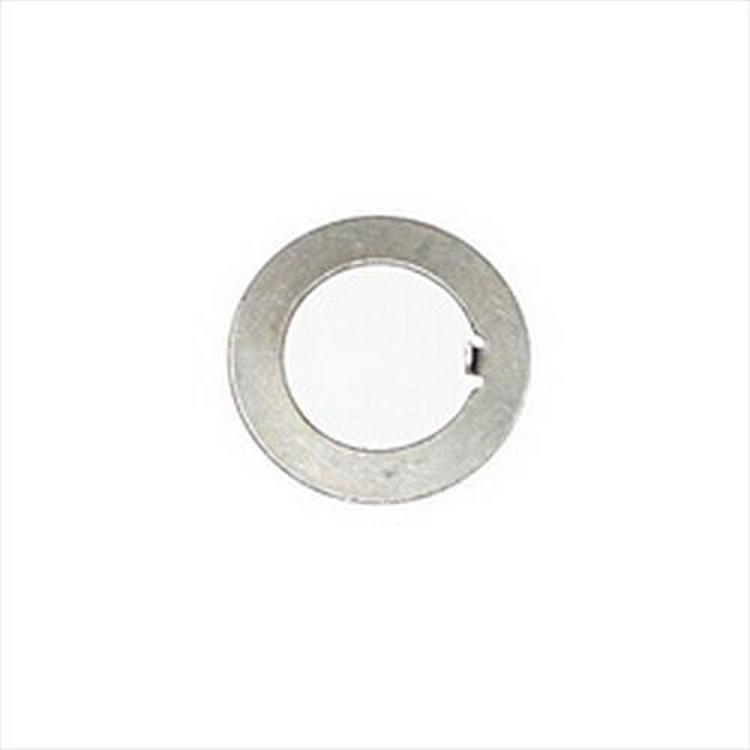

It is a wheel bearing nut washer for the rear Dana 27 full floating axle. It fits the 1946-1947 Willys CJ-2 and the 1941-1942 Willys MB. It is supplied as a single washer.
A wheel bearing nut washer sits between the bearing nut and the bearing on a full floating axle, keeping the nut from damaging the bearing. It is built to original specifications and carries a limited five year warranty.
Confirm which hub you are working on, since this washer is for the rear axle position, before installing it.
Key features
- Wheel bearing nut washer
- For the rear Dana 27
- Full floating type
- Supplied individually
- It fits the Willys CJ-2 and Willys MB models.
Before you install
A bearing nut washer on a full floating axle works as a buffer between the nut and the bearing. When the nut is tightened, its face can dig into a bearing race or cage if the washer is missing, worn or damaged, so inspect it each time the hub is opened. Look for flattened areas, cracks, burrs or heat discoloration. Replace the washer if any of these are present, and keep the bearing nut and spindle surfaces clean before reassembly.
Full floating axles carry the vehicle weight through the hub bearings, so bearing preload matters. Set preload to the specification in the service manual, then check that the hub turns freely without play. Pair the washer with a new bearing nut when the old nut shows rounded threads or a damaged face. Grease the bearings during reassembly and check the seal for leaks after the first drive.
- Inspect the washer for cracks and flat spots
- Clean the spindle threads before fitting
- Replace a washer with burrs or heat marks
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 16710.04 |
| UPC | 804314068578 |
| _pn | 16710.04 |
| Part type | Wheel bearing nut washer |
| Axle | Dana 27 rear |
| Axle style | Full floating |
| Quantity | One washer |
| Position | Rear |
| Fit type | Direct fit (Omix-ADA) |
Compare the washer dimensions and material against the original before installing.
Vehicle fitment
It fits two wartime and postwar models.
The manufacturer fitment list for part 16710.04 covers: 1946–1947 Jeep Willys CJ-2; 1941–1942 Willys MB.
Not listed: later CJ models, the Wrangler, and years other than 1946-1947 for the CJ-2 and 1941-1942 for the MB. Confirm your vehicle’s year, model and trim before ordering.
What’s included
- One wheel bearing nut washer
