Omix-ADA Manual Steering Pitman Arm – 18006.06

Omix-Ada

Shop Jeep Wrangler TJ Pitman Arms on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1997–1998 Jeep Wrangler TJ (SE, Sahara, Sport)
  • Manual steering only
  • Stock replacement, no drop
  • Omix-ADA part number 18006.06

Description

Overview

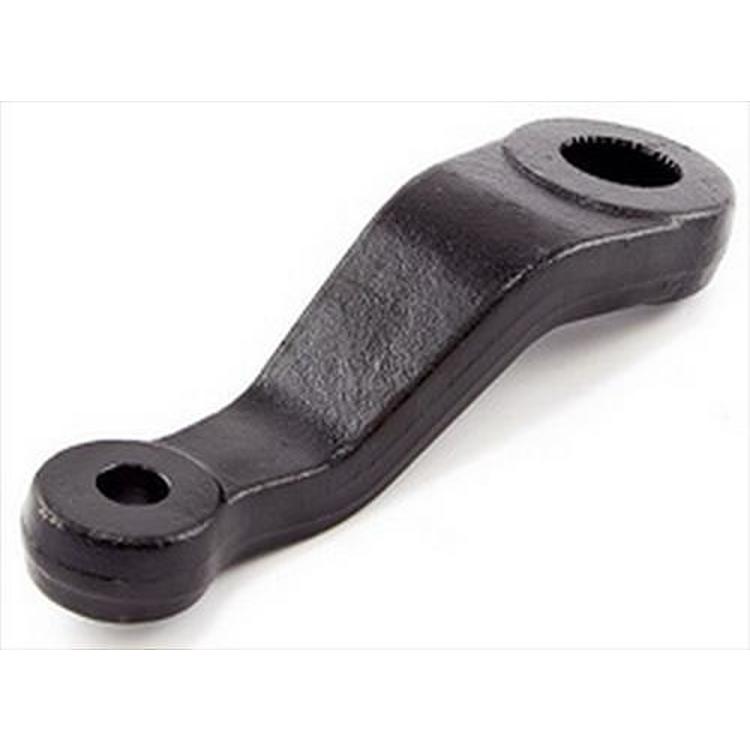

The Omix-ADA 18006.06 is a manual steering pitman arm for the 1997–1998 Jeep Wrangler (TJ) in SE, Sahara and Sport trims, supplied as a direct stock replacement with no drop.

It is built to original specifications as a direct OE replacement, with a limited five year warranty. It is for manual steering only, which makes it a narrow fit among Wrangler arms.

A pitman arm is the lever on the steering box shaft that moves the drag link. When a factory arm is worn, loose or damaged, a like-for-like replacement such as the 18006.06 returns the linkage to its original geometry.

It covers only two model years and three trims, so it should not be assumed to fit a later TJ. Power steering Wranglers need a different arm.

Omix-ADA’s note on the arm is brief, so the practical checks are the steering box type, the model year and the trim. A Wrangler SE, Sahara or Sport from 1997 or 1998 with a manual box matches, and anything else needs a different arm. Since no drop is involved, the 18006.06 also suits trucks that have not been lifted at all.

Key features

  • Manual steering pitman arm, for manual steering only
  • Built to original specifications for a direct OE replacement fit.
  • Stock replacement with no drop
  • Direct fit
  • Limited five year warranty.

Manual steering linkage basics

A manual steering box has no hydraulic assist, so the linkage carries the full effort of every turn. The pitman arm transfers that motion to the drag link, which means any looseness at the arm shows up quickly as vague steering. Because manual boxes are often older, the sector shaft and its bushings should be checked alongside the arm.

When fitting a new arm, mark the orientation of the old one on the shaft and transfer it to the new arm before removing the nut. Make sure the arm moves without binding through its full range, and recheck the drag link and steering box for play after the first drive.

  • Mark the arm position before removal
  • Check the steering box shaft for play
  • Recheck the nut after the first drive

Specifications

Brand Omix-Ada
Part number 18006.06
UPC 804314053048
Product type Manual steering pitman arm
Amount of drop Stock replacement
Fit type Direct fit
Steering type Manual steering
Warranty Limited five year warranty.

Vehicle fitment

It fits the 1997–1998 Jeep Wrangler TJ in the trims below.

  • 1997–1998 Jeep Wrangler (TJ) (SE, Sahara, Sport)

Later TJ years, the LJ and power steering Wranglers are not covered. Check fit against your vehicle’s year, model and trim before buying.

Installation notes

It is a direct fit for manual steering. Use the correct torque value for your vehicle and have the steering checked by a qualified technician after fitting.

What’s included

One manual steering pitman arm. Check the package contents for a nut or washer before installing.

SKU: OAI18006.06 Category:

Specification

Shipping weight 2.00 lbs
Package dimensions 8.00 × 3.00 × 2.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)1997–1998SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Can the Omix-ADA 18006.06 be used with power steering?

No. The 18006.06 is for manual steering only. A power steering TJ needs the power steering pitman arm, part number 18006.05, instead.

Which Wranglers does the 18006.06 fit?

It is for the 1997–1998 Jeep Wrangler TJ in SE, Sahara and Sport trims only. No later TJ years are covered.

Is the 18006.06 a drop pitman arm?

No. Its amount of drop is stock replacement. It restores the factory arm and is not made for correcting steering geometry on a lifted Wrangler.

Does a manual steering arm need a special nut torque?

Torque values differ by vehicle, so look up the correct value for your model before tightening. Use a torque wrench, tighten the nut to that value and recheck it after the first drive.

Can a worn pitman arm be repaired instead of replaced?

Usually not. A bent or worn arm changes the geometry of the linkage and should be replaced rather than straightened. A matching replacement restores the factory path for the drag link.
