Crown Automotive Dana Model 20 Pinion Adjusting Shim Kit – 3205533K

Crown Automotive

$28.75In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 1:10 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pinion adjusting shim kit for AMC Model 20 axles
  • Crown Automotive part number 3205533K
  • Fits CJ-5, CJ-7, J10, Scrambler and Wagoneer models
  • Direct fit for the AMC Model 20 axle

Description

Overview

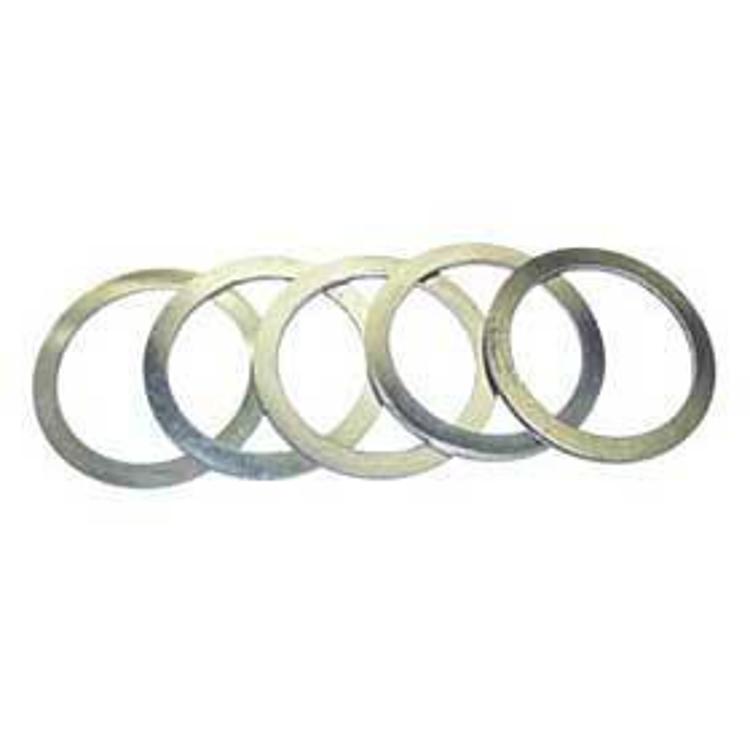

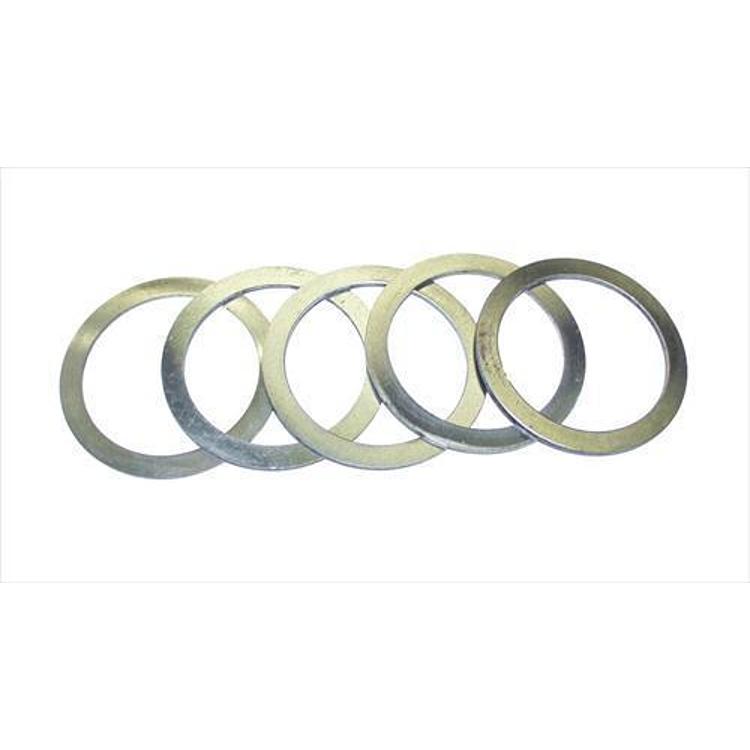

The Crown Automotive 3205533K is a pinion adjusting shim kit for the AMC Model 20 axle. Pinion shims set the pinion position in the carrier during gear setup.

Fitting covers the 1976–1983 CJ-5, the 1976–1986 CJ-7, the 1974–1986 J10, the 1981–1985 Scrambler and the 1979–1986 Wagoneer (SJ).

Key features

  • Pinion adjusting shims
  • AMC Model 20 application
  • Direct fit for the AMC Model 20 axle

Gear setup basics

Pinion depth controls where the drive gear tooth contact sits in the carrier. The shims move the pinion in or out, and the right thickness is found by checking the contact pattern with marking compound rather than by measurement alone. Once the pattern is correct, the bearing preload is set so the gears turn smoothly without play.

Gear setup is precise work, and small errors in shim thickness can cause noise or early tooth wear. Keep the shim stack clean and record the thickness used, so any change can be traced. Inspect the bearings, the crush sleeve and the yoke seal whenever the pinion has been removed.

  • Check the contact pattern before final assembly
  • Record the shim thickness used
  • Inspect the bearings and yoke seal when the pinion is out

Specifications

Brand Crown Automotive
Part number 3205533K
UPC 848399075595
Axle AMC Model 20
Kit type Pinion adjusting shims

Vehicle fitment

It fits the 1976–1983 Jeep CJ-5 (Base, Golden Eagle, Laredo, Limited and Renegade), 1976–1986 Jeep CJ-7, 1974–1986 Jeep J10, 1981–1985 Jeep Scrambler and 1979–1986 Jeep Wagoneer (SJ).

The list does not include the Cherokee or any Wrangler model.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Pinion shim thickness is selected during gear setup, which a professional normally handles.

What’s included

One pinion adjusting shim kit, Crown Automotive part number 3205533K.

SKU: CRO3205533K Category:

Specification

Shipping weight 1.00 lbs
Package dimensions 3.00 × 3.00 × 1.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51976–1983Base, Golden Eagle, Laredo, Limited, Renegade
Jeep CJ71976–1986Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade
Jeep J101974–1986Base
Jeep Scrambler1981–1985Base, Laredo, Renegade, SL, SR
Jeep Wagoneer (SJ)1979–1986Base, Brougham, Limited

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is this kit for an AMC Model 20 or a Dana Model 20?

The kit is made for the AMC Model 20 axle. Confirm the axle maker on your vehicle before installing the shims, since the shim thickness depends on the carrier.

What does a pinion shim kit do?

It sets the pinion position in the carrier during gear setup, so the gear mesh is correct. The shim thickness is usually chosen during setup by a professional who checks the gear pattern.

Which Jeep models are listed?

Fitment covers the 1976–1983 CJ-5, 1976–1986 CJ-7, 1974–1986 J10, 1981–1985 Scrambler and 1979–1986 Wagoneer (SJ). Cherokee and Wrangler models are not among the models covered.

Can the shim thickness be picked without a gear pattern check?

It is better to check the gear pattern. Pinion depth affects tooth contact, and noise or early wear can follow from a poor choice. A professional setup, or careful measurement, reduces that risk.

Are the pinion bearings replaced with the shims?

Often, yes, when the pinion has been removed for service. Inspect the bearings, the crush sleeve and the yoke seal before reassembly, and replace any part that shows wear.
