Omix-ADA Dana 44 Axle Outer Axle Seal – 16534.02

Omix-Ada

$10.91In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 6:10 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear outer axle seal for Dana 44 rear axles.
  • Omix-ADA lists fitment for 1970 to 1975 CJ5, 1986 CJ7, 1993 to 1998 Grand Cherokee ZJ and 1997 to 2006 Wrangler TJ.
  • Part number 16534.02, UPC 804314021467.

Description

Overview

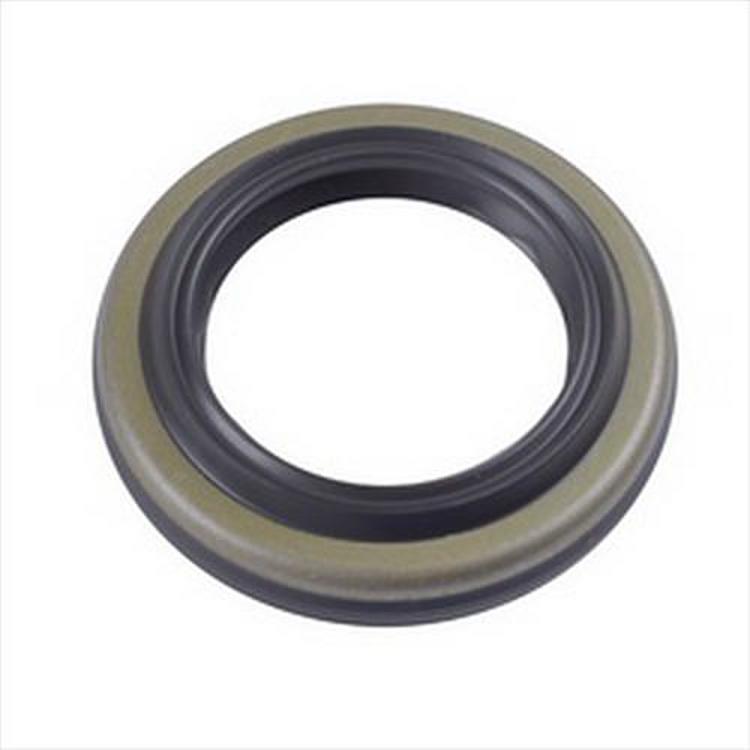

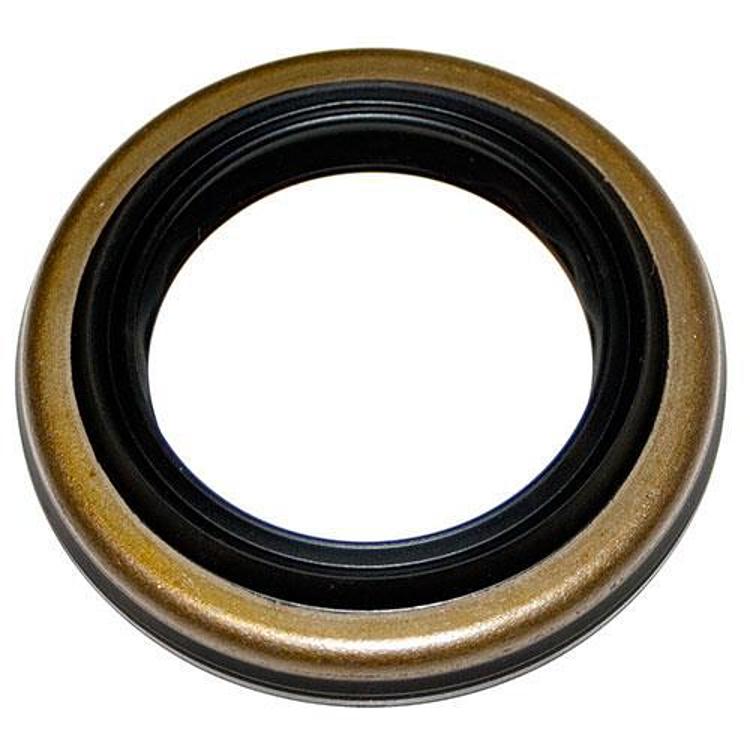

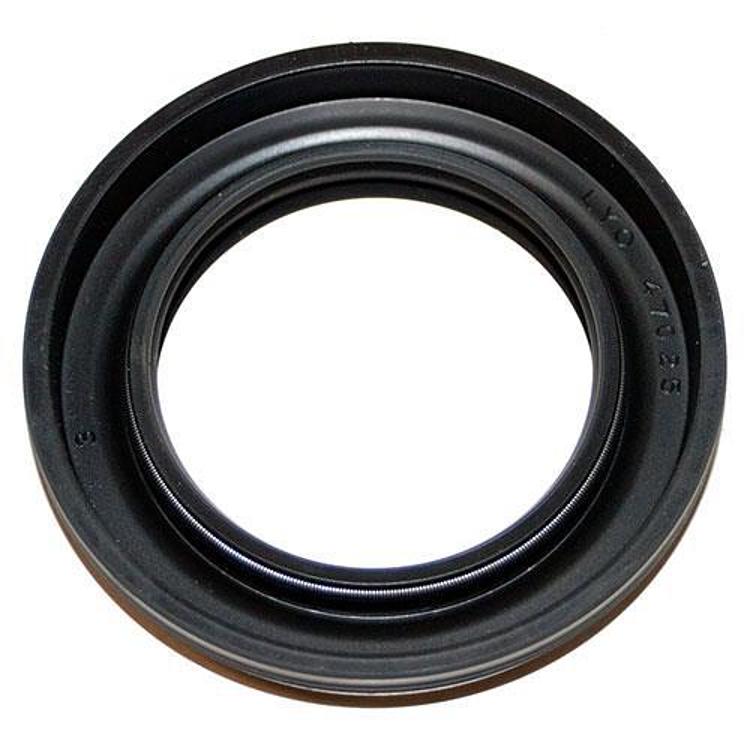

It is a rear outer axle seal for the Dana 44 rear axle. It fits the 1970 to 1975 Jeep CJ5, the 1986 Jeep CJ7, the 1993 to 1998 Jeep Grand Cherokee ZJ and the 1997 to 2006 Jeep Wrangler TJ, except the 2002 model year.

It sits at the outer end of the axle tube and keeps gear oil and grease inside the axle housing. It is placed at the rear outer position.

Rear outer seal in service

The rear outer seal is the barrier between the axle housing and the outside at the end of the axle tube. Its lip rides on the shaft, so the seal wears with time, heat and debris. Once it fails, gear oil can seep onto the brake area and the wheel, which is an early sign to inspect the seal.

Replacing the seal is best done with the axle shaft out, so the seal bore and shaft surface can be cleaned and checked. Light scoring on the shaft is a common reason a new seal leaks, so polish it before reinstalling. Use a driver that seats the seal evenly, and refill the axle to the level recommended for the vehicle.

  • Check the shaft surface for grooves
  • Look for oil on the brake drum or hub
  • Refill the axle to the correct level after service

Specifications

Brand Omix-ADA
Part number 16534.02
UPC 804314021467
Axle Dana 44 rear
Position Rear outer

Vehicle fitment

It fits the 1970 to 1975 Jeep CJ5 (Base and Renegade), the 1986 Jeep CJ7 (Base, Laredo and Renegade), the 1993 to 1998 Jeep Grand Cherokee ZJ in trims including Base, Laredo and Limited, and the 1997 to 2001 and 2003 to 2006 Jeep Wrangler TJ in Rubicon, SE, Sahara and Sport trims.

The 2002 Wrangler TJ year is not in the list, and neither are the YJ, LJ or JK. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One rear outer axle seal, with no bearing or retainer included.

SKU: OAI16534.02 Category:

Specification

Shipping weight 0.19 lbs
Package dimensions 2.30 × 2.30 × 0.50 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51970–1975Base, Renegade
Jeep CJ71986Base, Laredo, Renegade
Jeep Grand Cherokee (ZJ)1993–19985.9 Limited, Base, Laredo, Limited, Orvis, SE, TSi
Jeep Wrangler (TJ)1997–2001, 2003–2006Rubicon, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What does the Omix-ADA 16534.02 seal do?

It is a rear outer axle seal for the Dana 44 rear axle, placed at the rear outer position. It keeps lubricant inside the axle housing and fits the CJ5, CJ7, Grand Cherokee ZJ and Wrangler TJ.

Does this seal fit a Grand Cherokee ZJ?

Yes. It fits the 1993 to 1998 Jeep Grand Cherokee ZJ, including Base, Laredo, Limited and SE trims. Confirm your vehicle's year, model and trim before ordering.

Is the 2002 Wrangler TJ covered?

The 2002 Wrangler TJ is not covered. The fit runs 1997 to 2001 and 2003 to 2006 instead. Check your model year before ordering.

Are other seals often replaced together with this one?

Yes. The other end of the axle is often worked on at the same time, so its seal can be checked then. If one side has leaked, the opposite seal may be near the end of its life too. Inspecting both ends at once saves a second teardown.
