Overview

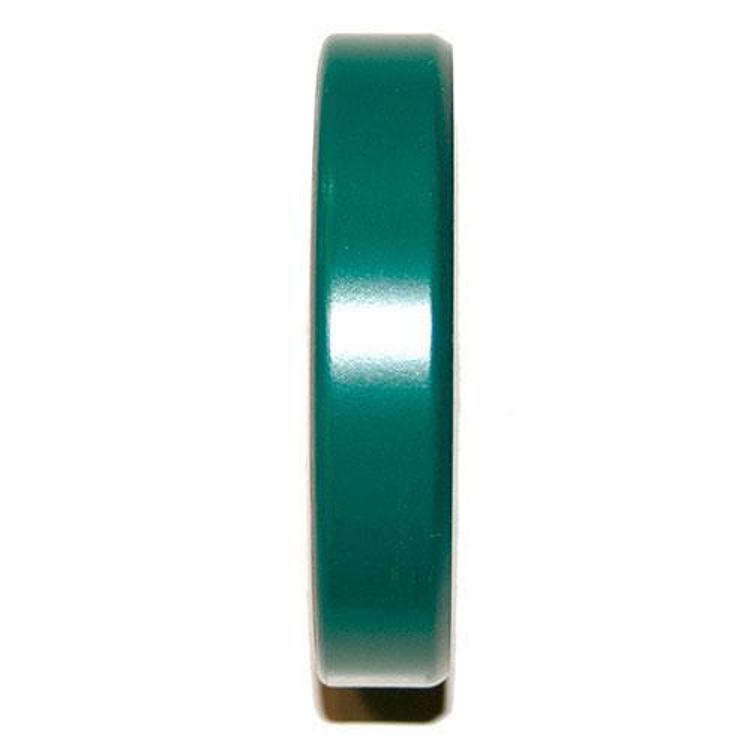

It is an axle seal for Dana 35 and Dana 44 axles and fits either the driver or passenger side. It is sold individually and fits the 1997 to 2000 Jeep Wrangler TJ and the 1990 to 1995 Jeep Wrangler YJ.
It sits at the outer end of the axle tube and keeps lubricant in the housing. It is placed at the rear outer position.
Driver and passenger side use
Because this seal works on either side, the choice comes down to which axle end is leaking. Check both ends of the axle when one seal is replaced, since the opposite side has seen the same years of heat and road debris. Matching the seal to the Dana 35 or Dana 44 housing is the first thing to confirm.
The seal sits at the outer end of the axle tube, so the shaft must be removed for a proper replacement. Clean the bore and inspect the shaft’s sealing surface for grooves. A seal pressed in square with a proper driver resists early leaks, and fresh gear oil at the correct level finishes the job.
- Confirm the Dana 35 or Dana 44 housing
- Inspect both axle ends
- Refill to the correct fluid level
Specifications
| Brand | Omix-ADA |
|---|---|
| Part number | 16534.11 |
| UPC | 804314033170 |
| Axle | Dana 35 and Dana 44 |
| Side | Driver or passenger |
| Position | Rear outer |
| Quantity | Sold individually |
Vehicle fitment
It fits the 1997 to 2000 Jeep Wrangler TJ in the SE, Sahara and Sport trims, and the 1990 to 1995 Jeep Wrangler YJ in the Base, Islander, Laredo, Renegade, Rio Grande, S, SE and Sahara trims.
The list does not include the Wrangler LJ or JK, or any Cherokee or Grand Cherokee model. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One axle seal, sold individually, with no bearing or retainer included.
