Overview

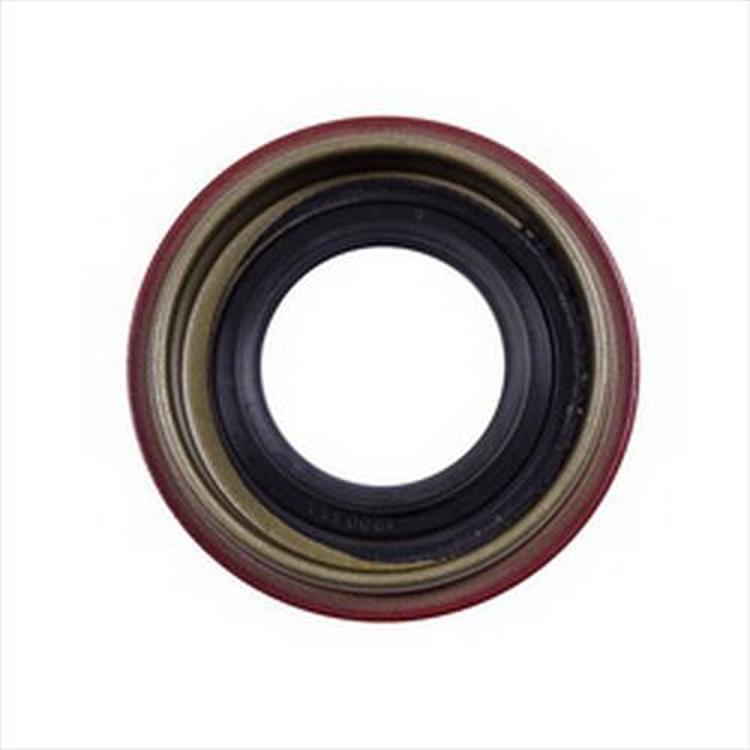

The Omix-ADA 16521.01 is a pinion oil seal for Dana 25, Dana 27 and Dana 30 axles. It seals the pinion shaft to keep gear oil in the carrier.
The seal fits Jeep CJ from 1945-86, YJ from 1987-95, TJ from 1997-03 with Model 30 axles only, Grand Cherokee from 1992-98, and XJ Cherokee from 1985-00 with nondisconnect axles or 1984-91 with disconnect axles. Match the application carefully before ordering.
Key features
- Pinion oil seal for Dana 25, 27 and 30 axles
- Direct fit design for Dana 25, 27 and 30 axles.
- Applications are given by year, with the TJ entry limited to Model 30 axles.
- TJ entry limited to Model 30 axles
Pinion seal wear and replacement
The pinion seal sits where the driveshaft turns the pinion gear, so it sees constant rotation and heat. Worn seals usually leak gear oil at the yoke and run down the driveshaft or onto the axle housing. Check for fresh oil at the pinion area after a drive, and look for play or noise in the driveshaft joint, since a loose yoke can wear the seal faster.
Replacing the seal is a good time to check the pinion yoke for grooves, because a grooved yoke will tear a new seal quickly. Use a seal driver so the new seal sits square and does not get pushed in crooked. Fill the carrier to the correct level once the job is done, and check for leaks after a short drive.
- Look for oil at the yoke and pinion area
- Check the yoke surface for grooves
- Use a seal driver to set the seal square
Specifications
| Brand | Omix-ADA |
|---|---|
| Part number | 16521.01 |
| UPC | 804314021917 |
| Axle types | Dana 25, Dana 27, Dana 30 |
| Fitment type | Direct fit |
| Listed applications | CJ 1945-86; YJ 1987-95; TJ 1997-03 (Model 30 only); Grand Cherokee 1992-98; XJ Cherokee 1985-00 (nondisconnect axle) and 1984-91 (disconnect axle) |
Vehicle fitment
Fitment is written as a list of applications. CJ, YJ, TJ, Grand Cherokee and XJ Cherokee applications are given with years, and the TJ entry is limited to Model 30 axles.
Grand Cherokee and XJ Cherokee axle versions differ, so the disconnect detail matters. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The XJ and Grand Cherokee applications depend on axle version, either nondisconnect or disconnect, so check which axle your vehicle has before ordering.
What’s included
The part is a pinion oil seal, so the seal is the only piece to expect.
