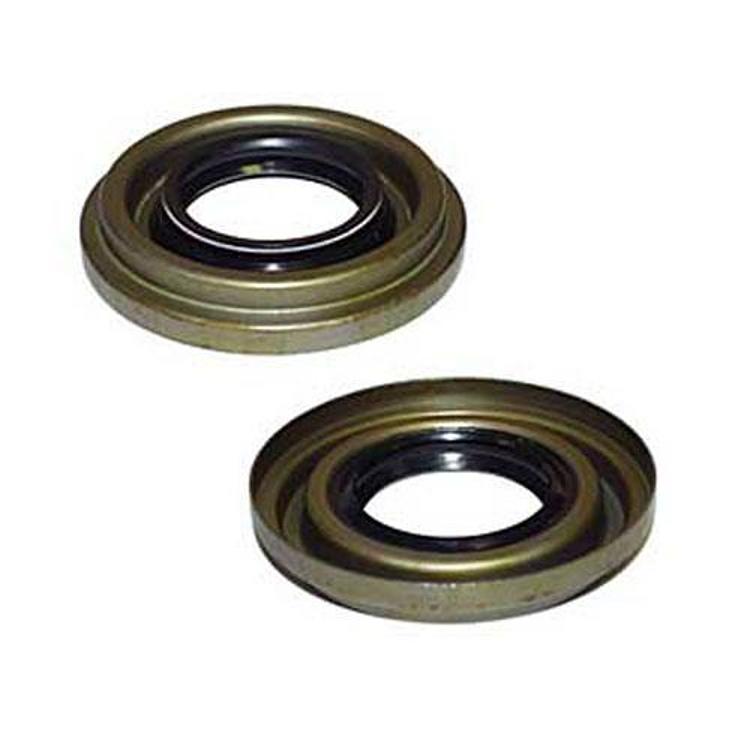

Crown Automotive Dana 30/44 Pinion Seal – 83503390

Crown Automotive

$8.99In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 7:00 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Crown Automotive Dana 30/44 pinion seal 83503390
  • Fits 1991 to 1993 MJ Comanche with Dana 44 and locking differential
  • UPC 848399025422

Description

Overview

The Crown Automotive Dana 30/44 pinion seal, part number 83503390, is a pinion seal for the 1991 to 1993 MJ Comanche with a Dana 44 and locking differential.

This seal fits the Dana 44 with a locking differential for the Comanche. Confirm which axle your vehicle has before ordering.

Key features

  • Pinion seal for Dana 44 axles with locking differential
  • Fits the 1991 to 1993 MJ Comanche
  • Direct fit for the 1991 to 1993 MJ Comanche
  • Crown Automotive replacement part

Pinion seal replacement planning

The pinion seal sits at the front of the differential where the driveshaft yoke turns. It keeps gear oil inside the housing while the pinion rotates, so a worn seal usually shows up as oil on the outside of the carrier or on the driveshaft yoke. Leaks that go unchecked can drain the gear oil and damage the pinion bearings, which are costly to repair.

Because the yoke usually comes off for this job, plan the work around the pinion nut and preload. Mark the yoke and nut position before removing them, and replace the crush sleeve or collapsible spacer if the design uses one, since reusing it can change preload. Check the yoke for wear where the seal rides, and clean the carrier surface so the new seal sits flat.

  • Look for gear oil on the carrier or driveshaft yoke
  • Mark the pinion nut and yoke before removing them
  • Check the yoke sealing surface for grooves or wear
  • Refill with the correct gear oil after the seal is installed

Specifications

Brand Crown Automotive
Part number 83503390
UPC 848399025422
Seal type Pinion seal
Axle Dana 44 with locking differential
Vehicle 1991 to 1993 MJ Comanche
Fitment label Direct fit

Vehicle fitment

It fits one vehicle: the 1991 to 1993 MJ Comanche with a Dana 44 and locking differential.

Comanche years outside 1991 to 1993, and Dana 44 axles without a locking differential, are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Plan for a driveline disconnect, since the pinion yoke usually has to come off to replace this seal.

What’s included

The package is the pinion seal only.

SKU: CRO83503390 Categories: ,

Specification

Shipping weight 1.00 lbs
Package dimensions 4.00 × 4.00 × 2.00 in
brands

Questions & Answers

Does Crown 83503390 fit a 1991 Comanche?

Yes, for the 1991 to 1993 MJ Comanche with a Dana 44 and locking differential. Confirm that your axle has a locking differential before ordering, since the title also mentions Dana 30.

Is this seal for a Dana 30?

No, this seal is for the Dana 44 with a locking differential. The fit covers the Comanche only, so check your axle before ordering.

What is the part number and UPC for this pinion seal?

Part number 83503390 and UPC 848399025422 identify this Dana 30/44 pinion seal. It is a single seal, so plan any other driveline parts you need separately before installing it.

How can I tell if the pinion seal needs replacing?

Look for gear oil on the outside of the differential carrier or on the driveshaft yoke. A pinion seal that seeps should be replaced before the gear oil runs low and the bearings are damaged.

Should the pinion yoke be replaced along with the seal?

Not always. Inspect the yoke for grooves or wear where the seal rides, since a worn surface can leak even with a new seal. Replace the yoke if the sealing area is damaged.
