Overview

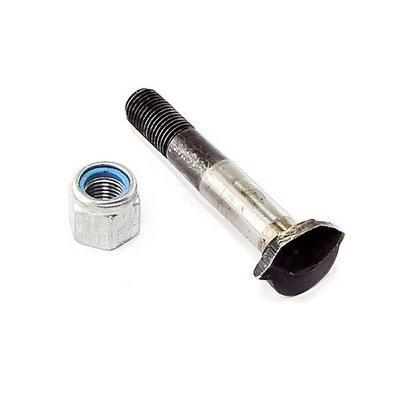

The Omix-Ada connecting rod bolt and nut, part number 17470.12, fits the 4 cylinder 134 engine. It fits Willys and Jeep models from 1941 to 1971, including Willys CJ-2, CJ-3, CJ-5, CJ-6, DJ-3 and MB models, plus Jeep CJ3, CJ5, CJ6, DJ5, FC and Jeepster models.
Key features
- Connecting rod bolt and nut for the 4 cylinder 134 engine
- Part number 17470.12
- Fits Willys and Jeep models from 1941 to 1971
- Designed for the rod cap and rod joint of this engine
Rod hardware basics
Connecting rod fasteners clamp the rod cap to the rod, so their job is to hold tension under constant load. Many rod bolts are designed to stretch when torqued, which means they are generally replaced rather than reused. Inspect the threads and shank for damage, and replace any fastener that shows stretching or a bend.
Torque is the key step. Clean the threads and the bolt seats, use the lubricant the procedure calls for, and tighten in the stages given. Once the engine is running, check for oil leaks at the pan and watch for unusual noise during the first warm-up. For older 4 cylinder 134 engines, a careful build and fresh hardware help avoid rod failure.
- Replace stretched or damaged fasteners
- Clean bolt seats and threads
- Torque in the stages the procedure gives
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 17470.12 |
| Type | Connecting rod bolt and nut |
| Engine | 4 cylinder 134 |
Vehicle fitment
It fits Willys MB, Willys CJ-2, CJ-3, CJ-5, CJ-6, DJ-3, 1-Ton, 463, 473, Truck, Panel, Utility Wagon, Sedan Delivery and FJ models from 1941 to 1958, and Jeep CJ3, CJ5, CJ6, DJ3, DJ5, DJ6, F4, FC150, FC170, Dispatcher, Utility, Commando and Jeepster models from 1957 to 1971.
CJ7 and later Jeep models and Cherokee models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Rod hardware is torque-sensitive, so an engine builder should confirm the specification before reassembly.
What’s included
Check the quantity of bolts and nuts against your rod hardware needs before starting.
