Omix-ADA Carburetor Repair Kit – 17705.06

Omix-Ada

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Omix-Ada carburetor repair kit, part number 17705.06
  • For Carter one-barrel carburetors on 134 F-head engines
  • Listed to include all parts needed for a carburetor rebuild
  • Fits 1953-1971 Jeep Willys, CJ, DJ, J-series and related models

Description

Overview

The Omix-Ada carburetor repair kit 17705.06 is a rebuild kit for Carter one-barrel carburetors on 134 F-head engines. It fits Willys, CJ, DJ, FC, Gladiator, Jeepster, Commando, Utility and J-series models from 1953 to 1971.

The kit is sold as a complete rebuild set for the matching Carter carburetor, so it can cover a full teardown and reassembly. It carries a limited five-year warranty from Omix-Ada.

Key features

  • Includes all parts necessary for a carburetor rebuild
  • Carter one-barrel carburetor application
  • 134 F-head engine application
  • Carries a limited five-year warranty

Carter carburetor service

Carter one-barrel carburetors are simple in layout, but the choke, idle circuit and float system each need separate attention during a rebuild. Hard starting, rich running and fouled plugs often trace back to one of these areas. Working through them in order makes the job easier to check.

Start by inspecting the choke plate and its linkage, since a binding choke can keep the engine running rich. Check that the float seats cleanly and that the idle mixture screw is not worn. Use fresh gaskets, clean every passage, and keep the parts sorted so the reassembly matches the original order.

  • Confirm the choke plate opens and closes freely
  • Replace the fuel inlet filter if it is clogged
  • Set idle speed after the carburetor is back on the engine

Specifications

Brand Omix-Ada
Part number 17705.06
UPC 804314153434
Product type Carburetor repair kit
Carburetor design Carter, one barrel
Engine 134 F-head
Contents All parts necessary for a carburetor rebuild
Warranty Limited five-year warranty

Vehicle fitment

It fits these Jeep and Willys models:

  • 1953-1958 Jeep Willys 1-Ton, Base, CJ-3, CJ-5, CJ-6, DJ-3, Sedan Delivery, Truck and Utility Wagon
  • 1959-1960 and 1966-1971 Jeep CJ3, CJ5 and CJ6
  • 1959-1960 and 1965-1971 Jeep DJ3 and DJ5, 1966-1968 DJ6, 1961-1967 Dispatcher
  • 1966-1967 Commando, 1966-1971 Jeepster and 1962 Tornado
  • 1957-1971 F4, FC150, FC170 and FC170HD trucks, plus 1963-1967 Gladiator
  • 1963-1971 J-100, 1965-1971 J-2500, 1968-1970 J-2600 through J-3800 and 1971 J-4800
  • 1961-1962 Utility, 1966-1967 Universal and 1963-1967 and 1971 Wagoneer (SJ)

The list ends in 1971, so CJ-7 and Wrangler models are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.

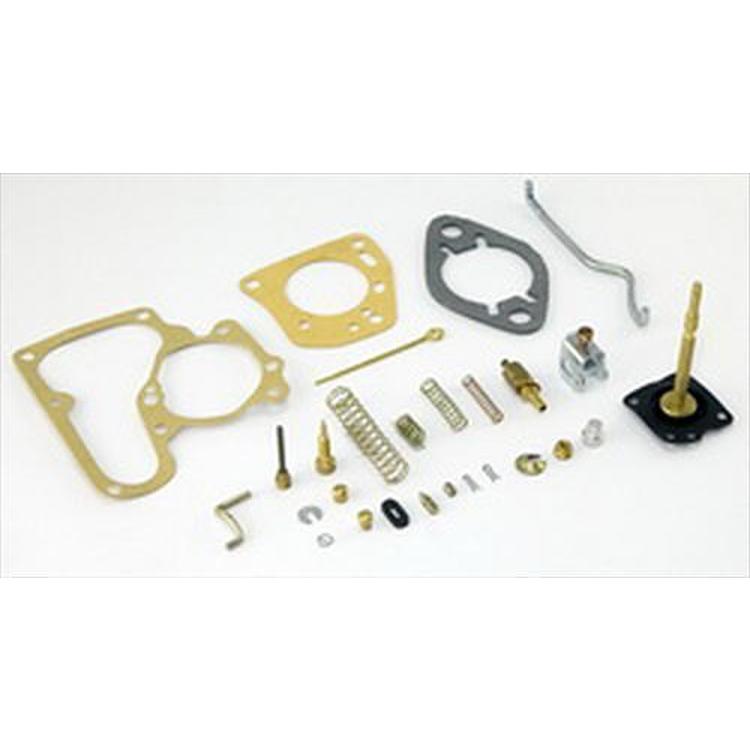

What’s included

Check the gaskets, jets and springs against your carburetor before starting the work.

SKU: OAI17705.06 Category:

Specification

Shipping weight 1.00 lbs
Package dimensions 12.00 × 9.00 × 2.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ31959–1960, 1966Base
Jeep CJ51959–1960, 1966–1971Base
Jeep CJ61959–1960, 1966–1971Base
Jeep Commando1966–1967Base
Jeep Dispatcher1961–1967Base
Jeep DJ31959–1960Base
Jeep DJ51965–1971Base
Jeep DJ61966–1968Base
Jeep F41957–1958Base
Jeep FC1501958–1966Base
Jeep FC1701963–1966Base
Jeep FC170HD1963–1966Base
Jeep Gladiator1963–1967Base
Jeep J-1001963–1971Base
Jeep J-25001965–1971Base
Jeep J-26001968–1970Base
Jeep J-27001968–1970Base
Jeep J-28001968Base
Jeep J-35001968–1970Base
Jeep J-36001968–1970Base
Jeep J-37001968–1970Base
Jeep J-38001968–1970Base
Jeep J-48001971Base
Jeep Jeepster1966–1971Base, Commando
Jeep Tornado1962Base
Jeep Universal1966–1967Base
Jeep Utility1961–1962Base
Jeep Wagoneer (SJ)1963–1967, 1971Base
Jeep Willys 1-Ton1953–1955All
Jeep Willys Base1956–1958All
Jeep Willys CJ-31953–1958All
Jeep Willys CJ-51955–1958All
Jeep Willys CJ-61956–1958All
Jeep Willys DJ-31956–1958All
Jeep Willys Sedan Delivery1953–1955All
Jeep Willys Truck1953–1954All
Jeep Willys Utility Wagon1955All

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does kit 17705.06 include everything needed for a carburetor rebuild?

Yes, it is sold as a complete rebuild set for Carter one-barrel carburetors on 134 F-head engines. Lay the parts out against your carburetor before starting so you know what is in the box.

Which Jeep models from the 1950s and 1960s does this kit fit?

It fits Willys models from 1953 to 1958, plus CJ3, CJ5 and CJ6 from 1959 to 1960 and 1966 to 1971. It also covers DJ, FC and F4 trucks, Gladiator, J-100 through J-4800 series, Jeepster and Wagoneer SJ models. CJ-7 and Wrangler models are not included.

Is the 17705.06 kit the same as 17705.02?

No. Omix-Ada lists 17705.02 for Solex one-barrel carburetors, while 17705.06 is for Carter one-barrel carburetors. Both use 134 F-head engines, but they have separate part numbers and fitment lists.

Should the choke be checked during a rebuild?

Yes. Check that the choke plate opens and closes freely and that the linkage is not binding. A sticking choke can cause hard starting, rich running and fouled plugs, so inspect it before reassembly.
