Overview

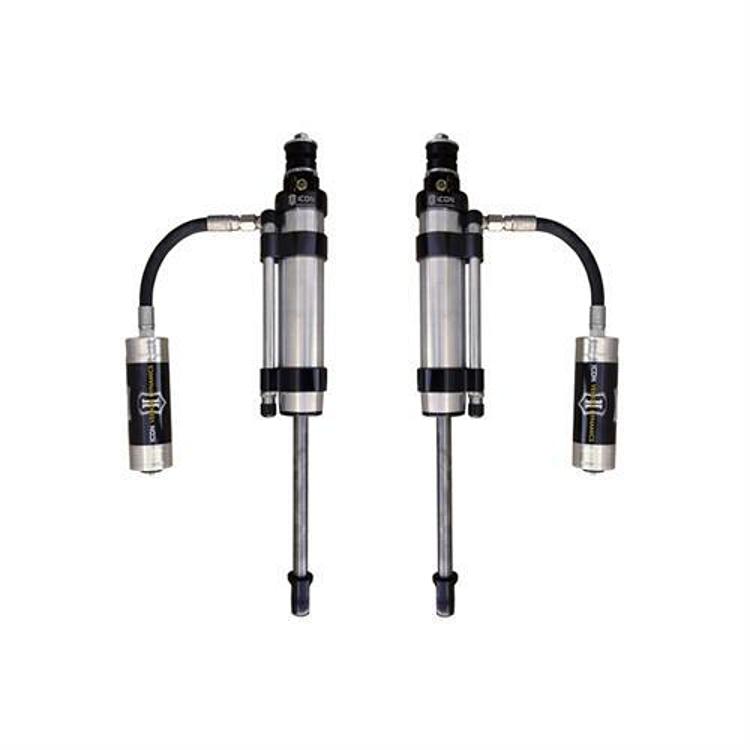

The ICON OMEGA Series Bypass rear remote reservoir shock is a rear shock for 2005 to 2017 Toyota Tacoma trucks, for use with 0 to 1.5 in of lift. ICON configures the OMEGA Series in length for each application, and the bypass valve lets owners adjust the ride to their liking. The shocks come as a pair.
The OMEGA Series is built for strong off-road performance and a smooth street ride. All ICON shocks are 100% rebuildable and 100% revalveable, so they can be serviced and retuned after installation. The internal Bump Zone is formed by a 6061 billet aluminum manifold a few inches below the top cap, and it adds damping force to help prevent harsh bottom outs.
Key features
- Remote reservoir design, which ICON says improves heat dissipation
- Bypass Valve with 28 settings of compression and rebound adjustment, with no tools required
- Internal Bump Zone that increases damping force
- 7/8 in induction hardened, chrome plated shock shaft
- CNC machined components in 6061 aircraft grade aluminum
- 100% rebuildable and 100% revalveable
- Premium grade 5WT shock oil
Using a bypass valve
A bypass valve lets you change how firmly the shock resists compression and rebound without taking it apart. Start from a middle setting, change one direction at a time, and test the feel on a route you know. Note the setting you choose so you can return to it after changes to tires or load.
Shocks that can be rebuilt and revalved are usually serviced at intervals based on use. Look for oil on the body, a clunking sound, or a ride that bottoms out or feels floaty. Pay attention to the reservoir hose and mount, since a worn hose can rub and fail.
- Record valve settings before changing them
- Inspect the shaft for pitting and seal wear
- Keep the reservoir away from heat and debris
Specifications
| Brand | Icon Suspension |
|---|---|
| Series | ICON OMEGA Series Bypass Rear Remote Reservoir |
| Position | Rear |
| Lift range | 0 to 1.5 in |
| Quantity | Pair |
| Shaft | 7/8 in diameter, induction hardened, chrome plated |
| Material | 6061 aircraft grade aluminum |
| Shock oil | Premium grade 5WT |
| Adjustment | 28 settings, compression and rebound (Bypass Valve) |
| Construction | CNC machined components |
| Rebuildable | 100% |
| Revalveable | 100% |
| UPC | 70000750493 |
Vehicle fitment
These shocks fit 2005 to 2017 Toyota Tacoma trucks with 0 to 1.5 in of lift. Other Toyota models are outside this fit.
Tacoma models outside the 2005 to 2017 range and other Toyota trucks are not covered here. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Choose the shock configuration that matches your lift within the 0 to 1.5 in range, since ICON configures each shock for its application in length. The reservoir is remote, so allow room to mount it away from the shock body. Use the bypass valve to set compression and rebound with no tools required. Keep hands clear of the suspension while removing the old shock, since the springs carry load.
What’s included
The shocks come as a pair. Check the package contents for mounting hardware, reservoir hoses and brackets before installing.
