Mishimoto Powerstroke Aluminum Radiator – MMRAD-F2D-95

Mishimoto

$524.63In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 1:50 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Full aluminum two-row radiator for the 7.3L Powerstroke, part number MMRAD-F2D-95
  • Brazed aluminum core, 2.28 inch thick

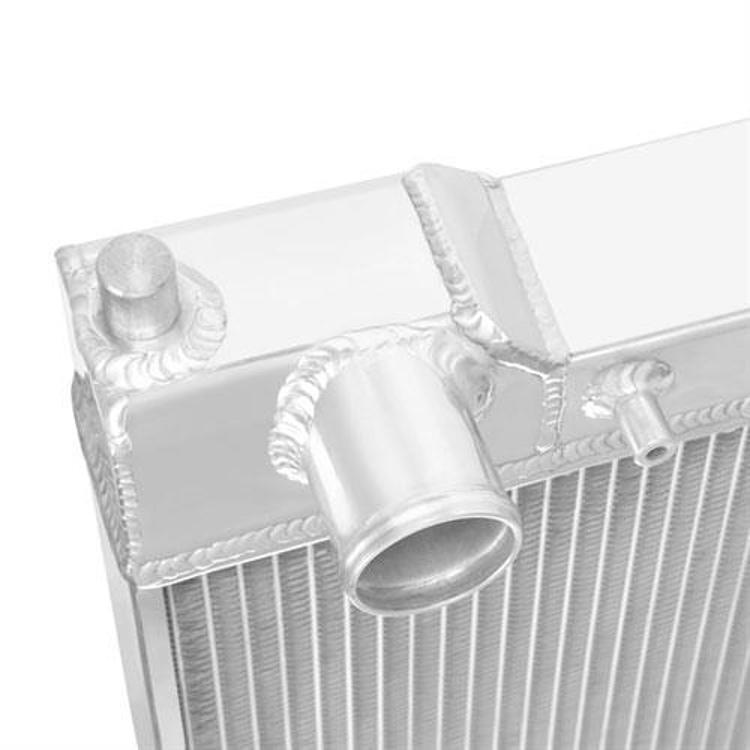

  • TIG-welded end tanks
  • Includes magnetic drain plug and Mishimoto lifetime warranty

Description

Overview

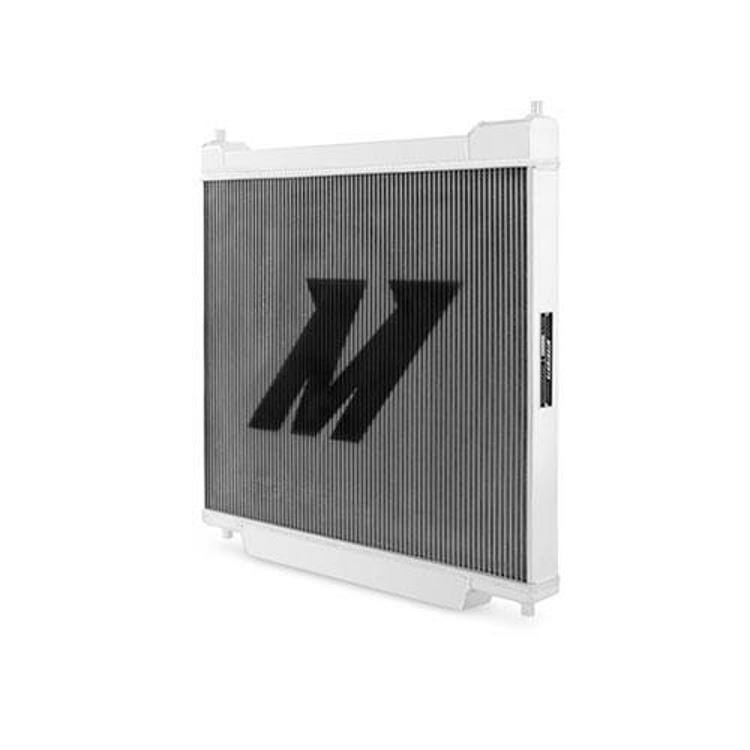

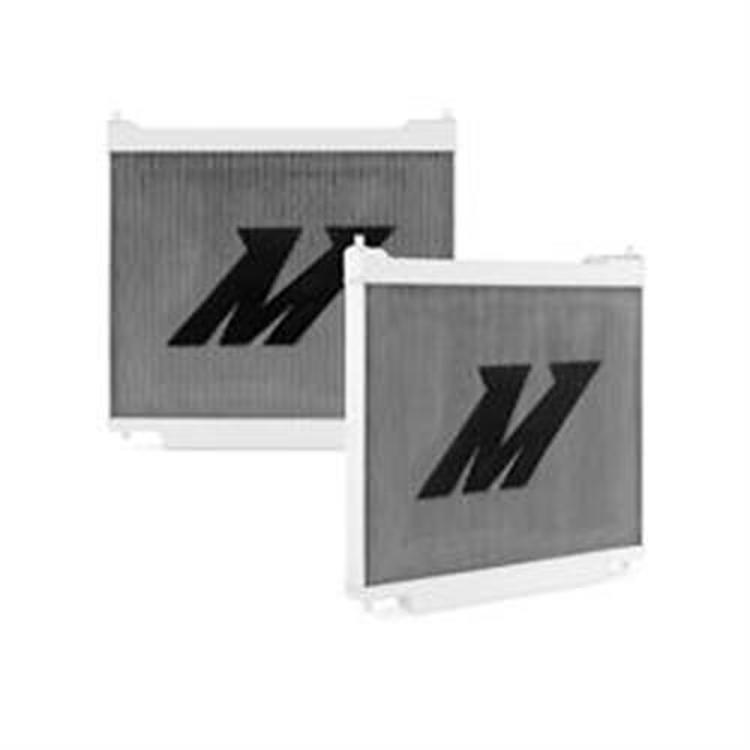

The Mishimoto MMRAD-F2D-95 is a full aluminum replacement radiator for the 7.3L Powerstroke engine, for 1995 to 1997 Ford trucks with that engine. It has a two-row, brazed aluminum core with TIG-welded end tanks and suits work trucks, mud trucks and modified pull trucks.

It is built for factory fitment and bolts to the stock fan shroud. It includes a magnetic drain plug and comes with a lifetime warranty from Mishimoto.

It is a cooling upgrade for the 7.3 Powerstroke, matched to the engine’s cooling needs under heavy use.

Key features

  • Full aluminum construction
  • Brazed two-row aluminum core, 2.28 inch thick
  • TIG-welded end tanks
  • Bolts to the stock fan shroud
  • Includes a magnetic drain plug
  • Mishimoto lifetime warranty

Cooling for heavy-duty work

A radiator on a diesel pickup works hard under towing and low-speed loads, when airflow over the core is limited and the fan carries much of the cooling. An aluminum core handles heat transfer well, and a two-row design adds surface area. Keeping the core free of bugs, mud and debris helps it reach its rated cooling capacity.

Before swapping the radiator, check the shroud, the upper and lower hose necks and the fan clutch condition. Old hoses that are soft or cracked are easiest to replace while the radiator is out, so plan on new ones. Look at the coolant for oil or rust, which can point to other cooling problems that a new radiator will not fix.

  • Clean the core with low-pressure water from the back side
  • Inspect the fan clutch and shroud mounting tabs
  • Replace hoses that feel soft or swollen
  • Refill and bleed the system after installation

Specifications

Brand Mishimoto
Part number MMRAD-F2D-95
UPC 748666005037
Engine 7.3L Powerstroke
Application years 1995–1997 Ford
Construction Full aluminum
Core Brazed aluminum, two rows, 2.28 inch thick
End tanks TIG-welded
Number of cores Two
Type Replacement, Direct Fit
Included Magnetic drain plug
Warranty Lifetime warranty

Vehicle fitment

It is for the 1995 to 1997 Ford 7.3L Powerstroke.

Confirm fit for your truck’s year, model, cab style and trim before ordering, and compare the mounting and fan shroud before fitting.

Installation notes

The radiator bolts directly to the stock fan shroud, so the shroud is the first mounting point to check. Let the engine cool completely before opening the cooling system.

What’s included

The package includes a magnetic drain plug. Check hoses, coolant and fan parts against your installation before starting.

SKU: M/AMMRAD-F2D-95 Category:

Specification

Shipping weight 40.00 lbs
Package dimensions 37.00 × 33.00 × 7.00 in
brands

Questions & Answers

Which vehicles fit the Mishimoto MMRAD-F2D-95 radiator?

It is for the 1995 to 1997 Ford 7.3L Powerstroke. Confirm your truck's year, model and trim before ordering, and compare its engine with that application.

How thick is the radiator core?

The brazed aluminum core is 2.28 inches thick and has two rows. The radiator uses two cores, and the end tanks are TIG-welded for a sealed joint.

Is a drain plug included with this radiator?

Yes. A magnetic drain plug is included with the radiator. The lifetime warranty applies, so keep your purchase record for coverage questions.

Will the radiator bolt to my stock fan shroud?

It is designed to bolt right up to the stock fan shroud and is built for factory fitment. Check the fan shroud on your truck before fitting to confirm the mounting points match.

How often should the radiator be checked on a work truck?

Check the coolant level and the core for debris before heavy use and at each oil change. Look for leaks at the hose ends and the drain plug. A quick check helps catch overheating before it causes engine damage.

How do I keep the drain plug from leaking?

Install the magnetic drain plug with a clean seal and tighten it by hand until snug. Check it after the first refill, since a loose plug can seep coolant. Magnetic plugs also collect metal debris that could otherwise circulate.
