Overview

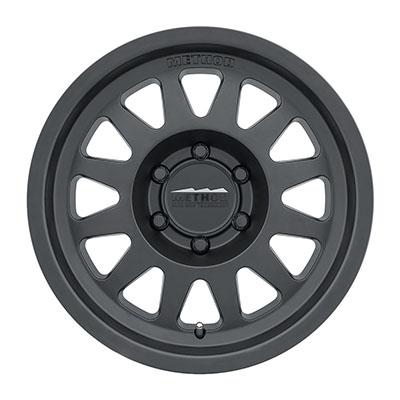

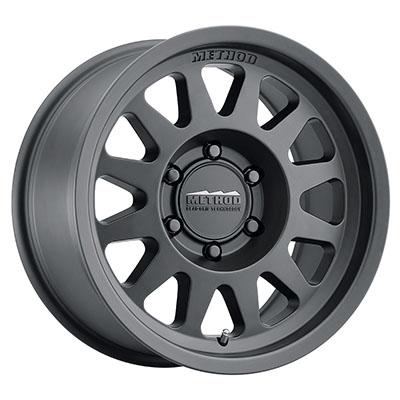

The Method Race Wheels 704 Trail Series 17×8.5 wheel in Matte Black, part number MRWMR70478516500, is a 17-inch aluminum wheel, 8.5 inches wide, with a 6 on 135 bolt pattern. It belongs to Method’s MR704 Bead Grip series, which is aimed at off-road trail and racing use.
Method Race Wheels was set up to serve the off-road racing community. Each 704 was engineered for its intended use and tested with Finite Element Analysis and many field trials. The design goals are less weight and more strength. The offset of 0 and backspacing of 4.75 set how the wheel sits against the hub, so compare those with your vehicle as well.
Key features

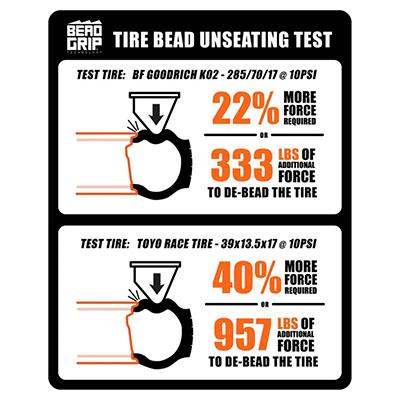

- Patent pending Bead Grip technology that engages the tire bead seat for more grip at lower air pressures
- One-piece cast 356 aluminum body with T6 heat treatment
- Reinforced inner lip based on race wheel design

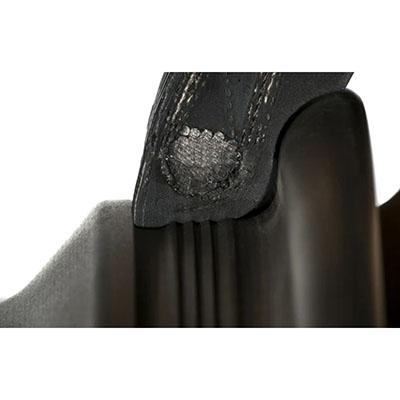

- Safety hump on the inner and outer bead seat that helps stabilize the tire and resist de-beading
- Windowed style with a Matte Black finish
- Developed through Finite Element Analysis and field testing
Wear and rock-crawl care
Wheels used on rocky trails take impacts on the outer barrel and bead area. Check the finish, lip and bead seats after each trip where contact occurred. Scrapes in the matte finish are mostly cosmetic, but a dent or crack near a bead seat affects how the tire seats and holds air.
Lug nuts should be re-torqued after the first few drives on a new wheel, and again after any tire service. Keep the hub face clean and free of rust, since buildup can change how the wheel seats. A wheel that wobbles, pulses or loses air slowly should come off the vehicle for inspection.
- Inspect bead seats after rock strikes
- Clean the hub face during tire service
- Re-check lug torque after the first few drives
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70478516500 |
| Series | MR704 Bead Grip (704 Trail Series) |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 6 on 135 |
| Center bore | 87 |
| Offset | 0 |
| Backspacing | 4.75 |
| Construction | One-piece cast 356 aluminum, T6 heat treatment |
| Finish | Matte Black |
| Style | Windowed |
Vehicle fitment
This wheel is universal fit and is not built for a particular vehicle. Check the 6 on 135 bolt pattern, 87 center bore and 17×8.5 size against your vehicle before buying. Measuring your hub bore and bolt circle before ordering is the simplest way to confirm the fit.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Bead Grip is meant for lower running pressures, so keep pressures within the range the tire is rated for before reducing them. Make sure the 6 on 135 pattern and 87 center bore match your hub before mounting. Have a tire shop experienced with wheels mount and balance the tire if you are unsure.
What’s included
Check the package contents against your installation before starting.
