Overview

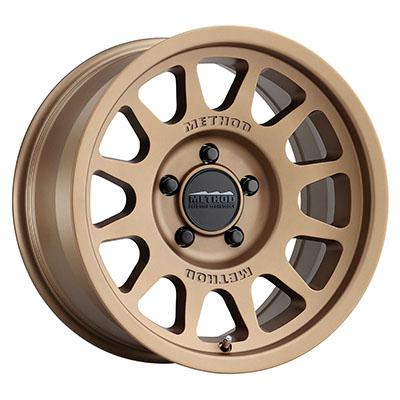

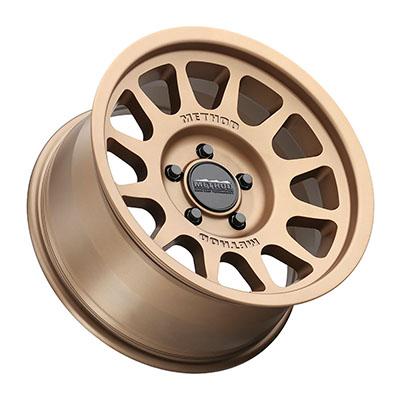

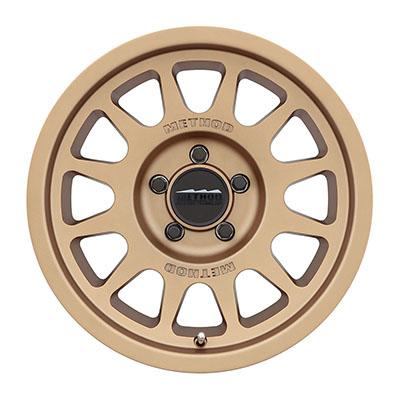

The Method Race Wheels MR703 17×8.5 in Bronze, part number MRWMR70378558900, is a 17-inch aluminum off-road wheel, 8.5 inches wide, with a 5 on 150 bolt pattern. It is offered as universal fit, so no specific model or year is confirmed.
This bronze windowed wheel belongs to the MR703 Bead Grip series and was built for off-road racing, with designs checked through finite element analysis and field testing. Its zero offset, 111 center bore and 4.75 backspacing decide how the wheel sits on a hub, so compare those figures first.
Key features
- 17-inch by 8.5-inch aluminum wheel
- Bronze finish with a windowed style
- 5 on 150 bolt pattern
- 111 center bore
- Zero offset and 4.75 backspacing as given
- MR703 Bead Grip series
Hub-centric fit and wheel bore
A wheel’s center bore needs to match the hub’s centering so the load sits on the hub rather than the lug studs. Where the bore is larger than the hub, hub-centric rings can close the gap. Confirm the bore against your hub before mounting, since lug studs are not designed to carry the full weight alone.
Zero offset places the mounting face at the wheel’s center line, which changes how the wheel sits in the wheel well. Backspacing is the other half of the picture, showing room behind the face for the caliper. Check both when choosing a flush or deeper setup for off-road use.
- Check the bore against the hub
- Dry-fit before final torque
- Re-check lug torque after first trail runs
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70378558900 |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Offset | 0 |
| Center bore | 111 |
| Backspacing | 4.75 |
| Bolt pattern | 5 on 150 |
| Finish | Bronze |
| Style | Windowed |
| Series | MR703 Bead Grip |
| Construction | Aluminum |
Vehicle fitment
No vehicle is named. Universal fit means your hub’s bolt pattern and center bore must match the 5 on 150 and 111 specifications for this wheel to suit it, and the 4.75 backspacing must clear your brake caliper.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the 111 center bore against your hub’s centering, then dry-fit to confirm the 4.75 backspacing clears the brake caliper. Confirm load rating, lug seat type and hardware before installation.
What’s included
This product covers the wheel itself. Compare the package contents with your installation plan before starting.
Not included: Tires and lug nuts are not part of this wheel.
