Method Race Wheels 301 The Standard, 20x9 with 5 on 150 Bolt Pattern – Matte Black – MR30129058518

Method Race Wheels

Shop Method Race Wheels 20x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 301 The Standard 20×9 beadlock-style wheel in matte black
  • Part number MRWMR30129058518 with a 5 on 150 bolt pattern
  • Offset 18, backspacing 5.75, center bore 116
  • Aluminum construction
  • Universal fit, not tied to a specific vehicle

Description

Overview

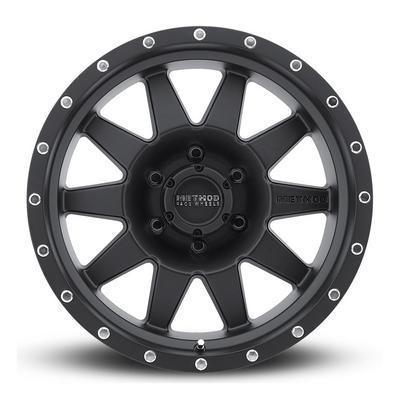

The Method Race Wheels 301 The Standard 20×9 beadlock-style wheel, part number MRWMR30129058518, is a 20-inch aluminum wheel 9 inches wide with a 5 on 150 bolt pattern. It is listed in Method’s MR301 The Standard series in a matte black finish.

A beadlock is a wheel design that clamps the tire bead to the rim. This wheel uses the beadlock style. It is built for off-road racing use, with its design developed through finite element analysis and field testing, and it aims for lower weight with higher strength.

Offset is 18, backspacing is 5.75 and the center bore is 116, so measure your hub before choosing this wheel.

Key features

  • Beadlock style from the MR301 The Standard series
  • Matte black finish
  • Aluminum construction
  • 20-inch diameter and 9-inch width
  • 5 on 150 bolt pattern
  • Offset 18, backspacing 5.75, center bore 116

Beadlock mounting basics

A beadlock clamps the tire bead to the rim with a ring and bolts, so the tire stays seated at low pressure. That is why beadlocks are common on off-road builds where low pressure gives grip over rocks and sand. Because the bead is mechanically held, the tire and rim must be chosen as a matched set, and the mounting method should be confirmed before any tire is fitted.

Care matters on these wheels. Clean the bead area and ring seating surfaces before each mount, and inspect the ring bolts after trail runs for looseness. A bent ring or damaged bead seat can let air leak, so check the seating surfaces for nicks. A matte black face scratches more visibly than a painted one, so use a soft pad when handling.

  • Clean bead seats before each mount
  • Re-torque ring bolts after trail use
  • Inspect the bead seat for nicks or bends

Specifications

Brand Method Race Wheels
Part number MRWMR30129058518
Series MR301 The Standard
Style Beadlock
Diameter 20 inches
Width 9 inches
Offset 18
Backspacing 5.75
Center bore 116
Bolt pattern 5 on 150
Finish Matte Black
Construction Aluminum

Vehicle fitment

This beadlock-style wheel is sold as a universal fit and is not tied to a particular vehicle. Its 5 on 150 bolt pattern and 116 center bore must match the hub of any vehicle you consider.

Confirm fit for your vehicle’s year, model and trim before buying. Measure the hub and check the 5 on 150 pattern and 116 center bore before ordering.

Installation notes

Because this is a beadlock-style wheel, confirm that the tire and mounting method you plan to use are compatible with it before mounting. Check the 5 on 150 pattern and 116 center bore against your hub at the same time.

What’s included

This entry covers one wheel. Lug nuts, a center cap, beadlock rings and tires are not included.

SKU: MRWMR30129058518 Categories: ,

Questions & Answers

What is the Method Race Wheels MRWMR30129058518?

It is a Method Race Wheels 301 The Standard 20x9 wheel in the beadlock style, with a 5 on 150 bolt pattern, offset 18, backspacing 5.75, center bore 116 and a matte black finish. It is built from aluminum.

Is this wheel designed for a specific vehicle?

No. It is a universal fit wheel, so no vehicle is tied to it. Check the 5 on 150 bolt pattern and 116 center bore against your hub, and confirm the beadlock mounting method suits your tires before choosing it.

Does the beadlock style need extra parts?

Beadlock setups usually require beadlock rings and matching hardware. Confirm the mounting parts and tire compatibility before mounting, and plan to source any missing items separately.

Do beadlock wheels need special tires?

Usually they need tires designed for beadlock use, or tires whose bead design is compatible with the ring. Confirm the tire type and mounting method before buying, since a standard bead may not hold correctly on a beadlock rim.
