Method Race Wheels 704 Trail Series, 17x8.5 with 6 on 5.5 Bolt Pattern – Matte Titanium – MR70478560800

Method Race Wheels

$363.00In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 11:30 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 704 Trail Series wheel, 17 Inches diameter by 8.5 Inches width, part number MRWMR70478560800.
  • Bolt pattern 6 on 5.5, offset 0, center bore 106, backspacing 4.75.
  • One-piece cast 356 aluminum construction with T6 heat treatment and a matte titanium finish.
  • Bead Grip design with a reinforced inner lip and safety humps on the bead seats.
  • No vehicle fitment is listed; check the wheel specifications against your vehicle.

Description

Overview

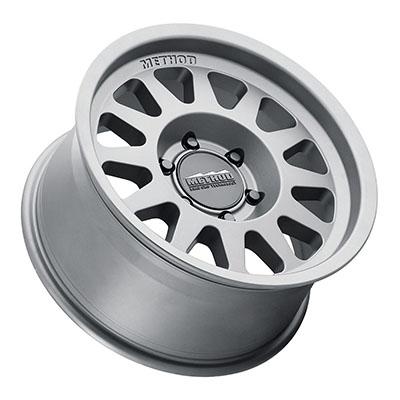

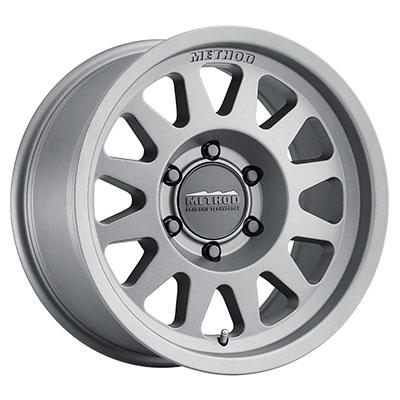

The Method Race Wheels 704 Trail Series is a 17×8.5 aluminum wheel with a 6 on 5.5 bolt pattern and a matte titanium finish, part number MRWMR70478560800. It is designed for off-road use and uses Method’s Bead Grip design, which is meant to hold the tire bead more firmly when running lower air pressures.

The 704 is a one-piece cast wheel made from 356 aluminum with T6 heat treatment. Method Race Wheels positions the brand around the off-road racing community and says each wheel was engineered with Finite Element Analysis and field testing. The stated goal of the design is to minimize weight while increasing strength. Because a wheel is sized by its diameter, width, offset, center bore and bolt pattern rather than by a vehicle model alone, check those dimensions against your vehicle before fitting it.

Key features

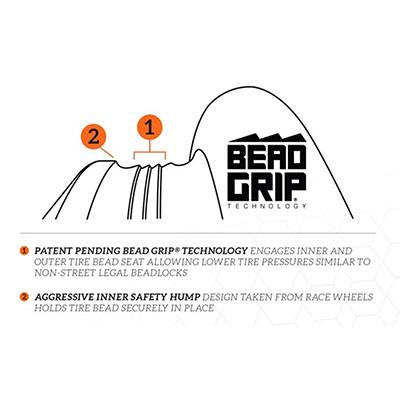

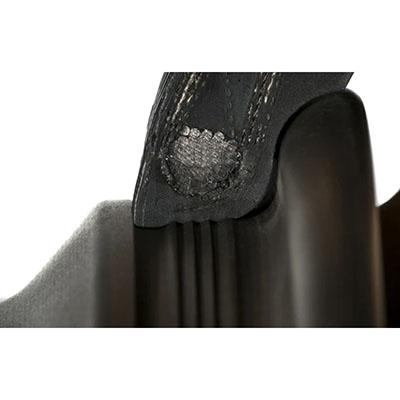

  • Bead Grip design, which Method describes as a patent pending technology that engages the tire bead seat for added grip at lower air pressures.
  • Reinforced inner lip taken from race wheel design.
  • Aggressive safety hump on the inner and outer bead seat, which the company says stabilizes the tire and helps prevent de-beading.
  • One-piece cast 356 aluminum construction with T6 heat treatment.
  • Windowed style with a matte titanium finish.
  • Engineered and tested with Finite Element Analysis and field tests.

Hub-centric rings and clearance

Hub-centric rings bridge the gap between a wheel’s center bore and a larger hub. They are usually sized to the hub and must seat flush against the wheel before the lug nuts go on. Rings sized wrong can cause vibration that looks like a balance problem, so confirm the fit before a trail trip.

Offset and backspacing decide how far the wheel sits in the fender and how close it comes to brake calipers and suspension links. A small change in offset can shift stance and clearance more than many buyers expect. Checking clearance at full steering lock and under suspension compression helps catch rubbing before it wears a tire.

  • Seat hub-centric rings flush before torquing
  • Check clearance at full steering lock
  • Recheck clearance after changing tire size

Specifications

Brand Method Race Wheels
Part number MRWMR70478560800
Series MR704 Bead Grip (704 Trail Series)
Wheel diameter 17 Inches
Wheel width 8.5 Inches
Bolt pattern 6 on 5.5
Offset 0
Backspacing 4.75
Center bore 106
Style Windowed
Finish Matte Titanium
Construction One-piece cast 356 aluminum with T6 heat treatment

Vehicle fitment

This wheel is universal fit and is not built for a particular vehicle. A 6 on 5.5 pattern with 0 offset and a 106 center bore only suits hubs that match those dimensions, so compare them with your vehicle before choosing this wheel.

Wheels in a different diameter, width, offset, center bore or bolt pattern are separate parts and will not match these specifications. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Match the 106 center bore to your hub. If your hub is a different size, hub-centric rings are the usual accessory for fitting a wheel that does not center on the hub. Check clearance to suspension and brake components using the offset and backspacing, since both change where the wheel sits. Because this wheel is built for lower air pressures, confirm the tire seats fully and holds pressure before running it off-road.

What’s included

Check the package contents against your installation before starting.

Not included: Confirm whether tires, lug hardware, center caps and valve stems are needed before installing.

SKU: MRWMR70478560800 Categories: ,

Questions & Answers

What wheel is part number MRWMR70478560800?

It is the Method Race Wheels 704 Trail Series wheel in 17x8.5 inches with a 6 on 5.5 bolt pattern, a matte titanium finish and a Bead Grip design. It is a windowed, one-piece cast aluminum wheel.

Does this Method 704 wheel fit my vehicle?

Fitment is not confirmed for a specific vehicle. The wheel is universal fit, so the 6 on 5.5 bolt pattern, 0 offset and 106 center bore must match your vehicle's hub before you buy it.

What are the offset and backspacing of this wheel?

The offset is 0 and the backspacing is 4.75. Offset sets where the mounting face sits relative to the wheel centerline, and backspacing measures from the mounting face to the inner lip, so both affect clearance to suspension and brakes.

What does the Bead Grip design do?

Bead Grip is a patent-pending feature that engages the tire bead seat for more grip when running lower air pressures. Mount the tire with standard bead-seating procedures.

Can I change tire size on this wheel?

Yes, within the range the wheel and tire are rated for. A taller or wider tire changes clearance and load, so check brake and suspension clearance after any change. Ask a tire shop to confirm the bead seat fits the new size.
