Method Race Wheels 502 Rally, 17x8 with 5 on 108 Bolt Pattern – Matte Black – MR50278049538

Method Race Wheels

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels MR502 Rally 17×8 aluminum spoke wheel, part number MRWMR50278049538
  • 5 on 108 bolt pattern, 8-inch width, 63 center bore
  • Matte black finish; offset 38, backspacing 6.1
  • Fit depends on vehicle; match bolt pattern and offset to the hub before ordering

Description

Overview

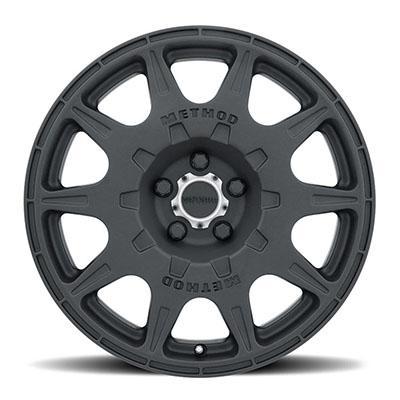

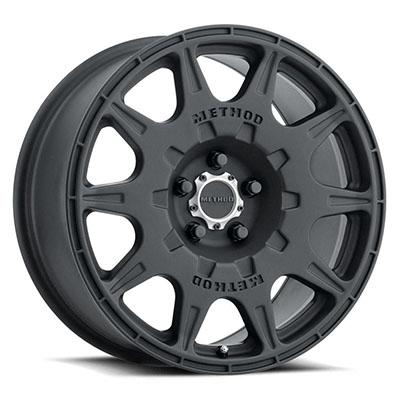

The Method Race Wheels MR502 Rally 17×8 is a matte black aluminum spoke wheel, part number MRWMR50278049538. It has a 5 on 108 bolt pattern and an 8-inch width, sits in Method’s MR502 Rally series, and is 17 inches in diameter with a 38 offset.

The MR502 Rally was developed with Subaru Rally Team USA for its brand new 2014 Rally America Open Class cars. The preliminary 15-inch low-offset design was scaled up to 17-inch and 18-inch diameters, and the series is also offered in 18×8 with a +38mm offset.

Key features

  • 17-inch by 8-inch spoke wheel with a 5 on 108 bolt pattern
  • Weight reduction pockets placed in low-stress areas to remove unneeded weight while keeping overall strength
  • I-beam inner-lip geometry, the same design found on the MR501 wheels, for further weight reduction
  • Matte black finish with a matte clear coat
  • Aluminum construction
  • Decorative center cap ring
  • Also offered in 18×8 with a +38mm offset

Center bore and hub fit

The center bore decides how the wheel centers on the hub. A bore larger than the hub leaves the wheel resting on the lug nuts, which can cause vibration. A hub-centric ring closes that gap so the load goes through the hub face.

Bolt pattern and bore are checked before anything else, then offset and backspacing are reviewed against the brakes and suspension. Wheel spacers and aftermarket hubs change these measurements, so recheck the fit after any change. Keep the mounting surfaces clean and free of rust before installing the wheel.

  • Clean the hub face before mounting
  • Check the bore against the hub diameter
  • Use a hub-centric ring if the hub is smaller
  • Recheck fit after any spacer or hub change

Specifications

Brand Method Race Wheels
Part number MRWMR50278049538
Series MR502 Rally
Style Spoke
Finish Matte Black
Construction Aluminum
Wheel diameter 17 Inches
Wheel width 8 Inches
Bolt pattern 5 on 108
Center bore 63
Offset 38 (+38mm)
Backspacing 6.1

Vehicle fitment

Fit depends on the vehicle. The 5 on 108 bolt pattern, 63 center bore, 38 offset and 6.1 backspacing must each match the hub and clearance of the vehicle you choose.

The Subaru connection points to the wheel’s rally development, not to a set of compatible vehicles. Confirm your vehicle’s year, model and trim before ordering.

What’s included

Tires, lug nuts and other hardware come separately.

Not included: tires and lug hardware, which need to be bought separately.

SKU: MRWMR50278049538 Categories: ,

Questions & Answers

What is the Method Race Wheels MR502 Rally 17x8 wheel?

It is a 17-inch by 8-inch aluminum spoke wheel in Method Race Wheels' MR502 Rally series, part number MRWMR50278049538. It has a 5 on 108 bolt pattern, a center bore of 63 and a matte black finish, with weight reduction pockets placed in low-stress areas.

Will this wheel fit my vehicle?

Fit depends on the vehicle. Match the 5 on 108 bolt pattern, center bore, offset and backspacing to your vehicle before ordering.

What offset and backspacing does this wheel have?

The offset is 38, also written as +38mm, and the backspacing is 6.1. Compare these with your vehicle's hub and suspension before fitting, since offset and backspacing decide how the wheel sits in the wheel well.

Is a tire included with this wheel?

No tire is included. Lug nuts and other hardware are also not included, so tires and hardware need to be bought separately.

What does a matte clear coat need for upkeep?

Wash with a mild, pH-neutral cleaner and avoid abrasive pads, which can leave shiny marks. Dry the wheel fully and skip waxes, since many change the matte look over time.

Do I need to rebalance tires after mounting?

Yes, balancing is normal after mounting tires on a new wheel. Ask the installer to balance the assembly, and recheck balance if vibration appears at speed.
