Overview

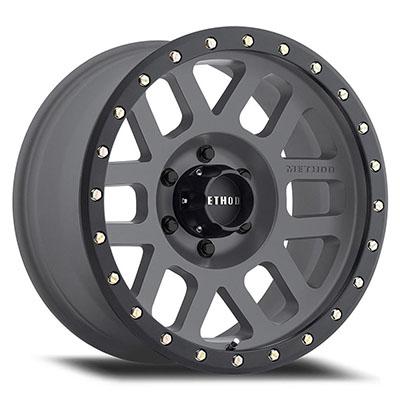

The Method Race Wheels 309 Grid 18×9 in titanium and black, part number MRWMR30989080818, is an aluminum mesh wheel for an 8 on 6.5 bolt pattern. It has a 131 center bore, an offset of 18 and backspacing of 5.75. The product name says titanium and black, while the spec sheet lists gray.
Engineered for the off-road racing community, the 309 Grid uses Finite Element Analysis and field testing in its design. The goal is a wheel that weighs less and is stronger.
Key features
- Aluminum construction with a grid-style mesh face
- 18 inch diameter and 9 inch width
- 8 on 6.5 bolt pattern with a 131 center bore
- Offset 18 and backspacing 5.75
- Part of the MR309 Grid series
Choosing a bolt pattern
The bolt pattern is the lug count plus the diameter of the circle the lugs sit on. A wheel must match that pattern exactly, because even a small mismatch leaves the wheel loose or forces the studs to bear the load alone.
Bolt-pattern adapters exist, but they add a machined piece between the wheel and hub and change offset in the process. When a wheel is chosen for a specific truck, it is usually simpler to order one that matches the hub outright.
Before buying, measure the hub’s bolt pattern, center bore and stud length, then compare those figures with the wheel. Note the seat style of the lug nuts, since conical and flat seats will not work together.
- Measure across the lugs to confirm the pattern
- Check stud length against wheel and hub thickness
- Confirm the seat style before buying lug nuts
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR30989080818 |
| Series | MR309 Grid |
| Construction | Aluminum |
| Style | Mesh |
| Finish | Gray (spec sheet); titanium / black (product name) |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 8 on 6.5 |
| Center bore | 131 |
| Offset | 18 |
| Backspacing | 5.75 |
Vehicle fitment
Universal Fit is the fitment category, so the wheel is not tied to one vehicle. Compare the bolt pattern, bore, offset and backspacing with your own vehicle before fitting.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
An offset of 18 with 5.75 backspacing changes wheel position relative to the fender and brakes, so check clearance during test fitting. Make sure the 131 center bore suits your hub.
What’s included
Check the package contents against your installation before starting, including lug hardware and center caps.
