Overview

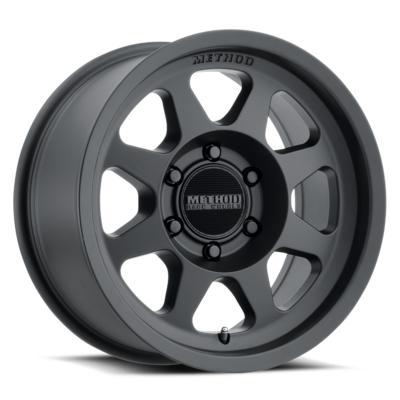

The Method Race Wheels 701 Trail Series 17×9 wheel in Matte Black, part number MRWMR70179050512N, is a one-piece cast aluminum off-road wheel with a 5 on 5 bolt pattern, a 72 center bore, an offset of -12 and a backspacing of 4.6. Method labels it universal fit, and with a 9-inch width and negative offset, hub and clearance checks matter more than any model name.
The 701 carries a patent pending Bead Grip design meant to keep tire beads engaged at lower air pressures. The build includes a reinforced inner lip taken from race wheel design and a safety hump on both bead seats. Finite element analysis and field trials were used to reduce weight while adding strength, and the wheel is made for off-road use.
Key features
- Matte Black finish with a windowed style.
- 17 Inches in diameter and 9 Inches wide.
- Negative offset of -12 with 4.6 backspacing.
- One-piece cast 356 aluminum, T6 heat treatment.
- Bead Grip design, patent pending.
- Reinforced inner lip and safety humps on the bead seats.
Negative offset and clearance
Offset sets how far the mounting face sits relative to the centerline of the wheel. A negative offset moves the wheel outward, which can change stance but reduces inner clearance and increases load on wheel bearings and studs. A wider wheel also changes how the tire sits against fenders and suspension parts.
Before settling on a wheel like this, check fender trimming, steering travel and brake caliper clearance with the tire you plan to run. Full lock and suspension compression are the moments when tires rub most often. Small changes in tire size can change the result, so recheck after any change.
- Check clearance at full steering lock
- Recheck after tire size changes
- Inspect the fender lip after rough trails
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70179050512N |
| Series | 701 Trail Series (MR701 Bead Grip) |
| Wheel diameter | 17 Inches |
| Wheel width | 9 Inches |
| Bolt pattern | 5 on 5 |
| Center bore | 72 |
| Offset | -12 |
| Backspacing | 4.6 |
| Construction | One-piece cast 356 aluminum, T6 heat treatment |
| Style | Windowed |
| Finish | Matte Black |
Vehicle fitment
No vehicle, year or chassis is named for this 17×9 wheel. Because the width is 9 Inches and the offset is negative, check hub and clearance on your vehicle before settling on this size.
Compare the 5 on 5 bolt pattern, 72 center bore and -12 offset with your hub specifications. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Verify the 5 on 5 bolt pattern and 72 center bore on the hub first. A -12 offset pushes the wheel outward, so confirm fender and suspension clearance before mounting.
What’s included
One Matte Black Method 701 Trail Series wheel, 17 by 9 inches.
Not included: The tire, lug nuts, valve stems and center caps must come from elsewhere.
