Overview

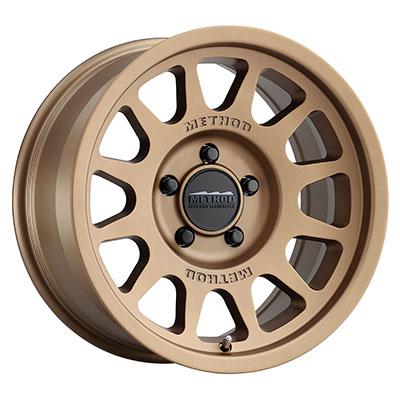

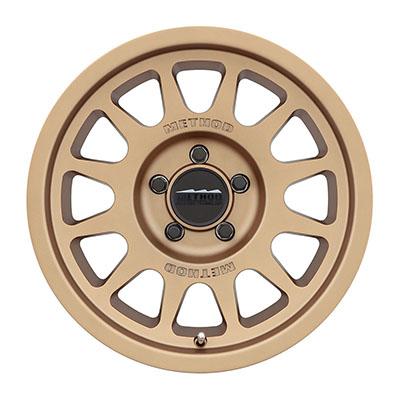

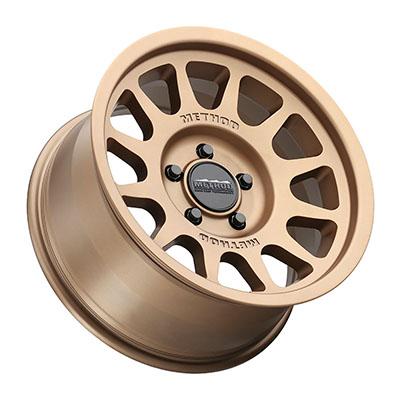

The Method Race Wheels MR703 17×8.5 in Bronze, part number MRWMR70378550900, is a 17-inch aluminum off-road wheel, 8.5 inches wide, with a bolt pattern given as 5 on 5. Method Race Wheels offers it as universal fit, and no year, make or model is named.
This bronze windowed wheel belongs to the MR703 Bead Grip series and was developed for off-road racing. Each design goes through finite element analysis and field testing. The 72 center bore, 0 offset and 4.75 backspacing are the measurements to match against your hub. A 5 on 5 pattern is uncommon, so verify the match with your hub before assuming it fits.
Key features
- 17-inch by 8.5-inch aluminum wheel
- Bronze finish with a windowed style
- 5 on 5 bolt pattern as given
- 72 center bore
- 0 offset and 4.75 backspacing
- MR703 Bead Grip series
Uncommon bolt patterns
Five-lug wheels are common, but a 5 on 5 pattern is less typical and needs careful matching. Bolt pattern is the count of studs and the diameter of the bolt circle they sit on. Both must match the hub exactly, or the wheel will not seat correctly and the studs can be overloaded.
Measuring is the surest way to confirm a match. Count the studs, measure from the center of one stud to the opposite stud, and compare that with the wheel’s bolt pattern. Check the center bore against the hub’s centering diameter, since a wrong bore can cause vibration even when studs line up.
- Count and measure the studs carefully
- Confirm the hub centering diameter
- Use hub-centric rings only if they fit the bore
- Do not force a wheel that does not seat
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70378550900 |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Offset | 0 |
| Center bore | 72 |
| Backspacing | 4.75 |
| Bolt pattern | 5 on 5 |
| Finish | Bronze |
| Style | Windowed |
| Series | MR703 Bead Grip |
| Construction | Aluminum |
Vehicle fitment
No vehicle is named. Because the bolt pattern is given as 5 on 5, verify it with Method Race Wheels and against your hub before buying, along with the 72 center bore.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Verify the 5 on 5 bolt pattern and 72 center bore against your hub before mounting. Confirm load rating, lug seat type and hardware before installation.
What’s included
The wheel is the only item named.
Not included: Tires and lug nuts are not part of this wheel package.
