Overview

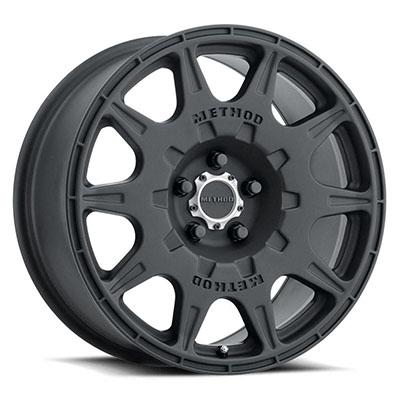

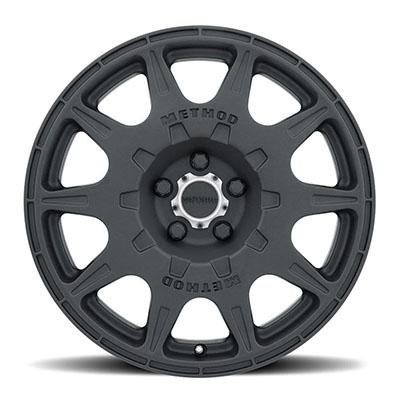

The Method Race Wheels 502 Rally is a 16-inch by 7-inch aluminum spoke wheel in matte black, part number MRWMR50267012515. It runs a 5 on 4.25 bolt pattern with a center bore of 67, an offset of 15 and a backspacing of 4.6, and it is part of the MR502 Rally series built for rally racing.
Method developed the MR502 with Subaru Rally Team USA for 2014 Rally America Open Class cars. The original concept was 15 inches with low offset, later scaled up to 17 and 18 inches. The 17 by 8 and 18 by 8 versions use a +38mm offset and titanium finish, so this 16-inch matte black wheel is a different size and offset from those.
Key features
- Weight reduction pockets placed in low-stress areas, per the brand
- I-beam inner-lip geometry shared with the MR501 wheels
- 16-inch by 7-inch matte black spoke design
- 5 on 4.25 bolt pattern with center bore 67
- Offset 15 and backspacing 4.6
Clearance with a smaller wheel
A 16-inch wheel with an offset of 15 sits further outward than a wheel with a higher offset, so fender clearance and steering clearance need checking. Lower offset can improve inner clearance behind the wheel, while the backspacing controls how far the inner lip sits from the mounting face.
Tire choice is set by the wheel diameter and width. A 16 by 7 wheel takes a different tire size than the larger versions in this series, so match the tire diameter, width and load rating to the wheel. Always confirm the final tire sits clear of the body and suspension at full lock and full compression.
- Check fender clearance at full lock
- Confirm inner clearance at full compression
- Match tire diameter and width to the wheel
- Recheck clearance after tire changes
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR50267012515 |
| Series | MR502 Rally |
| Diameter | 16 inches |
| Width | 7 inches |
| Bolt pattern | 5 on 4.25 |
| Center bore | 67 |
| Offset | 15 |
| Backspacing | 4.6 |
| Style | Spoke |
| Finish | Matte Black |
| Construction | Aluminum |
Vehicle fitment
Fit depends on the hub, not the rally heritage. The 5 on 4.25 pattern and offset of 15 have to be checked against the specific vehicle before buying.
Racing history does not confirm fit with any road or rally vehicle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the 5 on 4.25 pattern and 67 center bore against the hub before mounting. An offset of 15 differs from the +38mm offset of the larger versions, so confirm clearance for this size.
What’s included
This entry covers the wheel alone.
Not included: no tires, lug nuts or caps are part of this 16-inch wheel.
