Overview

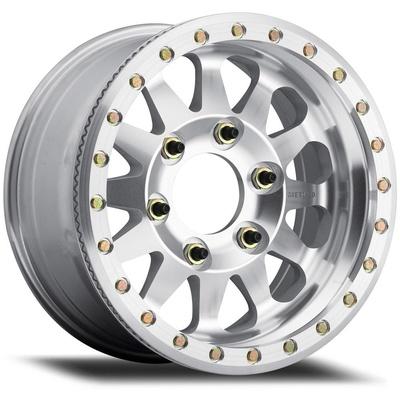

The Method Race Wheels 101 Beadlock, part number MRWMR10179080312B, is a 17×9 aluminum beadlock wheel with an 8 on 6.5 bolt pattern and a machined finish. It belongs to the MR101 Beadlock series.
Match the 8 on 6.5 pattern, 131 center bore, -12 offset and 4.5 backspacing to your own hub before buying.
Key features
- 17-inch diameter and 9-inch width in a beadlock style
- 8 on 6.5 bolt pattern with a 131 center bore
- Offset -12 and backspacing 4.5
- Machined finish on aluminum construction
- Part of the MR101 Beadlock series
Choosing wheel offset and backspacing
Offset and backspacing decide how far the wheel sits in or out from the hub, which affects clearance at the fender, brakes and suspension. Before buying a beadlock wheel, compare the wheel’s offset with the hub face and the wheel well space you have. Backspacing gives a related view of how much room is behind the mounting face, so both figures matter together.
Beadlock wheels are often chosen for off-road tire retention, but they also change how tires must be mounted. Plan for beadlock-rated tires, a bead-lock ring and the right bolts, and check that the tire will clear the suspension at full travel. Wheel bolts should be re-checked after the first few trail runs, since new wheels can settle.
- Compare offset with your hub face
- Check tire clearance at full suspension travel
- Plan for beadlock-rated tires
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR10179080312B |
| Series | MR101 Beadlock |
| Style | Beadlock |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Bolt pattern | 8 on 6.5 |
| Center bore | 131 |
| Offset | -12 |
| Backspacing | 4.5 |
| Finish | Machined |
| Construction | Aluminum |
| Fitment label | Universal Fit |
Vehicle fitment
No vehicle is named for this wheel. Method labels it Universal Fit, but a wheel only matches when its bolt pattern, center bore and offset suit a specific hub, so compare the figures above with your vehicle’s manufacturer specifications before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Only the wheel is described. Not included: Tires are needed to run this wheel and are not part of it. Lug nuts and other hardware are not part of it either, so confirm what your installation needs.
