Overview

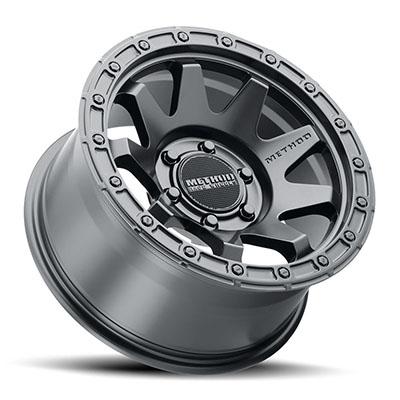

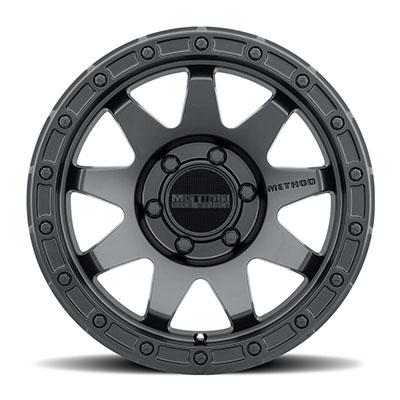

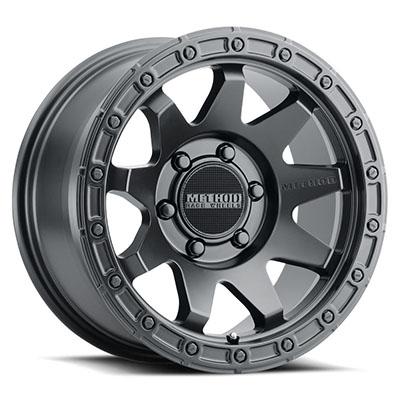

The Method Race Wheels 317 MR31778550500 is a 17×8.5 aluminum spoke wheel with a 5 on 5 bolt pattern in matte black. It is a universal-fit wheel, so fit depends on bolt pattern, center bore, offset and backspacing.
Method says its wheels are engineered for off-road racing and developed to minimize weight and increase strength, with numerous Finite Element Analysis and field tests. This MR317 spoke style wheel has an offset of 0, 4.75 backspacing and a center bore of 72.
Key features
- 17×8.5 aluminum wheel
- 5 on 5 bolt pattern
- Matte black finish
- Spoke style, MR317 series
- Offset 0, backspacing 4.75
- Center bore 72
Choosing offset and backspacing
Offset and backspacing decide where the wheel sits relative to the hub and fenders. A wheel with more positive offset sits further inward, while lower offset pushes it outward toward the fender and suspension. When choosing a wheel, compare these figures with the hub, brake caliper and suspension clearance on the vehicle, then check tire size, since a wider tire changes how the wheel clears the fender at full lock.
Spacers and wheel changes alter the same clearances, so re-check for rubbing after any change. A matte black spoke wheel shows scratches less than a polished finish, but grit and mud still need cleaning off the barrel to keep the finish protected.
- Compare hub bore with the center bore
- Test clearance at full steering lock
- Re-check lug torque after the first miles
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MR31778550500 (MRWMR31778550500) |
| Series | MR317 |
| Style | Spoke |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 5 on 5 |
| Offset | 0 |
| Backspacing | 4.75 |
| Center bore | 72 |
| Finish | Matte black |
| Construction | Aluminum |
| Fit type | Universal fit |
Vehicle fitment
The Method MR31778550500 is a universal-fit wheel, and no vehicles, years or models are named with it. Fit depends on the 5 on 5 bolt pattern, center bore, offset and backspacing. To confirm you have the same item, compare part number MR31778550500 (MRWMR31778550500) and the UPC, when one is printed on the box.
Universal fit does not guarantee clearance. Confirm the bolt pattern, center bore, offset, backspacing and tire size for your vehicle before ordering.
Installation notes
Check brake caliper, suspension and fender clearance before mounting tires. Use lug nuts with the correct seat and torque them to the value for your vehicle. Re-torque the lug nuts after the first miles of driving. Have wheels and tires mounted and balanced by a qualified shop. Check clearance at full steering lock and full suspension travel. After mounting, set tire pressure to the level recommended for the tire.
