Overview

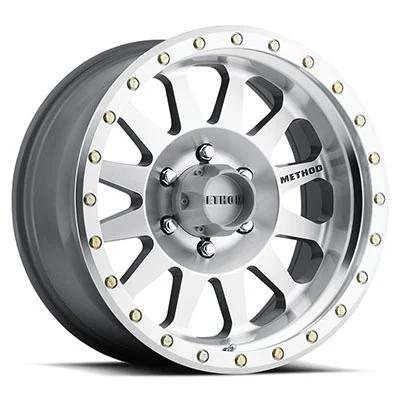

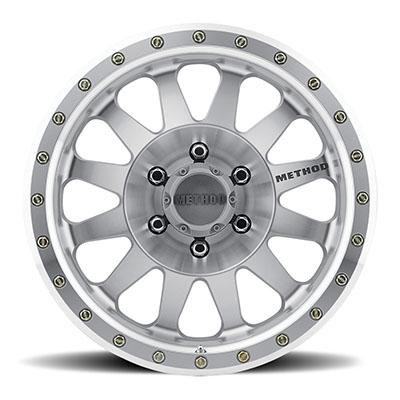

The Method Race Wheels 304 Double Standard 17×8.5 in a machined finish is a 17-inch aluminum spoke wheel with a 5 on 5 bolt pattern, part number MRWMR30478550300. It is part of Method’s MR304 Double Standard series.
Method designs its wheels for off-road racing, with each design engineered for its intended use and tested with finite element analysis and in the field. The aim is lighter weight and greater strength. A zero offset puts the mounting face at the centerline, and the 4.75 backspacing runs from that face to the inner lip.
The center bore is 94, which is the hub-fit figure to check against any vehicle hub before mounting.
Key features
- Spoke design from the MR304 Double Standard series
- Machined finish
- Aluminum construction
- 17-inch diameter and 8.5-inch width
- 5 on 5 bolt pattern
- Offset 0, backspacing 4.75, center bore 94
Hub-centric fit and hardware
A hub-centric fit means the wheel centers on the hub itself rather than on the lug studs. A machined spoke wheel with a 94 center bore relies on the hub’s pilot diameter to hold it true, so the bore should match the hub or be closed with a hub ring. The lug studs then carry the clamping load rather than the centering, which is why the two parts need to be matched carefully.
Lug nut seat style matters as much as bore size. Using the wrong seat can leave the wheel loose even with correct torque. Torque in a star pattern, check again after a short drive, and recheck after any tire service because the seat can settle.
- Confirm the bore matches the hub
- Match lug nut seat type to the wheel
- Torque in a star pattern and recheck after a short drive
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR30478550300 |
| Series | MR304 Double Standard |
| Style | Spoke |
| Diameter | 17 inches |
| Width | 8.5 inches |
| Offset | 0 |
| Backspacing | 4.75 |
| Center bore | 94 |
| Bolt pattern | 5 on 5 |
| Finish | Machined |
| Construction | Aluminum |
Vehicle fitment
Universal fit is the only fitment statement Method gives for this 17×8.5 wheel. No named make, model or year is attached to it.
This wheel has no named vehicle, so compare the five-on-five pattern with your hub using manufacturer data. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure your hub’s bolt pattern carefully, since this wheel lists 5 on 5, and compare the 94 center bore before mounting.
What’s included
This entry covers one wheel. Check the package contents against your installation before starting, including lug nuts, a center cap and a tire.
