Method Race Wheels 309 Grid, 18x9 with 5 on 150 Bolt Pattern – Titanium / Black – MR30989058818

Method Race Wheels

Shop Method Race Wheels 18x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 309 Grid, 18×9 aluminum off-road wheel, part number MRWMR30989058818
  • 5 on 150 bolt pattern with 116 center bore
  • Offset 18 and backspacing 5.75
  • Mesh style with a gray finish; Titanium / Black appears in the product name
  • No vehicle list is provided, so confirm bolt pattern and center bore against your hub

Description

Overview

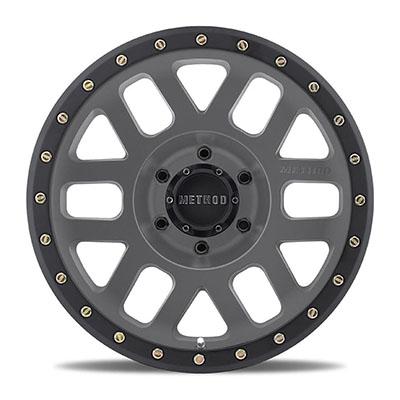

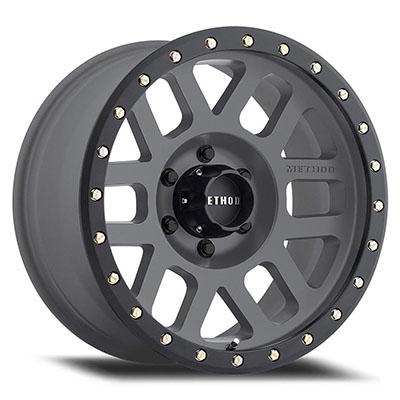

The Method Race Wheels 309 Grid is an 18×9 aluminum off-road wheel with a 5 on 150 bolt pattern and part number MRWMR30989058818. Its mesh face, gray finish in the specifications and Titanium / Black name suit owners who want a bold wheel for a 5 on 150 hub with a 116 center bore.

Method Race Wheels presents its wheels as made for off-road racing, with each design checked through finite element analysis and field testing. The brand’s stated priorities are less weight and greater strength. This 9-inch-wide wheel carries an offset of 18 and backspacing of 5.75, so the mounting face and rear clearance both depend on those figures.

Key features

  • 18-inch diameter and 9-inch width
  • Aluminum construction in a mesh style
  • 5 on 150 bolt pattern with a 116 center bore
  • Offset 18 and backspacing 5.75
  • Gray finish in the specifications, Titanium / Black in the product name
  • Part of the MR309 Grid series
  • Method cites finite element analysis and field testing for its designs

Matching the hub and rings

A wheel’s center bore should match the hub hole, so the wheel centers on the hub rather than on the lug studs. When the bore is larger, hub-centric rings fill the gap and carry the load. Many owners use rings with an aftermarket wheel, while others choose a matching hub. Choose rings made for the exact bore and hub sizes, and install them flush so the wheel seats evenly.

Offset and backspacing also change how the tire sits against suspension parts. Greater backspacing means more room behind the wheel, while a changed offset moves the face in or out. Recheck clearance after any change in tire width, lift height or wheel spacers. Torque lug nuts in a star pattern and check them again after the first few drives.

Specifications

Brand Method Race Wheels
Part number MRWMR30989058818
Series MR309 Grid
Wheel diameter 18 inches
Wheel width 9 inches
Bolt pattern 5 on 150
Center bore 116
Offset 18
Backspacing 5.75
Style Mesh
Finish Gray
Construction Aluminum
Fitment label Universal Fit (manufacturer data)

Vehicle fitment

No vehicle is named for this wheel. Universal Fit is only a label, and a 5 on 150 bolt pattern, 116 center bore and offset of 18 must all match your hub, so the label alone does not establish a match. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 116 center bore is larger than many hubs, so hub-centric rings may be needed if your hub is smaller. Measure the hub before mounting. Match the seat style to your own lug nuts.

What’s included

Only the wheel itself is described: one 18×9 Method 309 Grid wheel, with no tires or hardware named.

Not included: Tires, lug nuts, center caps and hub rings are not included.

SKU: MRWMR30989058818 Categories: ,

Questions & Answers

What bolt pattern and center bore does the Method 309 Grid 18x9 use?

It uses a 5 on 150 bolt pattern with a 116 center bore. Confirm both against your hub. The offset of 18 and backspacing of 5.75 also affect clearance, so check them against your brakes and fenders before you order.

Does this wheel come with a vehicle fitment list?

No. No year, make, model or trim is named for this wheel. Universal Fit applies, so match the 5 on 150 bolt pattern, 116 center bore, offset 18 and backspacing 5.75 to your hub before ordering.

Do I need hub rings for this wheel?

Possibly. The 116 center bore is larger than many hubs, so rings may be needed when the hub is smaller. Measure your hub diameter first to decide.

What finish and construction does the 18x9 wheel have?

It is aluminum in a mesh style with a gray finish in its specifications. The product name also says Titanium / Black. Confirm the exact color with Method Race Wheels if finish is important to your build.

Are wheel spacers a good way to change clearance?

Spacers can move the wheel outward, but they add stress to wheel studs and bearings. Use only spacers designed for the wheel's bolt pattern and center bore, and keep them thin. Recheck torque after installation and inspect the studs often.
