Overview

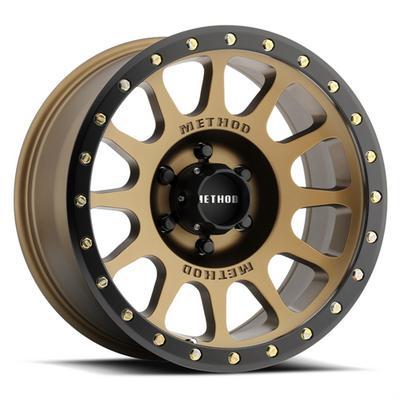

The Method Race Wheels 305 NV HD in 18×9 with an 8 on 170 bolt pattern and a bronze/black finish, part number MRWMR30589087918H, is an 18-inch aluminum windowed wheel from Method’s MR305 NV HD series. It is not tied to a specific vehicle.
The brand builds wheels for off-road racing and engineers each one for its intended use. Designs are checked through finite element analysis and field testing with a goal of less weight and more strength. This wheel suits owners who want an 18-inch aluminum wheel in an 8 on 170 pattern with a 9-inch width.
Key features
- Aluminum construction in a windowed style
- 18-inch diameter and 9-inch width
- 8 on 170 bolt pattern with a center bore of 131
- Bronze/black finish
- Offset of 18 and backspacing of 5.7
- Universal fit.
- Part of the MR305 NV HD series
- Built with finite element analysis and field testing for weight and strength.
Hub fit and clearance planning
An 8 on 170 pattern is a distinct layout and only fits hubs drilled to match. The 131 center bore needs a matching hub or a ring. Check the hub’s pilot diameter and lug seat style before mounting, because seat type decides which nuts are safe to use.
Offset 18 and backspacing 5.7 place the tire relative to the fender and brake parts. A tire with a wider tread or taller sidewall can change that room, so test fit with the planned tire and steering at full lock. Bronze and black finishes can show road grime, so rinse the spokes and inner barrel regularly with a mild cleaner. Inspect lug holes and the bead seat for wear or cracking after rough use.
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR30589087918H |
| Series | MR305 NV HD |
| Diameter | 18 inches |
| Width | 9 inches |
| Bolt pattern | 8 on 170 |
| Center bore | 131 |
| Offset | 18 |
| Backspacing | 5.7 |
| Construction | Aluminum |
| Style | Windowed |
| Finish | Bronze/Black |
| Fitment | Universal fit |
Vehicle fitment
No specific vehicle is named for this wheel, so it is not a vehicle-specific part. Match the 8 on 170 bolt pattern, 131 center bore, 18 offset and 5.7 backspacing to your vehicle’s hub and clearance needs before choosing it.
Universal fit does not confirm clearance for any particular vehicle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Offset and backspacing together set where the wheel sits in the wheel well and how close it comes to brakes and suspension parts. Check that clearance with the tire you plan to run before mounting.
What’s included
Tires, lug nuts and center caps are not confirmed as included. Confirm the contents before fitting.
