Overview

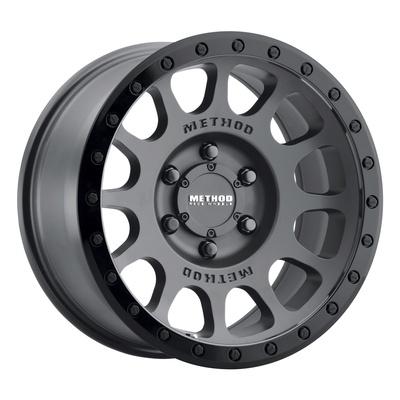

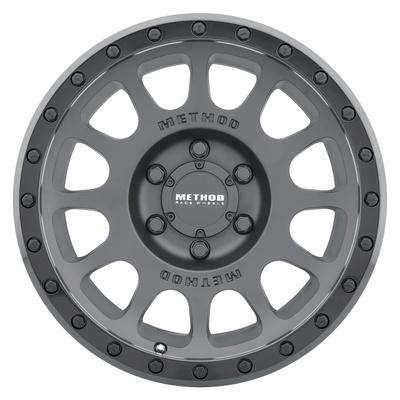

Part MRWMR305785601025 is a windowed aluminum 17 x 8.5 inch wheel from the MR305 NV series with a 6 on 5.5 bolt pattern, finished in matte black with gloss black accents. It is built for off-road racing and developed with finite element analysis and field testing.
An offset of 25 and a backspacing of 5.7 set where the wheel sits relative to the hub and fender. The entry gives universal fit, so no specific vehicle is named and the hub dimensions must be checked before mounting.
Key features
- Windowed design in a 17×8.5 inch aluminum wheel
- 6 on 5.5 bolt pattern
- Center bore of 108
- Offset of 25 and backspacing of 5.7
- Matte black and gloss black finish
- MR305 NV series
Two-tone finishes and wear
A two-tone wheel with matte and gloss sections shows wear differently across its surfaces. Gloss areas tend to reveal scratches and brake dust more clearly, while matte areas can hold grime in their texture. Both need gentle cleaning, and harsh polishing on the matte sections can leave shiny spots that change the look.
When choosing this type of finish, consider how the wheel will be cleaned and where it will be stored or used. Mud-heavy trails tend to leave more residue, so a quick rinse after each outing helps. Inspect the bead seat and spoke edges for chips, since paint damage there is an early sign of impact.
- Rinse mud off after each outing
- Avoid polishing matte sections
- Check spoke edges for chips after trail use
- Touch up gloss areas before rust forms
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR305785601025 |
| Series | MR305 NV |
| Style | Windowed |
| Construction | Aluminum |
| Finish | Matte black / gloss black |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | 25 |
| Backspacing | 5.7 |
| Fitment | Universal fit |
Vehicle fitment
Method Race Wheels lists universal fit for this 6 on 5.5 wheel, so it is not built for one vehicle. Match the bolt pattern, the 108 center bore and the 25 offset to your hub and check clearance before mounting.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The wheel is the item described. Tires are not part of it and must be added separately.
