Overview

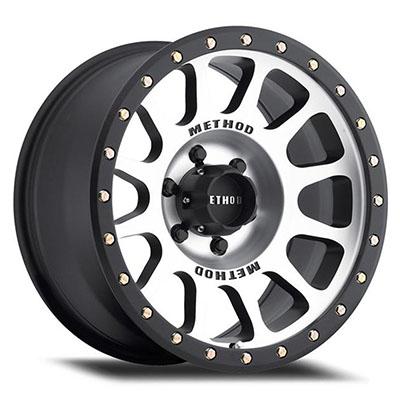

The Method Race Wheels 305 NV 17×8.5 with a 5 on 150 bolt pattern, part number MRWMR30578558300, is a 17-inch aluminum wheel that is 8.5 inches wide. It has a windowed face with a machined finish and matte black, a 116 center bore, an offset of 0 and a backspacing of 4.75.
Each design is engineered for its intended use, with finite element analysis and field testing used to reduce weight and increase strength. Street wheels in this line come in Diamond Cut / Clear or Matte Black.
Key features
- Windowed design with machined and matte black finish
- Aluminum build in a 17-inch by 8.5-inch size
- Five-lug 5 on 150 bolt pattern
- Center bore 116 and offset 0
- Backspacing of 4.75
- Part of the MR305 NV series from Method Race Wheels
Choosing wheel clearance
Wheel clearance is shaped by more than diameter and width. Backspacing and offset determine where the wheel sits relative to the hub, and that position decides how close the inner lip comes to brake calipers, control arms and the inside of the fender. A deep-dish or wide wheel can rub under compression or on full steering lock even when the bolt pattern matches exactly. Measure the space behind the spokes before buying tires, and recheck it after any suspension change.
Tire choice matters as much as the wheel. Sidewall height, overall diameter and tread width all change how much room the tire needs. Lift kits, wheel spacers and larger tires often change clearance enough to require a new check. Lug hardware should match the seat type of the wheel, since a mismatched nut can loosen under trail vibration.
- Check caliper clearance at full lock
- Recheck clearance after lifts or larger tires
- Match lug seat style to the wheel
- Torque lug nuts to the vehicle’s specification
Specifications
| Brand | Method Race Wheels |
|---|---|
| Series | MR305 NV |
| Part number | MRWMR30578558300 |
| Diameter | 17 inches |
| Width | 8.5 inches |
| Bolt pattern | 5 on 150 |
| Center bore | 116 |
| Offset | 0 |
| Backspacing | 4.75 |
| Style | Windowed |
| Finish | Machined / Matte Black |
| Construction | Aluminum |
Vehicle fitment
No vehicle is named for this wheel because it is a universal fit design. Match the 5 on 150 bolt pattern, 116 center bore and 8.5-inch width to your hub and clearance first.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the 116 center bore against the hub before mounting. With a 4.75 backspacing on a 17-inch wheel, confirm brake caliper and suspension clearance before the wheel goes on.
What’s included
The entry describes one wheel only. Tires and lug hardware are outside it and must be obtained separately.
