Overview

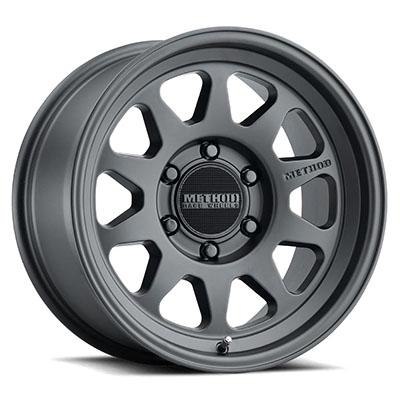

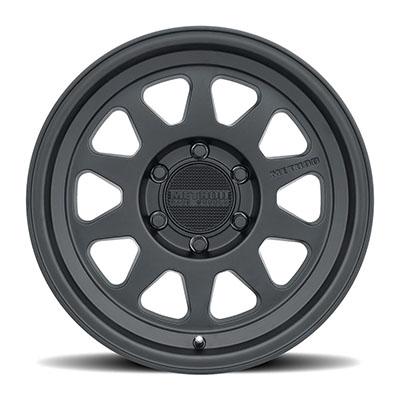

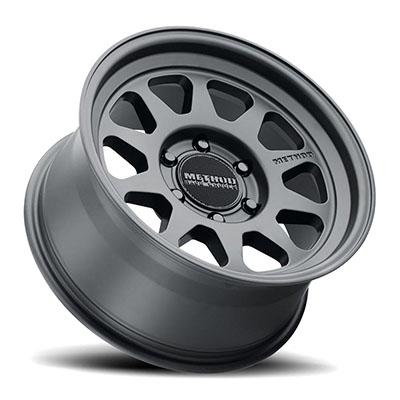

The matte black Method Race Wheels MR316, sized 17×8.5, is an aluminum spoke wheel with a 6 on 135 bolt pattern and part number MRWMR31678516500. Listed figures include an 87 center bore, 0 offset and 4.75 backspacing.
The Method Race Wheels line was created for off-road racing, and the MR316 was developed for its intended use. Finite Element Analysis studies and field testing shaped the design, with the goal of combining lower weight and greater strength.
Key features
- Matte black spoke design
- Aluminum, 17 inches by 8.5 inches
- 6 on 135 bolt pattern with an 87 center bore
- Offset 0, backspacing 4.75
- Numerous Finite Element Analysis studies and field tests noted by the brand
- MR316 series
Measuring your hub
A wheel’s center bore should match the hub’s pilot diameter, and bolt pattern alone does not confirm that match. Use a caliper to measure the hub, then compare the reading with the bore. Lug-centric wheels depend on the lug nuts for centering, which is less precise, so a hub-centric match is generally the better fit when it is available.
Finite Element Analysis and field testing shaped the design, but they do not confirm fit for any particular vehicle. Compare offset and backspacing with your brakes and suspension, since those dimensions decide how the tire sits. Matte black finishes show marks more readily, so clean the wheel regularly.
- Measure hub pilot diameter
- Compare offset with brake clearance
- Torque lug nuts evenly after mounting
- Wipe the matte finish with a soft cloth
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR31678516500 |
| Series | MR316 |
| Style | Spoke |
| Finish | Matte Black |
| Construction | Aluminum |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 6 on 135 |
| Center bore | 87 |
| Offset | 0 |
| Backspacing | 4.75 |
| Fitment | Universal Fit |
Vehicle fitment
No vehicle is named for this 6 on 135 wheel. Check the bolt pattern, center bore, offset and backspacing against the vehicle you plan to use before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Match the 6 on 135 bolt pattern and 87 center bore to your hub before mounting the matte black wheel.
What’s included
Check the package contents against your installation before starting.
Not included: Tires must be arranged separately.
