Method Race Wheels 702 Series, 17x8.5 with 5 on 5 Bolt Pattern – Bronze – MR70278550900

Method Race Wheels

Shop Method Race Wheels 17x8.5 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17×8.5 aluminum wheel, 5 on 5 bolt pattern
  • MR702 Bead Grip series in bronze
  • Offset 0, center bore 72, backspacing 4.75
  • Vehicles not named

Description

Overview

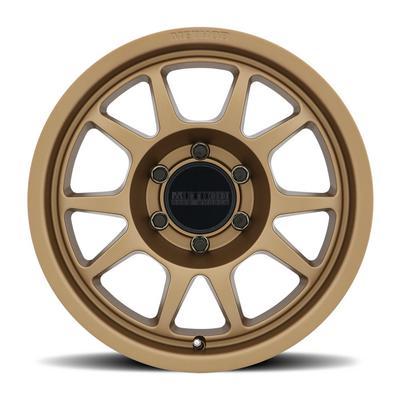

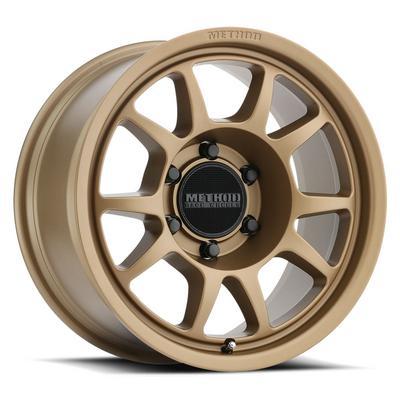

The Method Race Wheels MR70278550900 is a bronze 17×8.5 aluminum wheel from the 702 Series with a 5 on 5 bolt pattern.

Method Race Wheels was created to offer the off-road racing community wheels made for the sport. The company says its wheels are engineered with Finite Element Analysis and field tests and developed to minimize weight and increase strength.

This MR702 Bead Grip wheel is a spoke style in a bronze finish, with a 0 offset, a 72 center bore and 4.75 backspacing. It is a universal fit wheel, so it is matched to vehicles by bolt pattern and clearance rather than by model.

The wheel belongs to the MR702 series, a Bead Grip design in bronze with aluminum construction and a spoke style.

Check the weight, load rating and measurement units for offset, center bore and backspacing against your installation before ordering.

Method also says its street wheels are available in a Diamond Cut and Clear finish or a Matte Black finish, while this wheel is listed in bronze.

Key features

  • 17 inch diameter and 8.5 inch width
  • 5 on 5 bolt pattern
  • Aluminum construction
  • MR702 Bead Grip series
  • Spoke style in a bronze finish
  • Offset 0, center bore 72, backspacing 4.75

Choosing a spoke wheel

Spoke wheels carry their load through the spokes and the hub, so how the spokes meet the center section matters as much as overall size. On the trail, a wheel that resists flex under side loads keeps the tire steadier over uneven ground. Bead grip designs also rely on the tire seating correctly on the rim before air pressure is lowered, so mounting work deserves care.

When comparing wheels, look at offset and backspacing alongside the wheel width. Small changes move the wheel in or out of the fender and can affect brake and suspension clearance. Lug seat type and hub fit are worth checking before the first drive, since a mismatch often shows up as vibration that feels like a balance problem.

  • Measure caliper clearance with the tire mounted
  • Inspect spokes and welds for cracks after hard runs
  • Check tire pressure before each outing
  • Confirm lug seat type matches the wheel

Specifications

Brand Method Race Wheels
Part number MR70278550900
Product type Wheel
Series MR702 Bead Grip
Wheel diameter 17 inches
Wheel width 8.5 inches
Bolt pattern 5 on 5
Offset 0
Center bore 72
Backspacing 4.75
Style Spoke
Finish Bronze
Construction Aluminum
Fitment type Universal fit wheel for vehicles with a matching 5 on 5 bolt pattern.

Vehicle fitment

This is a universal fit wheel with a 5 on 5 bolt pattern. Confirm fit for your vehicle’s year, model and trim before ordering.

Bolt pattern, offset, center bore and brake clearance must suit your vehicle, so a vehicle with a different bolt pattern is not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

  • Tighten the lug nuts in a star pattern to the vehicle’s torque figure and re-torque them after the first drive.
  • Check clearance to brakes, suspension and fenders with the wheels and tires installed, and have a professional mount and balance tires.
  • Confirm load rating and size suit your vehicle.
SKU: MRWMR70278550900 Categories: ,

Questions & Answers

What bolt pattern is the Method MR70278550900?

The Method MR70278550900 has a 5 on 5 bolt pattern. It is a 17x8.5 wheel with a 0 offset, a 72 center bore and 4.75 backspacing.

What size is the Method 702 wheel MR70278550900?

The wheel is 17 inches in diameter and 8.5 inches wide, with a center bore of 72 and 4.75 backspacing.

What is the Method MR70278550900 made of?

It has aluminum construction in a bronze finish, and belongs to the MR702 Bead Grip series with a spoke style.

How often should spoke wheels be inspected?

Inspect them after every hard trail outing and again before long trips. Look at the spoke bases, weld areas and bead seats for cracks, bends or slow air loss, and check lug nut torque at the same time.
