Overview

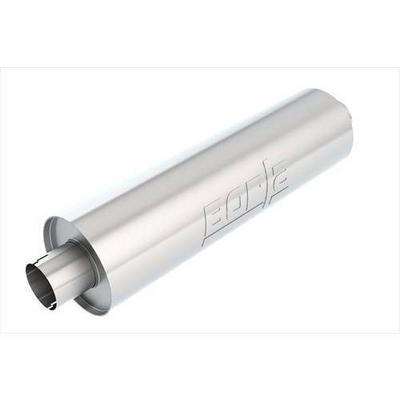

The Borla Heavy Duty Truck muffler, part number 400500, is a straight-through stainless steel muffler with 3-inch inlet and outlet tubes, both centered. Straight-through construction moves exhaust along a direct path, a common choice for larger-diameter truck systems.
It is a universal fit, so no truck make, model or year is attached. The 3-inch tubes must suit your truck’s exhaust pipe before the muffler is fitted.
Key features
- Straight-through design for heavy-duty truck exhaust
- Stainless steel construction
- 3-inch inlet and 3-inch outlet
- Centered inlet and outlet
Truck exhaust and larger tubes
Larger-diameter tubes move more exhaust volume than smaller ones. Keep the whole run consistent, since a sudden change in diameter can cause turbulence and joints that are hard to clamp. Measure the pipe carefully at both ends and check the hangers before cutting, because the muffler body needs room to sit clear of the frame, axles and fuel lines.
Heavy trucks see more vibration and axle movement, so hangers and clamps take more stress than on a passenger car. Use hangers suited to the weight of the muffler and check for rubbing at every flex point. A straight-through muffler is usually louder under load, so review local noise rules before installing. Inspect the welds and clamps after the first week of driving.
- Keep the diameter consistent along the run
- Use hangers suited to heavier mufflers
Specifications
| Brand | Borla |
|---|---|
| Part number | 400500 (BOR400500) |
| Material | Stainless steel |
| Muffler type | Straight through |
| Inlet location | Centered |
| Outlet location | Centered |
| Tube size (inlet/outlet) | 3 in / 3 in |
| Fitment | Universal Fit |
Vehicle fitment
It is a universal fit and no truck make, model or year is attached. Fitment depends on the 3-inch tubes matching your existing exhaust.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure your existing pipe diameter first; a 3-inch muffler on a different-sized pipe needs reducers or a new section of pipe.
What’s included
Check the package for accessories against your install plan before starting.
