Overview

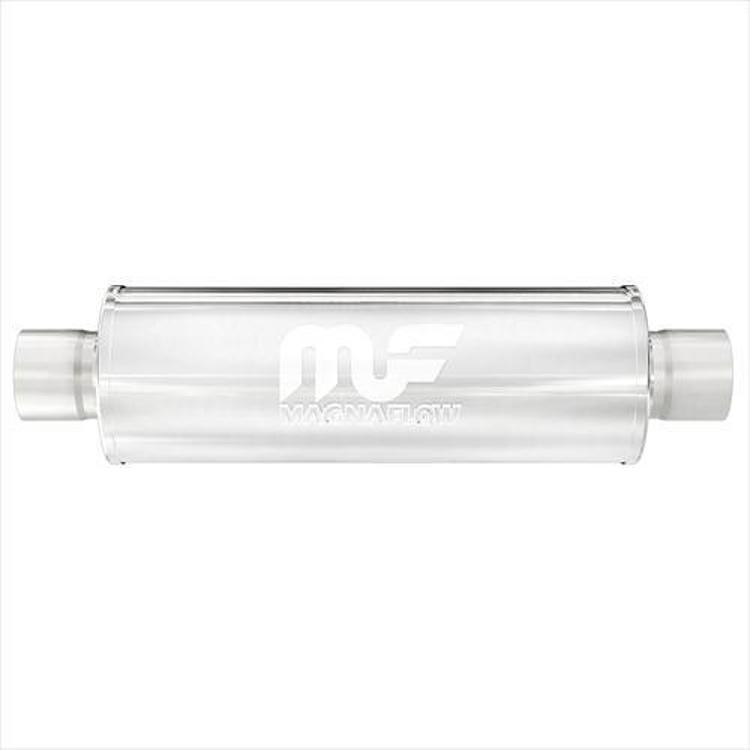

The MagnaFlow 14156 is a Race Series straight-through muffler with 2.5-inch tubes and a stainless steel body, built for high performance vehicles. Many racing venues require sound dampening, and this muffler is designed to lower DB levels without any loss in performance.
It is a wide open performance design with a stainless steel body, end caps, perforated core and a stainless weld bead. MagnaFlow files it as universal fit, so the 2.5-inch tube size and centered inlet and outlet are the points to check against your exhaust.
Key features
- Wide open straight-through performance design
- Stainless steel body and end caps
- Perforated stainless core
- Stainless weld bead
- 2.5-inch inlet and 2.5-inch outlet tubes
- Centered inlet and centered outlet
Race use and sound rules
Race-oriented mufflers are built to reduce restriction, which matters most when the engine is working hard at high rpm. A straight-through design can be louder at idle and on the street, so check the sound rules at each venue before arriving. Stainless construction holds up well under heat cycling, but the welds and end caps still need periodic inspection.
A muffler is usually one part of a complete exhaust, and changes to tubing, headers or the catalytic section can shift how the system sounds and flows. Match the 2.5-inch tube run and keep the outlet clear of bodywork so heat and exhaust do not damage paint or wiring. After a track day, let the system cool before checking hangers and clamps.
- Confirm local and venue sound limits
- Check end caps and welds for heat cracks
- Re-torque clamps after the first few runs
Specifications
| Brand | MagnaFlow Exhaust |
|---|---|
| Part number | 14156 |
| UPC | 841380028273 |
| Muffler type | Straight through |
| Material | Stainless steel |
| Tube size (inlet/outlet) | 2.5 inches / 2.5 inches |
| Inlet location | Centered |
| Outlet location | Centered |
| Product line | Race Series |
| Fitment | Universal fit |
Vehicle fitment
No year, make, model or trim is attached to this muffler. Universal fit means the 2.5-inch tube diameter and your exhaust layout decide compatibility.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the sound rules of any event you plan to enter, because MagnaFlow says many venues now set DB limits. Let the exhaust cool and support the car on stands before working underneath.
What’s included
Check the package contents against your installation before starting, including clamps, hangers and gaskets.
