Overview

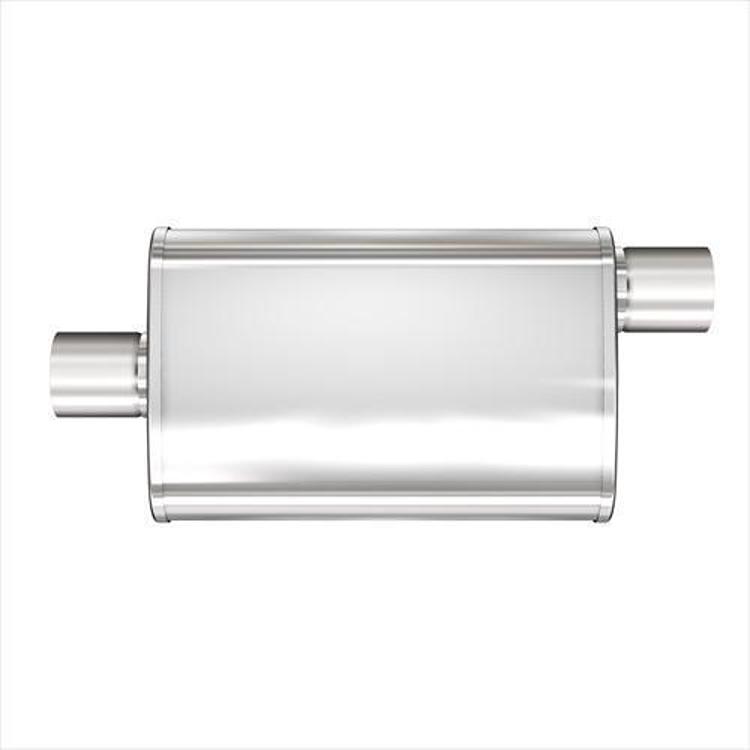

The MagnaFlow 13214 is an XL 3 Chamber muffler with 2-inch tubes and an offset inlet. It is a universal fit part, so it is not tied to a specific year, make, model or trim. Large diameter perforated tubing and sound baffles reduce unwanted resonance and are designed to help the engine make horsepower.
Calibrated tuning gate openings let parts of the sound waves pass through. The large perforated core avoids the flow restriction of a louvered core. The body is either stainless steel or aluminized steel, so confirm the material before fitting.
Key features
- Large diameter perforated tubing
- Sound baffles with calibrated tuning gate openings
- Large core without louvered flow restriction
- Chambered design aimed at reducing resonance
- 2-inch inlet and 2-inch outlet tubes
- Offset inlet with centered outlet
Tone and drone considerations
A chambered muffler routes exhaust through internal chambers and baffles, so the tone is shaped by the layout of those chambers rather than by a single part. Most owners notice that a chambered design gives a deeper note at idle and less drone on the highway, although the exact sound depends on the rest of the exhaust and the engine. Changing the muffler alone rarely cures a drone problem that comes from a resonator or a long pipe run, so consider the whole system before buying.
Exhaust hangers, clamps and gaskets are often replaced at the same time as the muffler. Worn hangers let the body knock against the chassis, which can sound like a muffler fault. When the exhaust is off the car, check the shell and joints for rust or cracks and look at the heat shields for loose fasteners.
- Check hangers for cracks and rust
- Replace gaskets at every opened joint
- Tighten heat shield fasteners after the first drive
Specifications
| Brand | MagnaFlow Exhaust |
|---|---|
| Part number | 13214 |
| UPC | 841380001450 |
| Muffler type | Chambered (XL 3 Chamber) |
| Material | |
| Tube size (inlet/outlet) | 2 inches / 2 inches |
| Inlet location | Offset |
| Outlet location | Centered |
| Fitment | Universal fit |
Vehicle fitment
MagnaFlow files this as universal fit, so it is not tied to a particular year, make, model or trim. Measure where your pipes sit against the offset inlet and the 2-inch tube size before fitting.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The offset inlet means the body will not sit square to a centered pipe, so check the routing before you fit it. Let the exhaust cool and support the car on stands before working underneath.
What’s included
Check the package contents for clamps, hangers and gaskets against your installation before starting.
